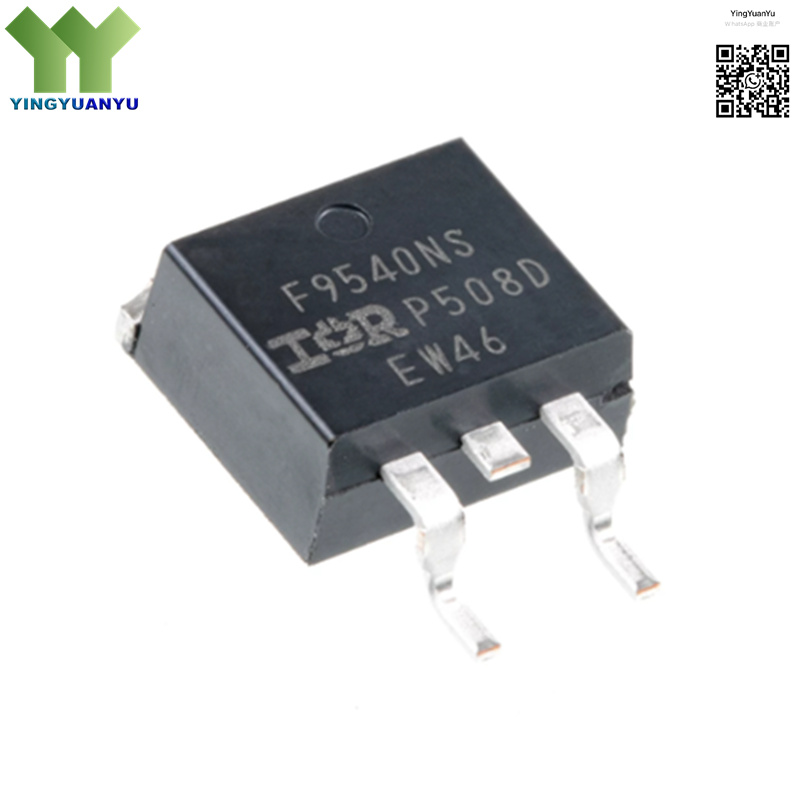

IRF9540NSTRLPBF
IRF9540NSTRLPBF
| Part Number | IRF9540NSTRLPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | 100V 23A P-Channel HEXFET Power MOSFET, Low Rds(on), D2PAK Surface Mount Package, Lead-Free |
Product Overview
The IRF9540NSTRLPBF is a high-performance P-channel HEXFET power MOSFET developed by Infineon Technologies. Featuring low on-state resistance, low gate charge, and fast switching speed, this device delivers superior power efficiency and minimal power loss during operation. It supports a maximum drain-source voltage of 100V and continuous drain current up to 23A, providing excellent power handling capability and stable switching performance. Packaged in a compact D2PAK surface-mount housing with robust thermal dissipation, it is ideal for high-current switching, voltage regulation, and industrial power conversion applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | D2PAK (TO-263-3) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | F9540NS |
| Drain-Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Id) | 23 A |
| On-State Resistance (Rds(on)) | 0.117 Ω |
| Power Dissipation (Pd) | 110 W |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High Current Power Switching Circuits
- DC-DC Power Converters & Regulators
- Motor Drive & Control Systems
- Battery Management & Protection Modules
- Industrial Power Supply Equipment
- Automotive Electronic Control Units
- Load Switching & Power Distribution
- Consumer Electronic Power Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
