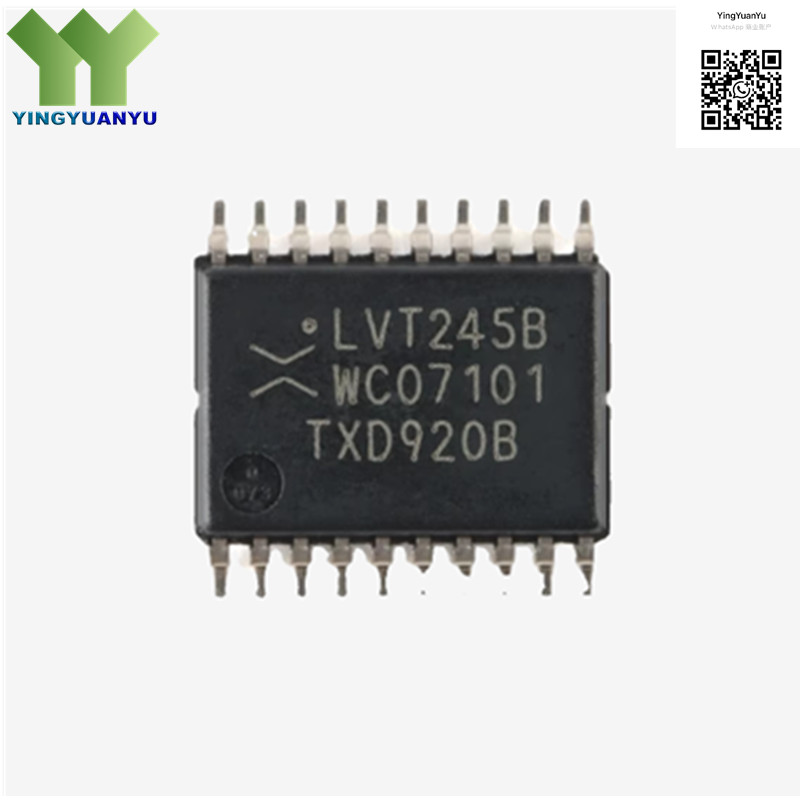

74LVT245BPW
74LVT245BPW
| Part Number | 74LVT245BPW |
|---|---|
| Manufacturer | Nexperia |
| Category | Integrated Circuits (ICs) > Logic > Buffers, Drivers, Transceivers |
| Description | IC TRANSCEIVER NON-INVERT 5.5V 20TSSOP |
Product Overview
The 74LVT245BPW is an octal non-inverting bus transceiver with 3-state outputs, designed for low-voltage high-speed digital applications. It utilizes advanced CMOS technology to provide high-speed operation while maintaining low power dissipation, and supports wide voltage compatibility with TTL and CMOS logic levels. The device features independent direction control and output enable functions, making it suitable for bidirectional data bus buffering and signal driving in digital systems.
| Specifications | Details |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Brand | Nexperia |
| Number of Bits | 8 Bits |
| Voltage – Supply | 2.7V ~ 3.6V |
| Logic Type | Non-Inverting Bus Transceiver, 3-State Outputs |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173″, 4.40mm Width) |
| Features | High-Speed, Low Power, TTL/CMOS Compatible |
Typical Applications
- Digital Data Communication Systems
- Microcontroller Bus Interfaces
- Portable Electronic Devices
- Industrial Control Modules
- Computer Peripherals
- Consumer Electronics
- High-Speed Digital Circuits
- Embedded Control Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
