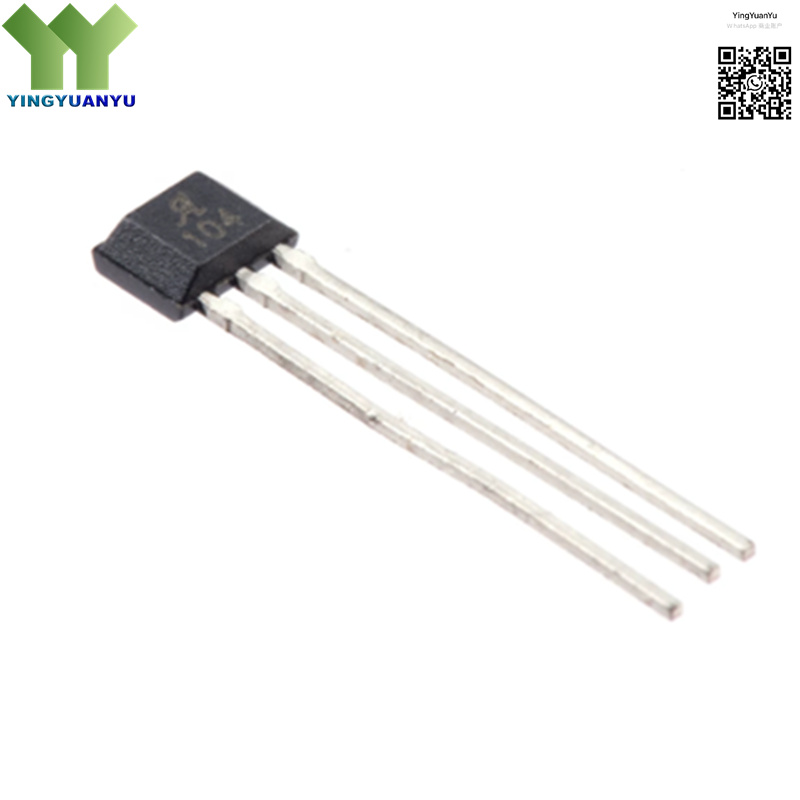

A1104EUA-T
A1104EUA-T
| Part Number | A1104EUA-T |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Category | Magnetic Sensors; Unipolar Hall Effect Sensor IC |
| Description | Unipolar Hall Effect Switch, 3.0V to 24V, Open Drain Output, SIP-3 Package |
Product Overview
The A1104EUA-T is a high-temperature, unipolar Hall effect sensor IC designed for non-contact magnetic switching applications. It integrates a Hall sensing element, voltage regulator, and open-drain output driver in a compact SIP-3 package. The device operates over a wide voltage range, offers stable magnetic switch points, high temperature stability, and robust ESD protection. Ideal for position sensing, speed detection, and proximity switching in automotive, industrial, and consumer electronics.
| Key Specifications | |
|---|---|
| Brand | Allegro MicroSystems |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SIP-3 |
| Mounting Type | SIP |
| Surface Marking / Silkscreen | 104 |
| Supply Voltage | 3.0 V ~ 24 V |
| Output Type | Open Drain |
| Sensor Type | Unipolar Hall Effect Switch |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Position and Limit Sensing
- Motor Speed and Direction Detection
- Proximity and Contactless Switching
- Automotive Door and Window Control
- Industrial Automation and Robotics
- Consumer Electronics and Home Appliances
- Encoder and Flow Meter Sensors
- Security and Locking Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
