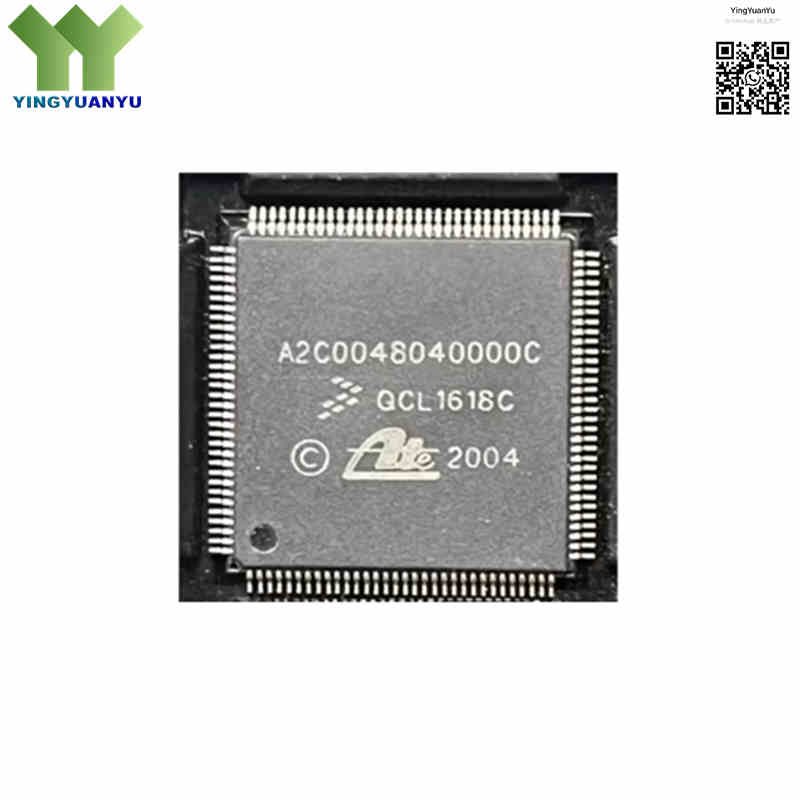

A2C0048040000C
A2C0048040000C
| Part Number | A2C0048040000C |
|---|---|
| Manufacturer | Freescale (NXP, Former Freescale) |
| Category | Integrated Circuits (ICs) > Automotive ICs > Automotive ASIC |
| Description | Automotive ABS/ESP ECU Communication & Driver ASIC, TQFP-128 Package, widely used for vehicle control board maintenance replacement. |
| Stock Status | In Stock |
| Origin | Original |
Product Overview
A2C0048040000C is an automotive dedicated ASIC originally designed by Freescale(NXP). A2Cxxxx stands for Continental internal marking code, and no official public datasheet is available. This chip is installed inside automotive ABS and ESP control units and acts as the core communication and driving chip. All parameters are summarized from chip disassembly testing and supply chain data. It is widely used for repairing faulty brake control modules of Volkswagen series vehicles.
Core Advantages
Vehicle-Grade Stable Performance
Covers wide temperature range from -50°C to +130°C, supporting stable long-term operation inside vehicle engine compartments.
Professional ABS/ESP ECU Matching
Tailored for automotive brake ECU, built-in communication and driver circuits to process control signal transmission.
Direct Maintenance Replacement
Standard TQFP-128 package with unified pin definition, capable of directly replacing the broken original chip on control boards.
Strong Anti-Interference Performance
Optimized internal circuit design improves immunity to vehicle electromagnetic interference and ensures stable communication.
Key Specifications
| Brand | Freescale (NXP / Former Freescale) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | TQFP-128 (LQFP-128, consistent physical dimension) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Outline Dimension | 9.9mm × 3.7mm × 2.7mm |
| Surface Marking / Silkscreen | A2C0048040000C Marking |
| Function | Automotive ABS/ESP ECU Communication & Driver ASIC |
| Operating Supply Voltage | 1.5 V ~ 6.5 V |
| Communication Interface | Internal CAN & logic communication |
| Operating Temperature Range | -50°C ~ +130°C (Automotive Grade) |
| Packaging Format | Tray / Tape & Reel |
Typical Applications
- Automotive ABS / ESP brake control unit
- Volkswagen series automobile brake ECU maintenance repair
- Vehicle electronic control board signal communication drive circuit
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For pin definition, stock check, bulk price inquiry, please submit the inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is A2C0048040000C Continental original chip?
A: A2C0048040000C is Continental internal marking number. The original chip manufacturer is Freescale (NXP). No official public datasheet is available for this internal part number; all parameters are summarized from vehicle disassembly tests.
Q2: Can I use other chips to replace A2C0048040000C directly?
A: Only the identical part number A2C0048040000C supports direct replacement. Other similar TQFP128 automotive chips cannot be interchanged blindly. Incorrect replacement may cause communication failure or permanent ECU damage.
Q3: What vehicle models does this chip fit?
A: Widely applied on Volkswagen, Skoda, Seat partial models ABS/ESP brake ECU repair. Compatibility depends on the ECU board number rather than vehicle model. Please check your board code before purchase.
Q4: What is the difference between A2C0048040000C and ordinary automotive power driver IC?
A: A2C0048040000C is a dedicated ASIC for ABS communication with operating voltage of 1.5~6.5V. Common automotive power driver ICs usually support 6~28V battery voltage. These two chip types cannot be substituted for each other.
Q5: Are TQFP-128 and LQFP-128 packages compatible for this component?
A: Yes. For A2C0048040000C, TQFP-128 and LQFP-128 refer to the same package, sharing identical footprint and dimensions, and are weld-compatible.
Q6: Can you provide the chip pinout diagram?
A: We can offer collected pin definition reference upon inquiry. The official manufacturer does not release complete datasheets or formal pinout documents.
