ACPL-332J-500E
ACPL-332J-500E
| Part Number | ACPL-332J-500E |
|---|---|
| Manufacturer | Broadcom (Avago) |
| Category | Optocouplers; Gate Drive Optocouplers, Isolated Gate Drivers |

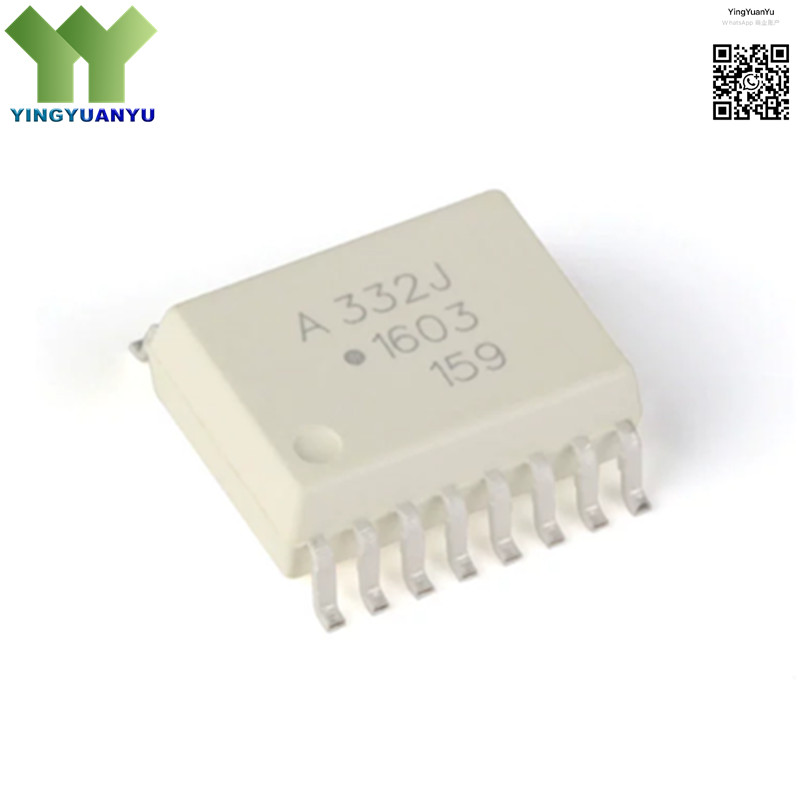

| Description | 2.5A Output Current IGBT Gate Drive Optocoupler, 5kV Isolation, SO-16 Package |
Product Overview
The ACPL-332J-500E is a high-performance, optically isolated IGBT/MOSFET gate drive optocoupler designed for high-power industrial and power conversion applications. It provides 5000 Vrms of galvanic isolation, delivers up to 2.5A peak output current for direct driving of power switches, and features integrated under-voltage lockout (UVLO) with hysteresis for safe operation. The device offers high common-mode transient immunity (CMTI), fast switching speed, and wide operating voltage range, making it ideal for driving IGBTs and MOSFETs in inverters, motor drives, and power supplies. With robust isolation and industrial-grade reliability, it ensures stable performance in high-noise environments. Housed in a SO-16 surface-mount package, it supports compact power electronics designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Broadcom (Avago) |
| Isolation Voltage | 5000 Vrms |
| Output Current | 2.5A Peak |
| Package Type | SO-16 |
| Operating Temperature | -40°C to +105°C |
Typical Applications
- IGBT and Power MOSFET Gate Drive
- Motor Drives and Inverters
- Switch Mode Power Supplies (SMPS)
- Industrial Power Conversion Systems
- Uninterruptible Power Supplies (UPS)
- High-Voltage Isolated Control Circuits
- Renewable Energy Inverters
- Isolated Power Electronics Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
