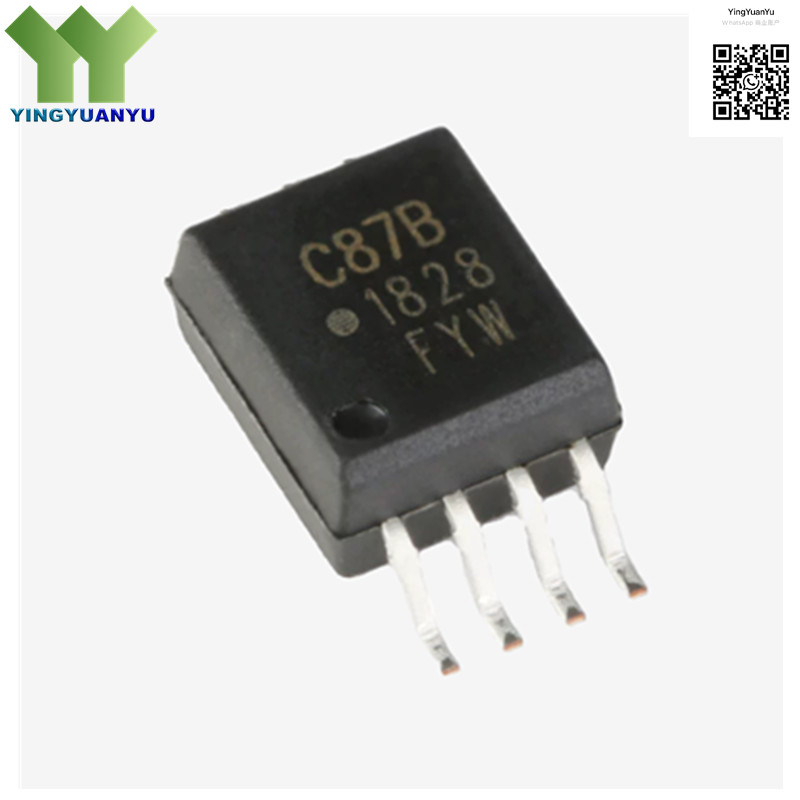

ACPL-C87B-500E
ACPL-C87B-500E
| Part Number | ACPL-C87B-500E |
|---|---|
| Manufacturer | Broadcom (Avago) |
| Category | Optocouplers; Isolated Sigma-Delta ADC Isolators |
| Description | 16-Bit Isolated Sigma-Delta ADC Optocoupler, 5kV Isolation, SO-8 Package |
Product Overview
The ACPL-C87B-500E is a high-precision optically isolated sigma-delta analog-to-digital converter designed for current/voltage sensing in industrial inverters, power supplies, and motor control systems. It integrates a high-performance 16-bit sigma-delta ADC, precision voltage reference, and 5000Vrms galvanic isolation in a single compact package, delivering accurate isolated signal measurement with excellent noise immunity and linearity. The device features high common-mode transient immunity (CMTI), low offset drift, wide operating voltage, and stable performance over temperature extremes, making it ideal for high-voltage power electronics and industrial automation applications. Housed in a SO-8 surface-mount package, it enables compact, reliable isolated sensing designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Broadcom (Avago) |
| Isolation Voltage | 5000 Vrms |
| Resolution | 16-Bit Sigma-Delta ADC |
| Package Type | SO-8 |
| Operating Temperature | -40°C to +105°C |
Typical Applications
- Isolated Current & Voltage Sensing
- Industrial Inverters & Motor Drives
- Switch Mode Power Supplies (SMPS)
- Uninterruptible Power Supplies (UPS)
- Renewable Energy Inverters
- High-Voltage Isolated Data Acquisition
- Power Factor Correction (PFC) Systems
- Industrial Automation & Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
