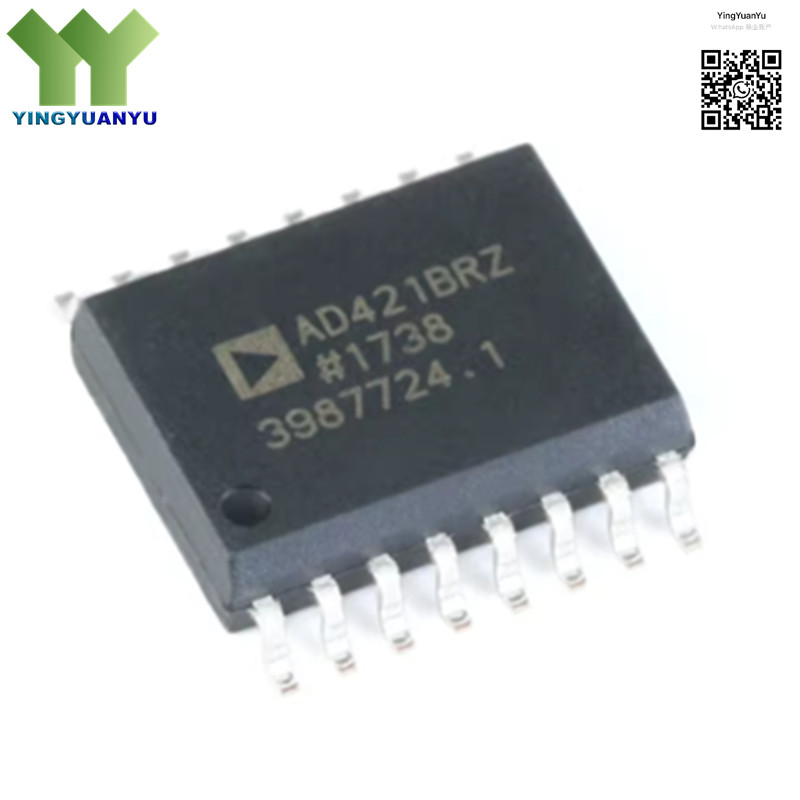

AD421BRZRL
AD421BRZRL
| Part Number | AD421BRZRL |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Category | Integrated Circuits (ICs) > Data Acquisition > Digital to Analog Converters (DAC) |
| Description | IC DAC 16BIT LOOP POWERED 16SOIC |
Product Overview
The AD421BRZRL is a high-performance, 16-bit digital-to-analog converter (DAC) designed for loop-powered 4-20mA industrial process control applications. It integrates a low-drift voltage reference, a high-linearity DAC, and a precision output amplifier, delivering accurate current loop control with exceptional stability and reliability. The device operates directly from the 4-20mA current loop, requires minimal external components, and supports HART communication protocols for industrial field instrumentation.
| Specifications | Details |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Brand | Analog Devices |
| Resolution | 16 Bits |
| Output Type | 4-20mA Current Loop |
| Voltage – Supply | Loop Powered (3.0V ~ 5.5V) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154″, 3.90mm Width) |
| Features | HART Protocol Compatible, Low Power, High Stability |
Typical Applications
- 4-20mA Process Control Instruments
- Industrial Field Transmitters
- HART Communication Systems
- Loop-Powered Sensors
- Process Automation Equipment
- Industrial Control Systems
- Smart Sensor Interfaces
- Precision Current Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
