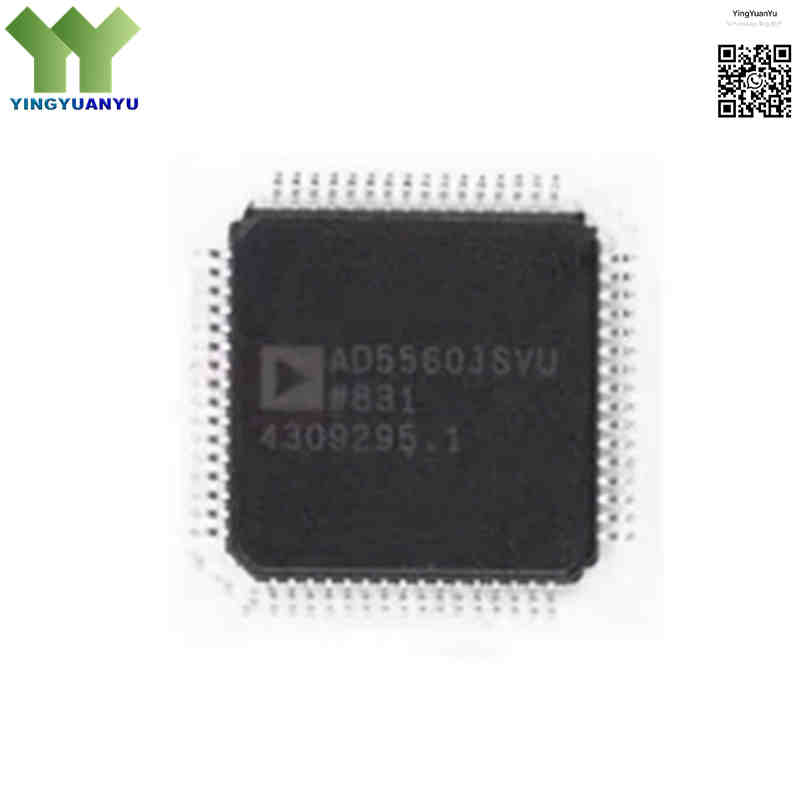

AD5560JSVUZ-REEL
AD5560JSVUZ-REEL
| Part Number | AD5560JSVUZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – PMU (Parametric Measurement Unit) / Pin Electronics |
| Description | Single‑Channel High‑Precision Parametric Measurement Unit (PMU / DPS) with Multi‑Group 16‑bit Setting DACs, 64‑Lead TQFP_EP Package, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD5560JSVUZ‑REEL is a single‑channel Parametric Measurement Unit (PMU/DPS) from ADI, designed for ATE and semiconductor test systems. It integrates multiple 16‑bit setting DACs to support force‑voltage / measure‑current and force‑current / measure‑voltage functions. Supplied in 64‑TQFP‑EP tape‑and‑reel package, it delivers wide voltage‑current range for precision component characterization.
Core Advantages
Integrated PMU Function
Supports FVMI / FIMV working modes, reduces external peripheral components and board‑level design complexity.
Wide Voltage‑Current Dynamic Range
‑22 V ~ +25 V force voltage, multi‑range current from microampere up to 1.2 A for diverse semiconductor characterization tasks.
On‑Chip Protection & Calibration
Equipped with temperature sensor, fault alarm and calibration registers to guarantee stable and reliable automated‑test operation.
High‑Speed Interface & SMT‑Friendly Package
50 MHz SPI compatible digital interface; 64‑TQFP‑EP package provides excellent thermal dissipation, tape‑and‑reel format fits mass SMT production.
Key Specifications
Specified Operating Junction Temperature25°C ~ +90°C (Electrical performance guaranteed)
Specified Operating Junction Temperature25°C ~ +90°C (Electrical performance guaranteed)
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free, ECCN: EAR99 |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 64‑TQFP (10×10 mm) |
| Packaging Type | Tape & Reel (TR) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | AD5560JSVUZ / ADI Logo |
| Function | Parametric Measurement Unit (PMU / DPS) / Pin Electronics |
| Number of Channels | 1 Channel |
| DAC Resolution | 16‑Bit Multiple Setting DACs |
| Supply Voltage (VDD/VSS) | 8 V ~ 28 V |
| Force Voltage Range | ‑22 V ~ +25 V (25 V total span, subject to supply headroom) |
| Force / Measure Current Ranges | Internal: ±5 μA, ±25 μA, ±250 μA, ±2.5 mA, ±25 mA; External: EXTFORCE1 ≤±1.2 A, EXTFORCE2 ≤±500 mA |
| Slew Rate | 0.3 V/μs ~ 1 V/μs Programmable |
| Digital Interface | SPI / QSPI / MICROWIRE / DSP‑Compatible, Max Clock 50 MHz |
| Specified Operating Junction Temperature | 25°C ~ +90°C (Electrical performance guaranteed) |
| Storage Temperature Range | -65°C ~ +125°C (Non‑operating) |
| Max Power Dissipation | Approx 10 W (Subject to assembly and heat‑sink conditions) |
Typical Applications
- Automated Test Equipment (ATE) Pin Electronics and Semiconductor Parametric Testing
- Component Characterization and Wafer‑Level Circuit Testing
- Precision Instrumentation, Voltage/Current Source‑Measure Units (SMU)
- Factory Automation and Industrial Quality Control Systems
- Multi‑Channel Device Validation and Precision Test Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the function of AD5560JSVUZ‑REEL?
A: It is a single‑channel PMU/DPS for ATE test systems, supporting FVMI and FIMV modes for voltage‑current forcing and measurement.
Q2: What is the difference between AD5560JSVUZ and AD5560JSVUZ‑REEL?
A: Electrical specs are identical. AD5560JSVUZ is tray packing; AD5560JSVUZ‑REEL is tape‑and‑reel for automatic SMT assembly.
Q3: Does AD5560JSVUZ‑REEL integrate on‑chip ADC?
A: No. It uses setting DACs plus external measuring circuits, without built‑in ADC.
Q4: What protection functions does this device offer?
A: Programmable current clamps, die‑temperature shutdown and fault alarm flags to protect IC and DUT.
Q5: Are there pin‑to‑pin compatible replacements?
A: No direct pin‑compatible alternative. AD5522 / AD5542 are similar PMU devices, but parameters differ; hardware and firmware modification is needed.
Q6: What are the temperature ratings for AD5560JSVUZ‑REEL?
A: Specified operating junction temperature: 25°C ~ +90°C, full electrical performance guaranteed. Storage temperature: -65°C ~ +125°C (non‑powered only). Proper thermal dissipation is required under heavy‑load operation.
Q7: How can I get datasheet, CAD files or bulk price?
A: Please submit our quick inquiry form for datasheets, CAD models, stock check and volume quotation.
