AD5700-1BCPZ-RL7
AD5700-1BCPZ-RL7
| Part Number | AD5700-1BCPZ-RL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Interface – Telecom / HART Modems |
| Description | Low Power HART Modem with Integrated Internal Oscillator, 1.71V to 5.5V, 24-LFCSP Package, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD5700-1BCPZ-RL7 is a highly integrated single-chip HART physical layer modem from Analog Devices. It conforms fully to HART physical layer standards, built with an internal 0.5% precision oscillator to eliminate external crystal components, saving PCB space and costs. Operating at 1.71V–5.5V, it integrates receiving band-pass filtering and stable transmitting waveform shaping circuits. With ultra-low active & standby current consumption, it is ideal for 4–20mA loop-powered smart transmitters and industrial handheld communicators.
Core Advantages
Integrated High-Precision Oscillator
The built-in 0.5% accurate clock oscillator meets all HART timing requirements, no external crystal or resonator needed.
Ultra Low Power Consumption
Only 115µA receiving current and 1.5µA standby current, maximizing power budget for loop-powered 4–20mA sensors.
On-Chip Analog Receive Filter
Built-in band-pass filter suppresses out-of-band noise, delivers error-free HART signal decoding under harsh EMI industrial environments.
Wide Supply & Interface Compatibility
1.71V to 5.5V flexible power range, independent Vcc_IO pin supports direct connection with 1.8V / 3.3V / 5V MCUs without level shift circuits.
Key Specifications
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Halogen-Free |
| EDA/CAD Model | Schematic symbol, 3D CAD models, and LFCSP PCB footprint models are available on request |
| Datasheet Support | Official ADI full datasheet provided upon inquiry |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 24-LFCSP (4.00 mm × 4.00 mm × 0.75 mm) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Tape & Reel Spec | 7-inch reel, 1500pcs per reel (-RL7 suffix) |

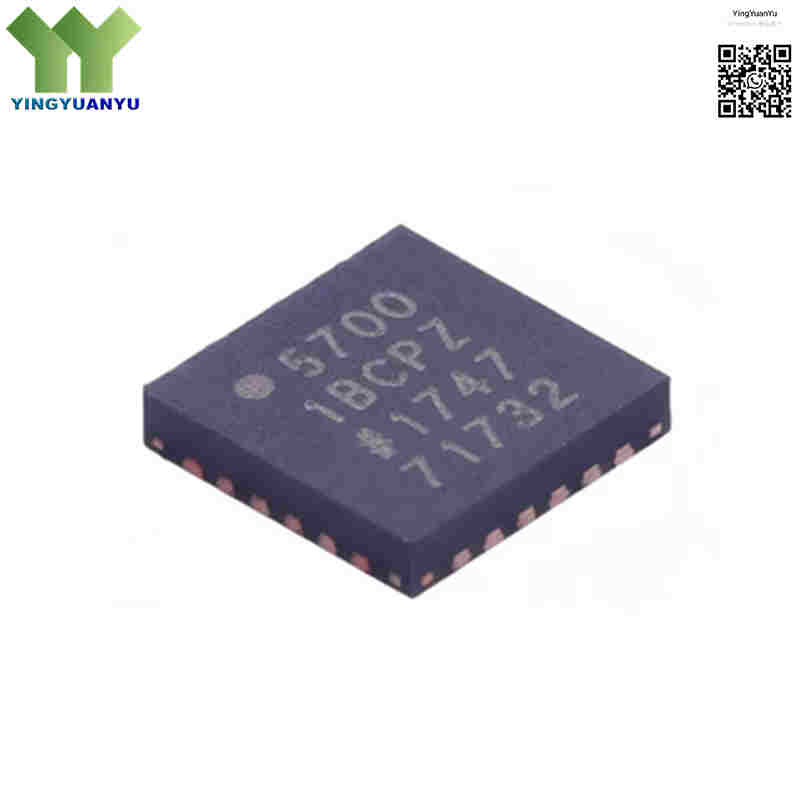

| Surface Marking / Silkscreen | 57001BCPZ Marking |
| Interface Type | UART Serial Bus |
| Modulation Protocol | HART Physical Layer Compliant (Bell 202 FSK modulation) |
| Frequencies | Mark: 1200 Hz / Space: 2200 Hz |
| Internal Clock Accuracy | ±0.5% Maximum (across the entire operating temperature range) |
| Analog Supply Voltage Range | 1.71V to 5.5V |
| Digital I/O Supply Voltage (Vcc_IO) | 1.71V to 5.5V |
| Receive Current | 115 µA typical |
| Transmit Current | 220 µA typical |
| Standby / Quiescent Current | 1.5 µA typical (Static Current: 16µA max) |
| Operating Temperature Range | -40°C to +125°C (Extended Industrial/Automotive grade) |
Typical Applications
- Smart 2-wire, 3-wire, and 4-wire process transmitters (Pressure, Temperature, Flow, Level)
- HART-to-Modbus/Ethernet gateways and industrial fieldbus couplers
- HART protocol hand-held communicators, calibrators, and diagnostic devices
- Distributed Control System (DCS) and Programmable Logic Controller (PLC) analog input modules
- Intelligent valves, positioners, and remote telemetry units (RTUs)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the difference between AD5700 and AD5700-1?
A1: AD5700-1 integrates a 0.5% precision internal oscillator without external crystal. Standard AD5700 needs external clock components.
Q2: What does suffix -RL7 stand for?
A2: It stands for 7-inch tape & reel packing, 1500pcs per reel, suitable for automated SMT production lines.
Q3: Why low operating current matters for 4-20mA loop sensors?
A3: Loop devices have strict residual current limits below 4mA. 115µA working current saves power for other circuit modules.
Q4: How does AD5700-1 suppress out-of-band noise?
A4: Built-in band-pass filter eliminates mains hum and switching noise, ensuring stable HART communication in harsh industrial EMI environments.
Q5: What supply voltage range does AD5700-1 support?
A5: Wide 1.71V to 5.5V supply, independent Vcc_IO pin connects 1.8V/3.3V/5V MCUs directly.
Q6: Can I get free samples of AD5700-1BCPZ-RL7?
A6: Yes, we offer small free samples for technical evaluation, submit inquiry form to apply.
Q7: Is this chip RoHS compliant?
A7: Fully RoHS, lead-free and halogen-free compliant for industrial equipment export.
Q8: What applications use AD5700-1?
A8: 4-20mA HART transmitters, industrial field sensors, portable handheld communication calibrators.
