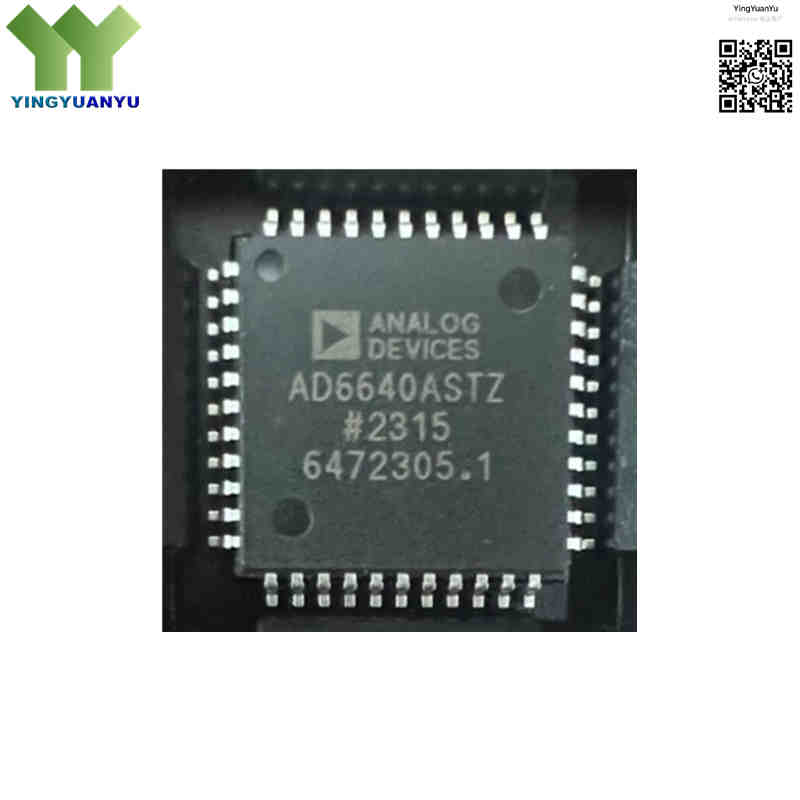

AD6640ASTZ
AD6640ASTZ
| Part Number | AD6640ASTZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition > Analog to Digital Converters (ADC) |
| Description | 12-bit, 65 MSPS single-channel IF sampling ADC, integrated track-and-hold circuit, differential analog input, parallel CMOS output, LQFP-44 lead-free industrial package. |
| Stock Status | In Stock |
| Origin | Original Factory Sealed Tray Packaging |
Product Overview
AD6640ASTZ is a single-channel 12-bit pipelined ADC produced by Analog Devices. It supports fixed 65 MSPS sampling rate and built-in track-and-hold circuit for high-frequency IF signal sampling. Differential input design reduces common-mode noise and harmonic distortion, with typical 68 dB SNR and 80 dB SFDR at 31 MHz input signal. It operates on single 4.75V~5.25V analog supply, digital outputs support 3.3V or 5V logic level. The LQFP-44 package fits communication receivers, radar signal processing and high-speed test measurement equipment.
Core Advantages
Single-Chip Track-and-Hold Circuit
No external sampling circuit required, supports high intermediate frequency signal collection to simplify front-end PCB layout.
Low Distortion Differential Input
Differential signal input suppresses ground interference, maintains stable dynamic performance under continuous high-speed sampling.
Wide Industrial Temperature Range
-40°C to +85°C operating temperature range, suitable for outdoor communication and industrial measurement equipment.
Standard Parallel CMOS Output
Universal parallel digital interface, compatible with mainstream FPGA and MCU hardware platforms.
Key Specifications
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Z-Suffix indicates Pb-free) |
| EDA/CAD Model | 3D CAD Step Models, Schematic Symbols, and PCB Layout Footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | LQFP-44 (10mm × 10mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | AD6640ASTZ Marking |
| Resolution | 12-Bit Architecture |
| Maximum Sampling Rate | 65 MSPS (Million Samples Per Second) |
| Number of Channels | 1 Single Analog Input Channel |
| Analog Input Configuration | Differential Input (Supports 2 V p-p Full-Scale Range) |
| Input Full Scale Range | 2 V p-p Differential Input Swing |
| On-Chip Circuit | Integrated Track-and-Hold Amplifier |
| Digital Interface | Parallel CMOS Compatible Output |
| Signal-to-Noise Ratio (SNR) | 68 dB Typical (with fIN = 31 MHz) |
| Spurious-Free Dynamic Range (SFDR) | 80 dB Typical (with fIN = 31 MHz) |
| Supply Voltage (VCC) | 4.75V ~ 5.25V Single Analog Supply, Digital Output Compatible with 3.3V / 5V Logic |
| Power Dissipation | ~710 mW Typical Operational Power Consumption |
| Operating Temperature Range | -40°C to +85°C Industrial Operating Temperature Range |
| Storage Temperature | -55°C ~ +125°C Storage Temperature Range |
| Standard Packaging Form | Anti-Static Plastic Tray Packing |
Typical Applications
- Multi-channel Digital IF Receivers, Cellular Communication Base Station Equipment
- Radar Signal Acquisition, Electronic Countermeasure Hardware
- Medical Ultrasound Front-End Signal Sampling Modules
- Point-to-Point Broadband Wireless Communication Terminals
- High-Speed Digitizers & Automated Test Equipment (ATE)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit inquiry form to get official datasheets, sample supply, bulk pricing and technical design support. Reply will be sent within 24 working hours.
Frequently Asked Questions
Q1: Are stocked AD6640ASTZ original brand new?
A: All inventory units are original ADI factory new components, packed in anti-static trays with complete batch traceability.
Q2: What is the advantage of built-in track-and-hold circuit?
A: Integrated track-and-hold eliminates external discrete sampling chips, reduces PCB component count and improves sampling consistency for high-frequency IF signals.
Q3: What does Z suffix stand for on AD6640ASTZ?
A: Z suffix represents lead-free RoHS compliant packaging, compatible with standard lead-free SMT reflow processes.
Q4: How to obtain ADI datasheet and bulk quotation?
A: Fill the inquiry form on product page, our engineering team will send full technical documents and volume price offer within 24 hours.
