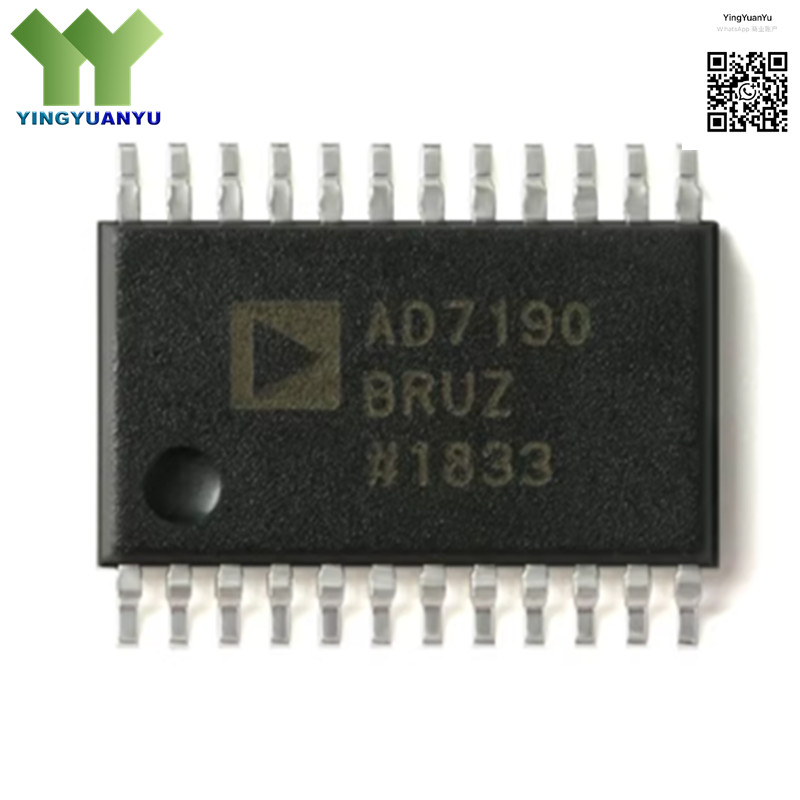

AD7190BRUZ-REEL
AD7190BRUZ-REEL
| Part Number | AD7190BRUZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Category | Integrated Circuits (ICs) > Analog to Digital Converters (ADC) > Precision Sigma-Delta ADCs |
| Description | 24-Bit High Precision Sigma-Delta ADC, 4.8kHz Throughput, Low Noise, 3V-5.25V, -40 to 105°C, TSSOP-24 |
Product Overview
The AD7190BRUZ-REEL is a low-noise, low-power, 24-bit sigma-delta analog-to-digital converter (ADC) designed for high-precision measurement applications. It features a low-noise front-end, integrated programmable gain amplifier (PGA), and a flexible input multiplexer supporting differential and pseudo-differential inputs. The device offers excellent linearity, low drift, and high accuracy across temperature, making it ideal for weigh scales, industrial process control, and precision instrumentation. Operating from a 3V to 5.25V supply and featuring a low-power mode, the AD7190 is optimized for portable and battery-powered precision measurement systems.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Analog Devices (ADI) |
| Resolution | 24-Bit Sigma-Delta ADC |
| Throughput Rate | Up to 4.8 kHz |
| Supply Voltage | 3.0V to 5.25V |
| Integrated Features | PGA, MUX, Burnout Current Sources |
| Operating Temperature | -40°C to +105°C |
| Package Type | TSSOP-24 |
Typical Applications
- High-Precision Weigh Scales and Load Cells
- Industrial Process Control and Monitoring
- Precision Instrumentation and Data Acquisition
- Pressure, Temperature, and Strain Measurement
- Portable Measurement Devices
- Industrial Automation Sensors
- Medical Diagnostic Equipment
- High-Accuracy Analog Signal Acquisition
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
