AD75019JPZ-REEL
AD75019JPZ‑REEL
| Part Number | AD75019JPZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Interface > Analog Switches, Multiplexers, Demultiplexers / Crosspoint Switches |
| Description | 256‑Channel (16×16) Analog Crosspoint Switch Array IC, Low Distortion & Broad Bandwidth, Serial Interface with cascading support, 44‑PLCC Package, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
AD75019JPZ‑REEL is ADI’s 16×16 (256‑channel) analog crosspoint switch array for audio, video and industrial signal routing. It uses serial shift‑register control with latch and multi‑chip cascading, built‑in ESD protection delivers low distortion and high isolation. 44‑PLCC tape‑and‑reel package, suitable for signal matrix, ATE, surveillance and telecom systems.
Core Advantages
16×16 Integrated Crosspoint Matrix
256 bidirectional switch nodes inside single chip, reduces PCB footprint versus discrete switch circuits.
Serial Interface with Cascading
Serial shift‑register plus latch control; SOUT pin enables multi‑chip cascading, saving MCU I/O ports.
High‑Fidelity Signal Performance
Low 0.01% THD and 20 MHz bandwidth, fits high‑quality audio, video and precision measurement applications.
Excellent Isolation Performance
High off‑channel isolation suppresses crosstalk, guarantees stable signal integrity across matrix paths.
Dual / Single Power‑Supply Compatibility
Supports dual analog ±5V~±12V or single 9‑25.2V power input, adapts to diverse system power designs.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 44‑PLCC (16.59mm×16.59mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) / PLCC Socketable |

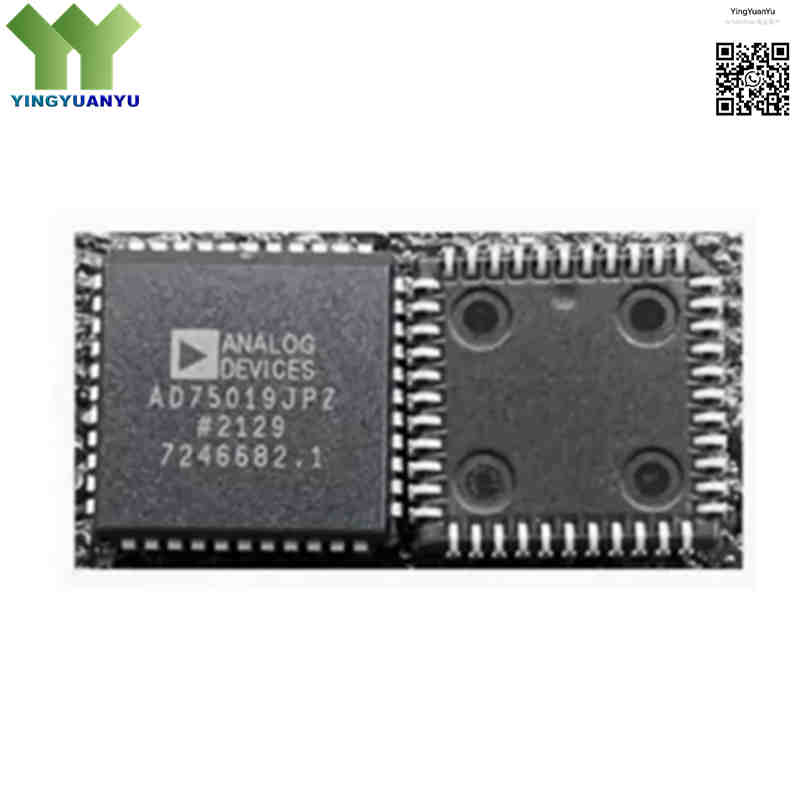

| Surface Marking / Silkscreen | AD75019JPZ Marking |
| Switch Matrix Configuration | 16 x 16 (256 Crosspoint Switches) |
| Digital Interface | Serial Shift Register (SIN, SCLK, PCLK, SOUT), Multi‑chip Cascading Supported |
| Analog Signal Voltage Range | Rail‑to‑Rail; ±12V(Dual Supply) or 24V(Single Supply) |
| Dual Analog Supply Voltage (VDD / VSS) | ±5V ~ ±12 V DC Nominal, Max ±15 V DC |
| Single Analog Supply Voltage | 9 V ~ 25.2 V DC |
| Digital Supply Voltage (VCC) | +5 V DC |
| On‑Resistance (RON) | Typ.150‑200 Ohm, Max 300 Ohm (@ ±12V) |
| On‑Resistance Matching (ΔRON) | Typ.20 Ohm, Max 30 Ohm |
| -3dB Bandwidth | 20 MHz (RL=600Ω, RL=10kΩ) |
| Off‑Channel Isolation | 92dB @1kHz；69dB @20kHz；38dB @1MHz |
| Total Harmonic Distortion (THD) | Typ. 0.01% |
| Input / Output Capacitance | Typ.25pF |
| Leakage Current | ≤10nA @ ±10V typical signal |
| Quiescent Power Dissipation | Typ. 2 mW |
| Logic Compatibility | TTL/CMOS Level (Vih≥2.4V, Vil≤0.8V @Vcc=5V) |
| SCLK Clock Frequency | Min 20kHz, Max 5MHz; Full‑matrix load min 52μs |
| Operating Temperature Range | 0°C to +70°C (Commercial Grade, JPZ version) |
| Process Technology | BiMOS II, Bipolar‑CMOS mixed‑process with ESD protection |
| Packaging Format | Tape & Reel (-REEL suffix for high‑speed automated SMT) |
Typical Applications
- Broadcast audio and video routing switchers and production studio equipment
- Automated Test Equipment (ATE) and high‑density signal multiplexing matrixes
- CCTV security systems, video surveillance matrix routers, and monitoring consoles
- PBX telecommunications switching networks and voice/data distribution units
- Medical instrumentation, multi‑channel diagnostic systems, and data acquisition matrixes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does “-REEL” mean for AD75019JPZ‑REEL?
A: “-REEL” is tape‑and‑reel for SMT mass production. AD75019JPZ is the tray‑packed version.
Q2: What is the difference between AD75019JPZ and AD75019JP?
A: JPZ is RoHS lead‑free; JP is old leaded obsolete version. Pinout and specs are identical.
Q3: How to configure and program the 16×16 matrix?
A: Send 256‑bit data via serial register and latch signal. SOUT supports multi‑chip cascading for larger matrix.
Q4: Can AD75019 handle both positive and negative analog signals?
A: Yes. With dual supply, it passes bipolar signals; it also supports single‑supply 9‑25.2V unipolar systems.
Q5: Is there industrial wide‑temperature‑40~85℃ version?
A: JPZ is commercial grade (0‑70℃). For‑40~85℃, select model KPZ. They are not pin‑to‑pin interchangeable.
Q6: Are there direct drop‑in replacement parts?
A: No pin‑compatible direct substitutes. Discrete arrays or other brand crosspoint chips are alternative choices, needing hardware & firmware adjustment.
Q7: How to request datasheet, samples or bulk quotation?
A: Submit your demand through Quick Inquiry form, we will reply within 24 hours.
