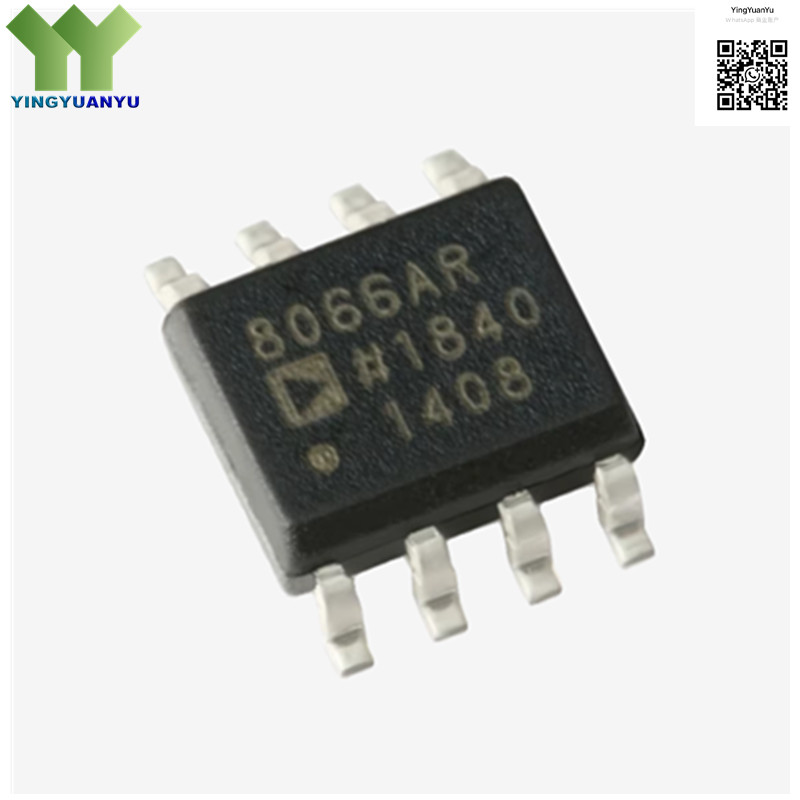

AD8066ARZ-R7
AD8066ARZ-R7
| Part Number | AD8066ARZ-R7 |
|---|---|
| Manufacturer | Analog Devices |
| Category | Operational Amplifiers; High Speed Op Amp |
| Description | 145MHz FET High Speed Operational Amplifier, Single Supply, Rail-to-Rail Output, SOIC-8 Package |
Product Overview
The AD8066ARZ-R7 is a high-performance, low-cost, high-speed operational amplifier designed for wideband signal conditioning and data acquisition applications. It offers a 145MHz gain bandwidth product, 75V/μs slew rate, and rail-to-rail output swing for maximum dynamic range in single-supply systems. The device features excellent distortion performance, low noise, and stable operation over a wide supply range from 2.7V to 12V. Housed in a standard SOIC-8 surface-mount package, it provides reliable, high-speed amplification for industrial, communication, and precision measurement systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Analog Devices |
| Amplifier Type | High Speed Operational Amplifier |
| Gain Bandwidth | 145 MHz |
| Supply Voltage | 2.7V ~ 12V |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Speed Signal Conditioning
- Data Acquisition Systems
- Active Filters & Buffers
- Portable Instrumentation
- Communication Circuits
- Industrial Control Systems
- Video & Wideband Amplification
- ADC Input Drivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
