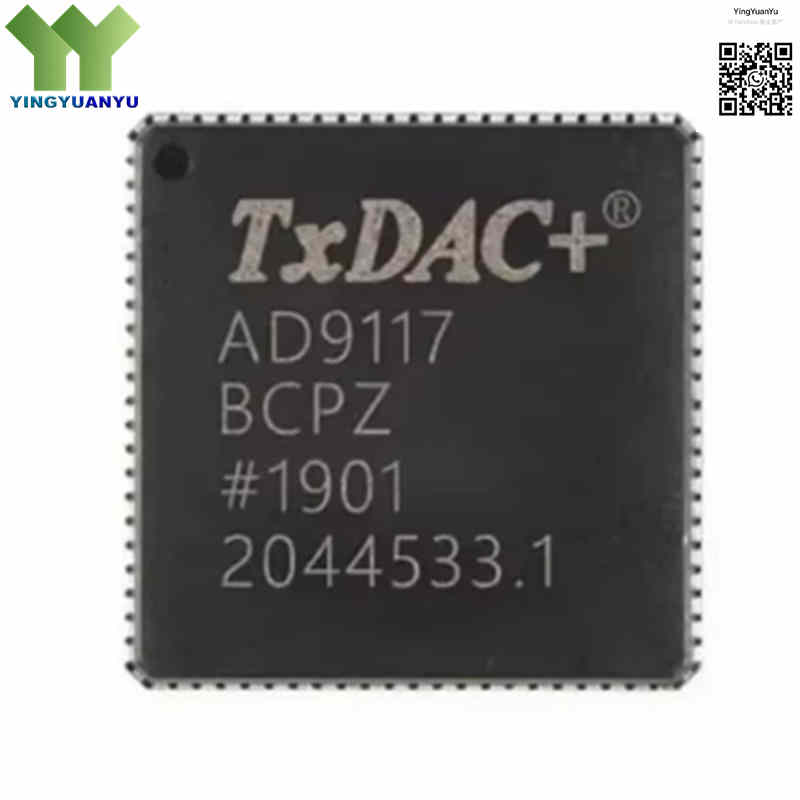

AD9117BCPZ
AD9117BCPZ
| Part Number | AD9117BCPZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Digital to Analog Converters (DAC) |
| Description | Dual, 14-Bit, 125 MSPS Low Power Digital-to-Analog Converter (DAC) optimized for high dynamic performance,LFCSP-40(6x6mm)Package |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9117BCPZ is a high-performance, low-power, dual-channel 14-bit Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. Delivering sample rates up to 125 MSPS, this pin-compatible TxDAC® member is explicitly optimized for the transmit signal paths of contemporary communication systems. It translates digital baseband signals into crisp, high-fidelity analog wave outputs while utilizing minimal power infrastructure. The chip incorporates advanced internal matching circuitry, fine-tuned gain adjustments, and a highly stable integrated band gap reference module. Housed in a space-saving 40-lead LFCSP package, the AD9117BCPZ provides an exceptional solution for engineers seeking to maximize dynamic range parameters, reduce trace overheads, and streamline board designs in complex multi-carrier broadband environments.
Core Advantages
Ultra-Low Power Consumption
Operating with an ultra-efficient internal architecture, the AD9117BCPZ significantly curtails power dissipation down to tens of milliwatts per channel. This low-thermal profile extends deployment reliability in heavily packed enclosed systems and battery-powered portable hardware.
Exceptional Dynamic Performance
Engineered to maintain strict signal fidelity across broad frequency margins, the device boasts outstanding Spurious-Free Dynamic Range (SFDR) and Intermodulation Distortion (IMD) metrics. This keeps signal boundaries clear of undesired noise floors during dense broadband transmissions.
Dual Channel Integration and Flexibility
The monolithic dual-core configuration is natively matched for I/Q differential signal modulation paths. Fine phase adjustment and independent channel gain controls enable precise matching, minimizing sideband reflections and maximizing complex signal constellation clarity.
Compact Package Footprint
The integration of two complete 14-bit high-speed DAC cores inside a compact LFCSP-40(6x6mm) housing reduces high-frequency motherboard layout surface requirements and shortens transmission track paths, substantially mitigating electromagnetic interface (EMI) radiation hazards.
Key Specifications
| Brand | Analog Devices Inc. |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | LFCSP-40(6x6mm) Package |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | AD9117BCPZ Marking |
| Resolution | 14-Bit |
| Number of DAC Channels | 2 (Dual Channel Configuration) |
| Sampling Rate | 125 MSPS |
| Digital Interface | Parallel (CMOS / LVCMOS compatible) |
| Output Structure | Current-Sourced Differential Outputs |
| Integral Nonlinearity (INL) | ±1 LSB (Typical) |
| Differential Nonlinearity (DNL) | ±0.5 LSB (Typical) |
| Supply Voltage Range | Digital: 1.8 V, Analog: 3.3 V |
| Operating Temperature Range | -40°C to +85°C (Industrial Grade Specification) |
Typical Applications
- Wireless Infrastructure Transmitters (Cellular Base Stations, WCDMA, LTE)
- Direct Digital Synthesis (DDS) Instrumentation and Waveform Generators
- Broadband Communications Transceivers and WiMAX Head-End Links
- High-Resolution Digital Modulators and Quadrature Up-Conversion (I/Q) Networks
- Military Radar Processing and Secure Tactical Communication Hubs
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock of AD9117BCPZ completely genuine and factory-original?
A: Yes, all AD9117BCPZ ICs available in our warehouse are 100% authentic, brand new, and sourced from authorized factory channels with traceable batch and date codes.
Q2: What are the main benefits of using a dual DAC like the AD9117 for communication paths?
A: The dual channel configuration allows for native processing of differential In-phase (I) and Quadrature (Q) analog signal paths. This provides unmatched phase balance, lower trace complexities, and much sharper signal modulation profiles.
Q3: Are there any pin-compatible upgrade options available if our layout demands higher resolution?
A: Yes, the AD9117 belongs to a pin-compatible family from Analog Devices. You can easily scale up or down between the 8-bit, 10-bit, or 12-bit variants within the same circuit layout footprints without revising your hardware layout design.
Q4: How can our design engineers request the comprehensive datasheet and register configuration guides?
A: Please reach out to our team using the Quick Inquiry web form on this page. Our technical application engineering desk will compile and email you the requested documentation within 24 hours.
