AD9283BRSZ-RL100
AD9283BRSZ-RL100
| Part Number | AD9283BRSZ-RL100 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Analog to Digital Converters (ADC) |
| Description | High-speed, 8-bit, 100 MSPS Analog-to-Digital Converter (ADC) featuring an on-chip track-and-hold circuit, integrated reference source, and low-power TTL/CMOS compatible outputs for high-frequency applications. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9283BRSZ-RL100 is a monolithic 8-bit high-speed ADC developed by Analog Devices, tailored for high-frequency test instruments, communication receivers and portable digitization equipment. Supporting up to 100 MSPS sampling rate, this single-chip device integrates a track-and-hold amplifier and internal stable voltage reference. Its pipelined architecture with digital error correction delivers consistent dynamic performance without missing codes, while single-supply low-power design reduces thermal load for compact PCB layouts. Packaged in standard SSOP-20, it offers cost-effective fast transient signal acquisition for space and power-limited industrial, medical and wireless systems.
Core Advantages
Ultra-Fast 100 MSPS Digitization Rate
Delivers clean, high-speed 8-bit analog translation up to 100 MSPS, making it an excellent design choice for high-frequency signal capture, communication down-conversion, and transient test equipment loops.
Exceptional Dynamic Performance Matrix
Maintains excellent Effective Number of Bits (ENOB) and exceptional Signal-to-Noise and Distortion ratio (SINAD) specs even when digitizing high-frequency analog input signals past its nominal Nyquist limits.
Highly Consolidated Low-Power Design
Consolidates track-and-hold circuits and a stable reference source inside a single chip, drawing exceptionally low power from a single supply rail to maximize efficiency and extend product lifetimes.
Simplified Interface Integration
Features standard single-ended analog inputs and direct TTL/CMOS-compatible digital output lines, facilitating seamless data-bus connections to mainstream FPGAs, DSPs, and ASIC digital processing cores.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS 3 Compliant & Lead-Free Green Packaging |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | SSOP-20-208mil |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

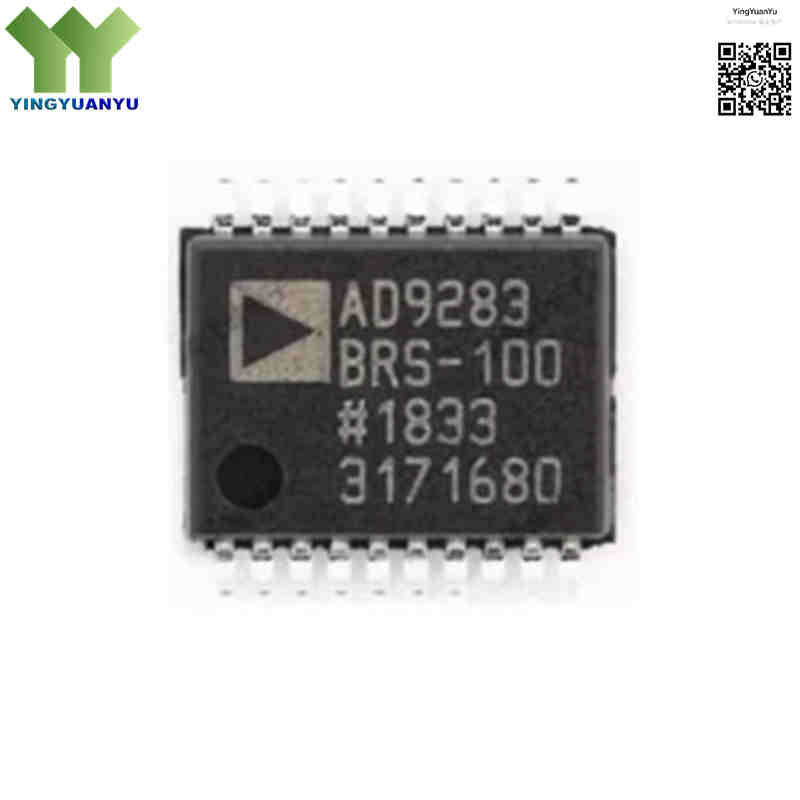

| Surface Marking / Silkscreen | AD9283BRS-RL100 Marking |
| Resolution | 8-Bit Data Conversion Accuracy |
| Maximum Sampling Rate | 100 MSPS (Mega-Samples Per Second) |
| Analog Input Type & Range | Single-Ended / Differential Operation Path with Integrated Track-and-Hold, 1 V p-p full-scale analog input |
| Digital Output Interface | Parallel TTL / CMOS Compatible Output Format |
| Full Power Bandwidth | Up to 475 MHz Wideband Input Performance Coverage |
| Operating Power Supply Range | +2.7V to +3.6V Single Supply Rails (VDD) |
| Power Consumption | Low active power rating (Typically ~90 mW at 100 MSPS) |
| Operating Temperature Range | -40°C to +85°C (Industrial System Reliability Grade Envelope) |
Typical Applications
- Digital Oscilloscopes, Handheld Data Loggers, and High-Speed Transient Capture Test Gear
- Wireless Communication Receivers, Demodulation Hardware, and Digital Radio Links
- Ultrasound Medical Imaging, Blood Flow Analyzers, and Biomedical Laser Diagnostic Tools
- Industrial Machine Vision Inspection Systems, Barcode Readers, and Automated Quality Scanners
- Battery-Powered Field Testing Instruments, Avionics Systems, and Ruggedized Radar Receivers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the AD9283BRSZ-RL100 component fully original and authentic?
A: Yes, we guarantee that all AD9283BRSZ-RL100 high-speed ADC chips in our stock are 100% brand-new, factory-original products from Analog Devices Inc., kept inside temperature-controlled and anti-static ESD shielding pipelines.
Q2: What is the specific meaning of the “-RL100” suffix in the part number?
A: The “-RL100” suffix stands for factory tape & reel packaging: devices are loaded on a standard 7-inch reel with 1000 pieces per reel, designed for high-volume automated SMD pick-and-place assembly lines.
Q3: Does the AD9283BRSZ-RL100 require an external reference voltage generator?
A: No, the device integrates a highly stable, internal voltage reference circuit. However, if your specific application demands specialized calibration or system synchronization tracking, an external reference source can be applied to override the internal circuit.
Q4: How can our engineering development group request register initialization scripts, evaluation board files, or ask for tiered volume discount quotes?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
