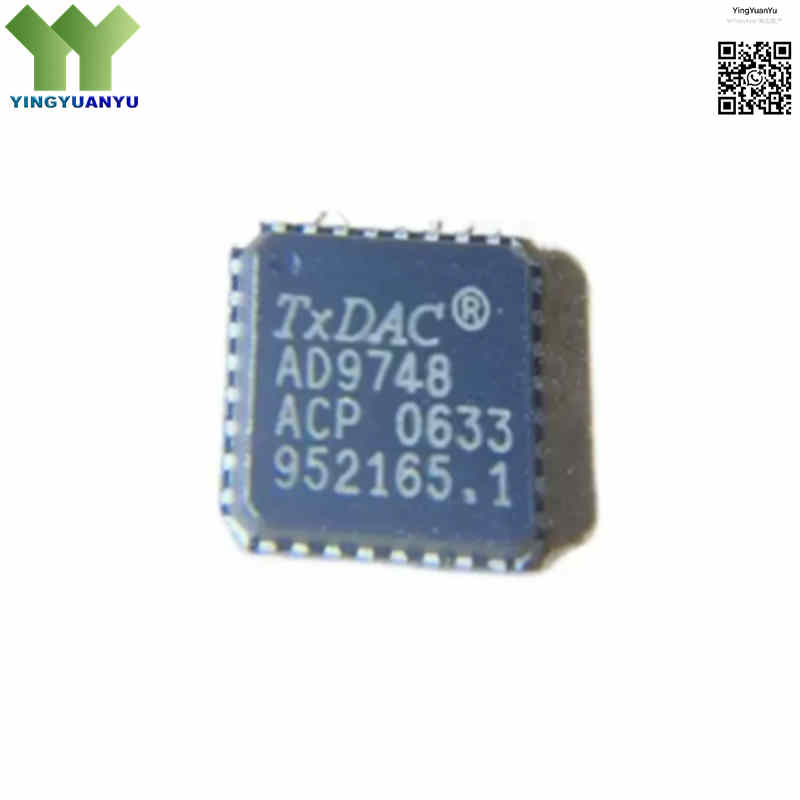

AD9748ACPZ-RL7
AD9748ACPZ-RL7
| Part Number | AD9748ACPZ-RL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Digital to Analog Converters (DAC) |
| Description | High-performance, 8-bit, 210 MSPS TxDAC® digital-to-analog converter featuring excellent dynamic range, ultra-low distortion, and low power consumption in a space-saving 32-lead LFCSP package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9748ACPZ-RL7 is an 8-bit high-speed TxDAC® from Analog Devices, optimized for communication transmit paths, signal generators and high-frequency waveform synthesis. It supports a maximum conversion rate of 210 MSPS, and is pin-compatible with AD9740, AD9742, AD9744 for flexible performance upgrade. Adopting segmented current source design, it achieves low distortion and excellent SFDR. Equipped with standard 3.3V CMOS digital interface, it connects easily to FPGAs and digital processors. Packaged in compact 32-lead LFCSP_WQ tape & reel, it is a reliable, low-power solution for broadband telemetry and signal processing systems.
Core Advantages
210 MSPS High-Speed Conversion
8-bit high-speed core supports 210 MSPS clock input, meeting wide analog bandwidth demands of communication transmission.
Optimized TxDAC® Segmented Architecture
ADI proprietary current source design reduces glitch and harmonic distortion for clean output spectrum.
Low Power & Small Thermal Output
Low operating current suitable for compact, sealed base station equipment.
Pin-to-Pin Compatible Design
Unified pin layout with 10~14-bit TxDAC series, no PCB modification required for performance upgrade.
Key Specifications
| Brand | Analog Devices TxDAC® High-Speed Digital-to-Analog Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Halogen-Free Materials Sourced |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and Pinout Footprint Configurations available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 32-LFCSP (5mm × 5mm × 0.50mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead-Free Reflow Solder Automated Assembly) |
| Surface Marking / Silkscreen | AD9748ACP Marking |
| DAC Core Resolution | 8-Bit Precision Output Architecture |
| Channel Count | 8 Channels |
| Maximum Update Sampling Rate | Up to 210 MSPS (Megasamples per second) |
| Spurious-Free Dynamic Range (SFDR) | Typical 75 dBc SFDR up to Nyquist at 5 MHz output frequency |
| Digital Input Type Support | Standard 3V / 3.3V CMOS Parallel Data Interface ports |
| Analog Output Configuration | Differential Current Outputs (nominal 2 mA to 20 mA adjustable full-scale range) |
| Power Supplies Range | +2.7 V to +3.6 V Single Supply Operation (highly power optimized) |
| Packaging Format | Tape and Reel (“-RL7” denotes 7-inch reel configuration containing 1,500 units) |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Grade Operational Thermal Spectrum) |
| Interface Type | Parallel CMOS Interface |
| Full-Scale Output Current | 2mA ~ 20mA Adjustable |
| Series | TxDAC® Digital to Analog Converter |
Typical Applications
- Wideband Wireless Communication Transmitters, Digital Radio Links, and Cellular Infrastructure
- Direct Digital Frequency Synthesis (DDS) Systems and Agile High-Frequency Clock Generators
- Arbitrary Waveform Generators (AWG) and Handheld RF Electronic Test Equipment Calibration Modules
- High-Speed Video Signal Reconstruction, Professional Imaging Displays, and Radar Waveform Drivers
- Ultrasound Medical Probes, Automated Diagnostic Telemetry Systems, and Controlled Transducer Arrays
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Are your AD9748ACPZ-RL7 100% original?
A1: All stock is brand new original from ADI. Every reel passes ESD, visual and date code inspection, packed in factory moisture-proof bags.
Q2: What do Z and RL7 suffix mean?
A2: Z = RoHS lead-free green packaging; RL7 stands for 7-inch tape & reel with 1500 pieces per reel for SMT production.
Q3: What’s the advantage of pin compatibility?
A3: This DAC shares identical pin layout with other TxDAC series. You can upgrade between 8/10/14-bit models without redesigning PCB.
Q4: How to layout analog & digital ground for this LFCSP chip?
A4: Separate analog and digital ground loops. Solder the exposed pad fully to ground plane, and route analog traces far from digital lines to reduce noise.
Q5: Can I order small sample quantities?
A5: Yes, we support 1PC minimum order for samples. Contact us via inquiry form for sample pricing.
Q6: How fast is your shipment after payment?
A6: In-stock items will be shipped within 1-2 working days after payment confirmed.
Q7: Do you provide datasheets and CAD files?
A7: We offer official datasheets, 3D STEP models and schematic footprints free upon request.
