AD9859YSVZ-REEL7
AD9859YSVZ-REEL7
| Part Number | AD9859YSVZ‑REEL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Clock/Timing – Direct Digital Synthesis (DDS) |
| Description | 400 MSPS Direct Digital Synthesizer (DDS) with 10‑Bit DAC, Low Power Consumption, Programmable Charge Pump, 48‑Lead TQFP‑EP (7×7mm) Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9859YSVZ‑REEL7 is an integrated DDS chip from Analog Devices, supporting 400 MSPS internal clock and 10‑bit high‑speed DAC. It generates agile sine‑wave output up to 200 MHz, equipped with 32‑bit frequency tuning word, 14‑bit phase offset and built‑in 4x‑20x reference clock multiplier. Packaged in 48‑Lead TQFP‑EP (7×7mm) on 7‑inch tape‑and‑reel, it fits test‑measurement, wireless infrastructure and portable signal generator applications.
Core Advantages
High‑Speed & Fine Resolution
400 MSPS clock, 32‑bit FTW and 14‑bit phase offset, delivers sub‑Hertz frequency tuning and precise phase adjustment.
Low‑Power Design
Low power consumption under 1.8V core supply, suitable for battery‑powered and thermally‑sensitive devices.
Built‑in Clock Multiplier PLL
4x‑20x PLL multiplier allows high‑speed internal operation with low‑frequency external crystal, simplifying clock peripheral circuit.
Flexible SPI Control Interface
3‑wire / 4‑wire SPI compatible port, fast register update with minimal MCU pin resources.
Key Specifications
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 48‑TQFP‑EP (7×7mm) |
| Mounting Type | Surface Mount (SMD / SMT) |

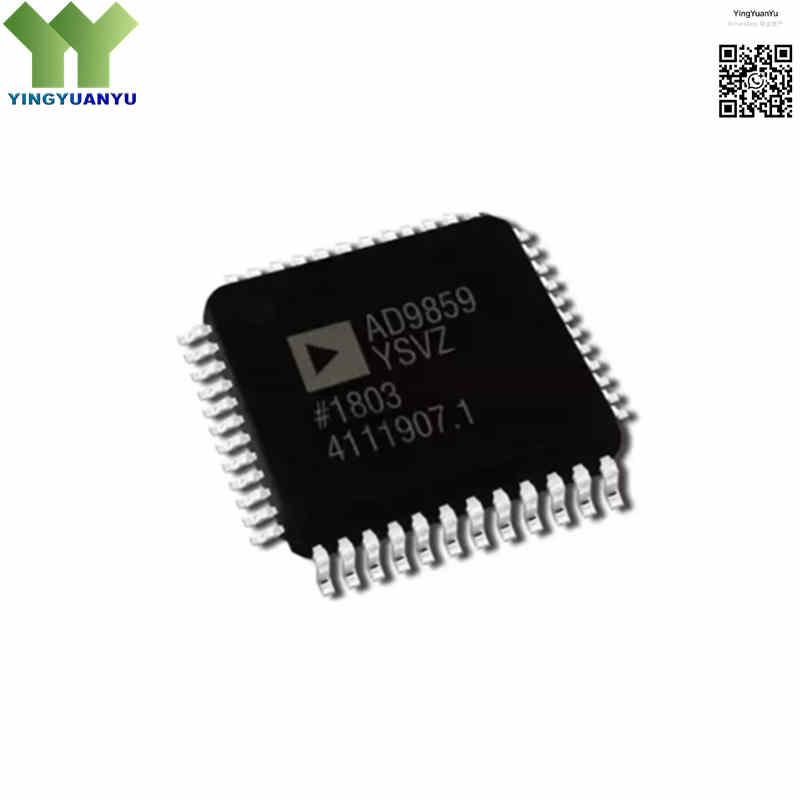

| Surface Marking / Silkscreen | AD9859YSVZ / ADI Logo |
| Maximum Core Clock Frequency | 400 MSPS |
| Max Analog Output Frequency | 200 MHz |
| Frequency Tuning Word Width | 32‑Bit |
| Phase Resolution | 14‑Bit |
| Internal DAC Resolution | 10‑Bit High‑Speed DAC |
| Reference Clock Multiplier Range | 4x ~ 20x PLL Multiplier |
| Control Interface | SPI Serial Interface |
| Core Voltage Supply | 1.8 V Nominal |
| I/O Voltage Supply | 3.3 V Nominal |
| Operating Temperature Range | -40°C to +105°C (Extended Industrial Grade) |
Typical Applications
- Agile Local Oscillator (LO) Frequency Synthesis in Communication Receivers
- Portable Test and Measurement Equipment and Benchtop Signal Generators
- Clock Generation, Synthesizer Modules, and Jitter Attenuation Systems
- Wireless Infrastructure, RFID Readers, and Point‑to‑Point Radios
- Ultrasound, Radar Processing, and Precision Medical Diagnostics
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the maximum core clock rate of the AD9859YSVZ‑REEL7?
A: Maximum internal clock is 400 MSPS, supports output frequency up to 200 MHz for high‑precision signal synthesis.
Q2: What is the difference between AD9859YSV, AD9859YSVZ and AD9859YSVZ‑REEL7?
A: AD9859YSV: lead‑containing, tray package; AD9859YSVZ: RoHS lead‑free, tray package; AD9859YSVZ‑REEL7: RoHS lead‑free, 7‑inch tape‑and‑reel. Same die and pinout, fully pin‑to‑pin compatible.
Q3: What does “-REEL7” suffix mean?
A: It refers to 7‑inch tape‑and‑reel packaging, suitable for automatic SMT mass production.
Q4: Does AD9859YSVZ‑REEL7 need dual power supplies?
A: Yes, 1.8V for core and 3.3V for I/O are required for normal operation.
Q5: Are there pin‑to‑pin drop‑in alternatives for AD9859?
A: No direct pin‑compatible replacement. AD9858 / AD9912 are function‑similar alternatives, but PCB redesign is mandatory.
Q6: What is the package requirement for AD9859YSVZ‑REEL7?
A: 48‑Lead TQFP‑EP (7×7mm). The exposed thermal pad must connect to GND for reliable heat dissipation.
Q7: Can AD9859YSVZ(tray) replace AD9859YSVZ‑REEL7?
A: Yes, fully interchangeable. Only packaging differs, chip electrical performance is identical.
Q8: Where to get datasheet, sample and bulk quotation?
A: Submit your demand via Quick Inquiry form for datasheet, sample and volume pricing support.
