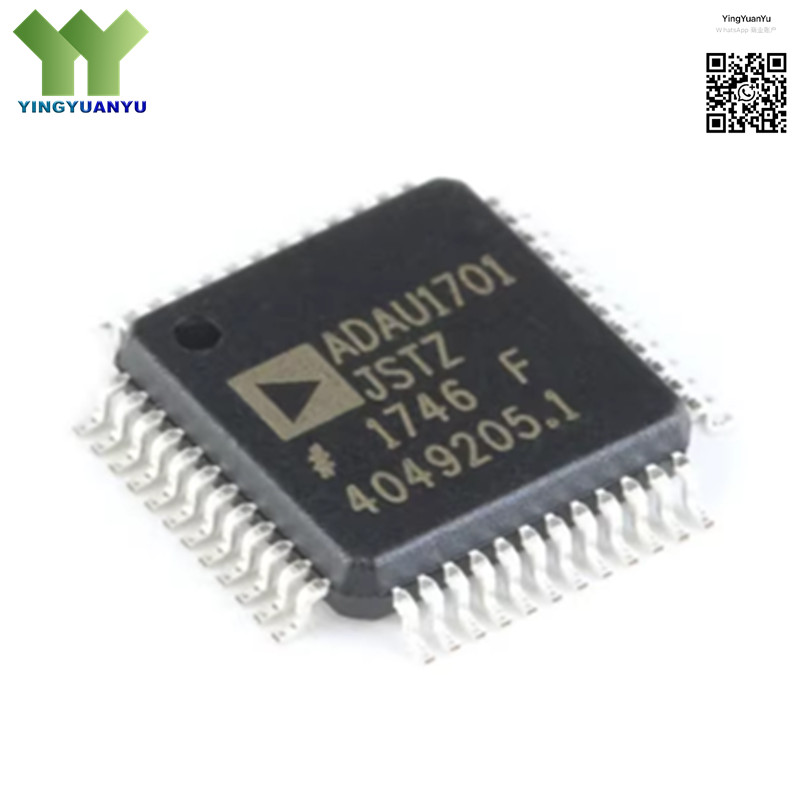

ADAU1701JSTZ-RL
ADAU1701JSTZ-RL
| Part Number | ADAU1701JSTZ-RL |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Category | Integrated Circuits (ICs) > Audio Processing > Digital Audio Signal Processors (DSP) |
| Description | 28/56-bit Audio DSP, SigmaDSP, 4 ADC / 6 DAC, I2S/TDM, 3.3V, -40 to 85°C, LQFP-48 |
Product Overview
The ADAU1701JSTZ-RL is a complete, single-chip audio processor system based on Analog Devices’ SigmaDSP® core, designed for high-performance audio processing applications. This device integrates a 28/56-bit audio DSP core, four ADC channels, six DAC channels, and flexible audio interfaces (I2S, TDM, SPI) for full audio signal processing. It supports graphic programming via SigmaStudio, allowing easy development of equalization, dynamics processing, crossover, and other audio algorithms without coding. With low power consumption and a wide operating range, the ADAU1701 is ideal for consumer audio, automotive audio, professional audio, and smart speaker applications.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Analog Devices (ADI) |
| DSP Core | SigmaDSP® 28/56-bit |
| Audio I/O | 4 ADC, 6 DAC Channels |
| Audio Interfaces | I2S, TDM, SPI, S/PDIF |
| Supply Voltage | 3.3V Single Supply |
| Operating Temperature | -40°C to +85°C |
| Package Type | LQFP-48 |
Typical Applications
- Automotive Audio Systems & Amplifiers
- Smart Speakers & Voice Assistants
- Professional Audio Mixers & Processors
- Multimedia Speakers & Soundbars
- Active Noise Cancellation (ANC) Systems
- Digital EQ & Dynamic Audio Processing
- Home Theater & Surround Sound Systems
- Industrial Audio & Public Address Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
