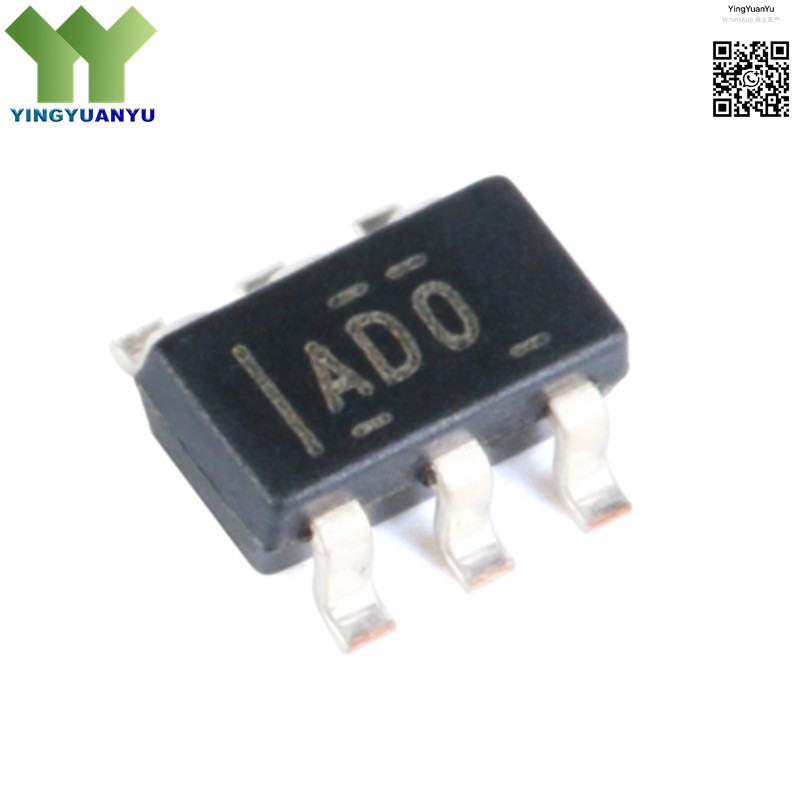

ADS1100A0IDBVR
ADS1100A0IDBVR
| Part Number | ADS1100A0IDBVR |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Analog-to-Digital Converters (ADCs); 16-Bit I2C ADC |
| Description | 16-Bit High-Precision Analog-to-Digital Converter, I2C Interface, 2.0V-5.5V, SOT-23-6 Package |
Product Overview
The ADS1100A0IDBVR is a compact, low-power 16-bit analog-to-digital converter designed for high-precision data acquisition in portable, battery-powered, and space-constrained embedded systems. It features a standard I2C serial interface for simple microcontroller integration, operates from a wide 2.0V to 5.5V supply voltage, and offers high accuracy, low noise, and programmable data rate settings. The device includes an integrated programmable gain amplifier (PGA) and internal reference for simplified circuit design and reliable performance. Housed in a tiny SOT-23-6 surface-mount package, it provides excellent space efficiency for high-density PCB designs and low-power sensor applications.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments (TI) |
| Resolution | 16-Bit |
| Interface | I2C Serial Interface |
| Supply Voltage | 2.0V ~ 5.5V |
| Package Type | SOT-23-6 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Precision Sensor Data Acquisition
- Portable & Battery-Powered Instruments
- Industrial Control & Automation Systems
- IoT Nodes & Smart Sensor Modules
- Medical & Wearable Monitoring Devices
- Consumer Electronics & Smart Home Products
- Low-Power Analog Signal Measurement
- Test & Measurement Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
