ADS8344EB/2K5
ADS8344EB/2K5
| Part Number | ADS8344EB/2K5 |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) > Data Acquisition > Analog to Digital Converters (ADC) |
| Description | 16-Bit 100kSPS 8-Channel Serial Analog-to-Digital Converter, Low-Power SAR ADC, SSOP-20 Package (Tape & Reel). |
| Stock Status | In Stock |
| Origin | Original Factory |
| Lifecycle Status | Active |
Product Overview
The ADS8344EB/2K5 is a Texas Instruments 16‑bit low‑power SAR ADC. It integrates an 8‑channel multiplexer supporting 8 single‑ended or 4 differential inputs with 100 kSPS throughput. Operating on 2.7V‑5V single supply, it adopts 4‑wire SPI serial interface, requires external reference, and is supplied in SSOP‑20 tape‑and‑reel package(2500pcs/reel). Suitable for industrial acquisition, portable instruments and battery‑powered sensor systems.
Core Advantages
16‑Bit High‑Precision Multi‑Channel Acquisition
True 16‑bit resolution without missing codes, DNL ±2LSB max, INL ±1~±2LSB, 8‑channel multiplexer for flexible single‑ended / differential signal sampling.
Wide Supply & Ultra‑Low Power
2.7V‑5V wide supply range; 10 mW full‑speed power, <15μW power‑down consumption, 3μA standby current, ideal for battery‑driven devices.
SPI Serial Interface
4‑wire SPI/QSPI/MICROWIRE‑compatible interface, max 2.4 MHz external clock, simplifies MCU connection and PCB layout.
Compact Package & Pin Compatibility
SSOP‑20 surface‑mount package, pin‑to‑pin compatible with ADS7844, convenient for hardware replacement.
Good AC Performance
84 dB SNR, 86 dB SINAD @5V, delivers reliable precision measurement for sensor applications.
Key Specifications
| Brand | Texas Instruments (TI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 20-SSOP (0.209″, 5.30mm Width) |
| Packaging Type | Tape & Reel (TR) – 2,500 units (/2K5 suffix) |
| Mounting Type | Surface Mount (SMD / SMT) |

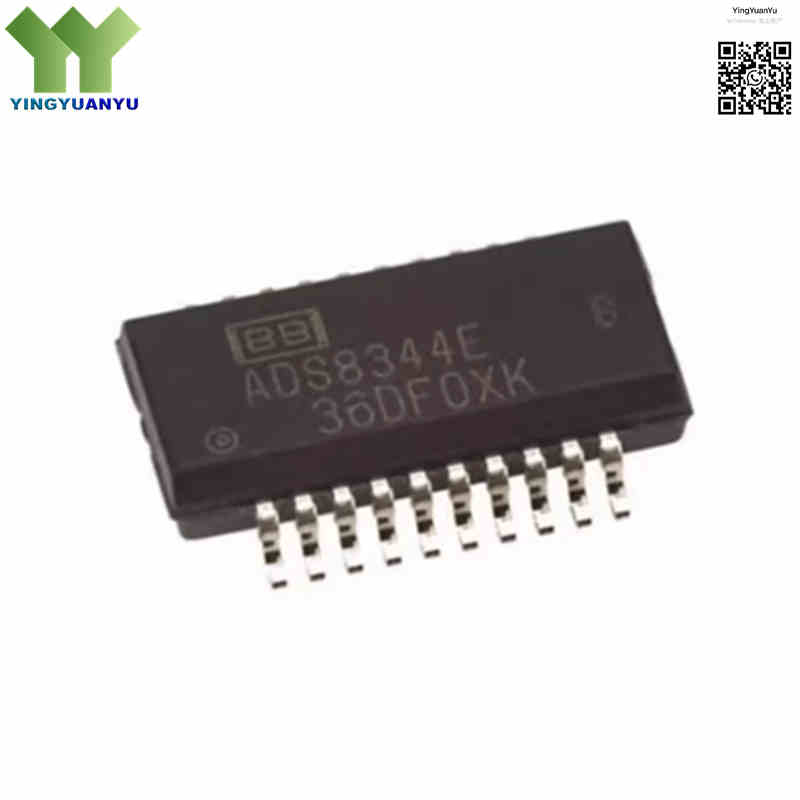

| Surface Marking / Silkscreen | ADS8344E / BB Logo |
| Architecture | SAR (Successive Approximation Register) |
| Resolution | 16 Bits, no missing codes |
| Sampling Rate | 100 kSPS |
| Number of Input Channels | 8 Single-Ended or 4 Fully Differential |
| Analog / Digital Supply Voltage | 2.7 V to 5 V |
| Analog Input Voltage Range | 0 V to VREF (VREF: 500mV ~ VCC) |
| Internal Reference | No on-chip reference, external 2.5V reference recommended |
| Full-Speed Power Consumption | Typical 10 mW @ 5V, 100kSPS |
| Power-Down Power Consumption | <15 μW |
| Standby Quiescent Current | Typical 3 μA |
| External Clock Frequency | Max 2.4 MHz |
| DNL (Differential Non-Linearity) | ±2 LSB (Max) |
| INL (Integral Non-Linearity) | ±1 ~ ±2 LSB |
| SNR / SINAD | 84 dB / 86 dB @ 5V |
| Data Interface | SPI, Serial (4-wire, SPI/QSPI/MICROWIRE compatible) |
| Operating Temperature | -40°C to +85°C (Industrial Grade, E suffix) |
Typical Applications
- Multi-Channel Industrial Process Control and Programmable Logic Controllers (PLCs)
- Battery-Powered Portable Test and Measurement Equipment
- Medical Instrumentation and Patient Monitoring Devices
- Environmental Data Systems and Multi-Sensor Data Loggers
- Remote System Health Monitoring and Industrial Instrumentation
- Personal digital assistants and low-power sensor acquisition nodes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “/2K5” suffix in ADS8344EB/2K5 mean?
A: “/2K5” stands for tape‑and‑reel package with 2500 pieces per reel. /1K is 1000pcs/reel; no suffix means tray packing. Same die and electrical performance.
Q2: Can ADS8344EB/2K5 work with 3V battery power supply?
A: Yes, supply range 2.7V‑5V, fully compatible with 3V / 3.3V battery‑powered designs.
Q3: How to configure analog input channels?
A: Controlled by serial commands, multiplexer supports 8 single‑ended inputs or 4 differential input pairs.
Q4: What is the difference between ADS8344EB and ADS8344GB?
A: ADS8344EB: industrial grade -40℃~+85℃; ADS8344GB: commercial grade 0℃~+70℃. Pin‑compatible, cannot cross‑substitute for low‑temperature industrial applications.
Q5: Does ADS8344EB/2K5 include internal voltage reference?
A: No on‑chip reference. External reference (500mV ~ VCC) is required; 2.5V reference is recommended for best accuracy.
Q6: Which models are pin‑to‑pin drop‑in replacements?
A: ADS8344EB (tray) and ADS8344EBG4 (RoHS eco version) are direct drop‑in replacements without hardware or firmware modification. ADS7844 is also pin‑compatible.
Q7: Can ADS8345E/2K5 replace ADS8344EB/2K5 directly?
A: Same SSOP‑20 pinout, but higher sampling rate. Hardware can be mounted directly, yet firmware register settings must be adjusted, not seamless drop‑in swap.
Q8: Difference between SSOP‑20 and QSOP‑20 package?
A: Identical pin assignment and electrical specs. QSOP is shrink thin package; SSOP is standard narrow‑body. PCB footprints are not interchangeable, please match your layout.
Q9: How to get datasheet, CAD model or volume quotation?
A: Submit quick inquiry form for official datasheets, CAD files, stock status and bulk‑order pricing.
