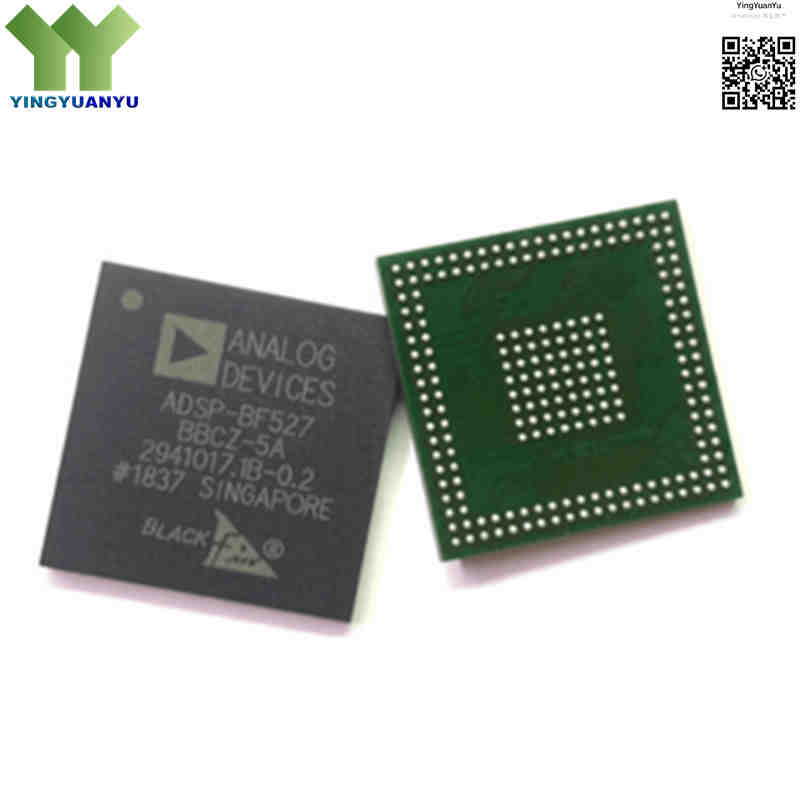

ADSP-BF527BBCZ-5A
ADSP-BF527BBCZ-5A
| Part Number | ADSP-BF527BBCZ-5A |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Embedded – DSP (Digital Signal Processors) |
| Description | High-performance 16/32-bit Blackfin Embedded Processor operating at 533 MHz, featuring an integrated USB 2.0 High-Speed OTG controller, 10/100 Ethernet MAC, and low-power Lockbox security infrastructure. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADSP-BF527BBCZ-5A is a high-performance Blackfin® embedded processor from Analog Devices Inc. Operating at 533 MHz, it unifies 16/32-bit DSP and MCU capabilities in a single core. It integrates USB 2.0 High-Speed OTG, 10/100 Ethernet MAC, and Lockbox® secure technology for IP protection. Packaged in a BGA-208 (12×12 mm), it is ideal for real-time media processing, VoIP terminals, smart surveillance, industrial automation, and multi-protocol grid communication.
Core Advantages
Converged Blackfin Core Computing Architecture
Combines signal computation power and robust control code task executing capabilities inside a unified instruction set environment, minimizing complex dual-core code development and inter-processor delays.
Rich and Diversified System Interconnect Array
Integrates an on-chip USB 2.0 High-Speed OTG controller and a 10/100 Ethernet MAC directly onto the internal data crossbar, significantly cutting down external peripheral chip counts and system component footprints.
Advanced Structural Lockbox Security Framework
Utilizes secure hardware operating states paired with protected digital execution areas, safeguarding digital intellectual property (IP) and system code from malicious extraction or reverse engineering.
Dynamic Power and Frequency Tuning Matrix
Supports dynamic voltage and frequency scaling (DVFS) routines, adjusting core operating supply voltages on-the-fly to deliver excellent computational performance while limiting battery or thermal power drain.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Package Format) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | BGA-208 (12×12 mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | ADSP-BF527BBCZ-5A Marking |
| Core Processor Type | Blackfin® 16/32-bit RISC Core Engine |
| Core Maximum Clock Speed | 533 MHz |
| Internal L1 Cache Memory | 116 KB High-Speed L1 SRAM/Cache Array |
| External Memory Bus Interfaces | SDRAM, External Asynchronous Flash / SRAM, Burst Flash Configuration Support |
| On-Chip High-Speed Connectivity | 1x USB 2.0 HS OTG, 1x 10/100 Mbps Ethernet MAC Subsystem |
| Integrated System Peripherals | SPORTs (Serial Ports), SPI, TWI (I2C Compatible), UART, Timers, Watchdog, Real-Time Clock (RTC) |
| Core Operating Supply Rail | 1.14V to 1.4V DC Variable Core Voltage Requirement |
| I/O Interface Supply Rail | 1.8V, 2.5V, or 3.3V Multi-Voltage Standard Tolerances |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Thermal Specification Window) |
Typical Applications
- Professional VoIP Communication Devices, Secure IP Intercoms, and Conference Terminals
- Industrial Network Gateways, Smart Power Grid Concentrators, and Automated Machine Monitors
- Digital Audio Systems, Sound Effect Processors, and Advanced Multi-Channel Mixers
- Smart Building Automation Control Access Nodes, Biometric Readers, and Security Cameras
- Mobile Instrumentation Devices, Portable Health Monitors, and Handheld Electronic Testing Tools
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your current stock inventory of the ADSP-BF527BBCZ-5A completely authentic and factory-new?
A: Yes, we guarantee that all ADSP-BF527BBCZ-5A processors in our inventory are 100% brand-new, factory-original products from Analog Devices Inc., handled and stored under strict anti-static ESD shielding guidelines.
Q2: What is decoded by the specific “-5A” identifier at the end of the part number string?
A: The “5” designator represents the 533 MHz maximum core processing frequency tier for the Blackfin family model. The “A” suffix designates the specific 208-ball CSPBGA physical layout configuration package layout.
Q3: What role does the built-in Lockbox technology perform on this Blackfin chip platform?
A: The Lockbox security architecture incorporates a hardware-enforced secure state environment that allows developers to run authenticated code, protect critical intellectual property coefficients, and deploy digital signatures securely via integrated One-Time Programmable (OTP) memory matrices.
Q4: How can our technical group request structural driver software libraries, hardware evaluation platform options, or bulk wholesale quotations?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
