ADSP-BF561SBBZ600
ADSP-BF561SBBZ600
| Part Number | ADSP-BF561SBBZ600 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Embedded – DSP (Digital Signal Processors) |
| Description | Symmetrical Dual‑Core Blackfin Processor, 600 MHz, 328 KB On‑Chip SRAM, Dual PPI Video Interface, 297‑ball PBGA Package, Industrial Grade, EOL Discontinued. |
| Stock Status | In Stock (EOL, only surplus stock available) |
| Origin | Original Factory |
Product Overview
ADSP‑BF561SBBZ600 is ADI Blackfin symmetrical dual‑core DSP. Two 600MHz cores achieve up to 2400 MMACS performance, integrating 328KB L1/L2 on‑chip SRAM, dual PPI video and SPORT audio interfaces. Packaged in 297‑ball PBGA (27×27 mm) industrial grade. EOL discontinued, only surplus stock for machine vision, multi‑channel audio and real‑time embedded media systems.
Core Advantages
Dual‑Core Symmetrical Blackfin Processing Engine
Dual independent 600MHz DSP cores, support symmetric multi‑processing for parallel signal processing, media decoding and system control.
Built‑In Dynamic Power Management
On‑chip regulator supports dynamic voltage‑frequency scaling to lower power consumption for embedded devices.
Rich Video & Audio Peripherals
Dual ITU‑R656 PPI ports and multi‑channel SPORT audio, with high‑speed DMA, connect directly to image sensors and audio codecs.
Complete Memory Sub‑System
328KB on‑chip SRAM plus SDRAM / asynchronous memory controller, low‑latency data access for media processing workloads.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Contained (Suffix “Z” marking, actual part contains lead, follow official datasheet) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 297‑ball PBGA (27×27 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

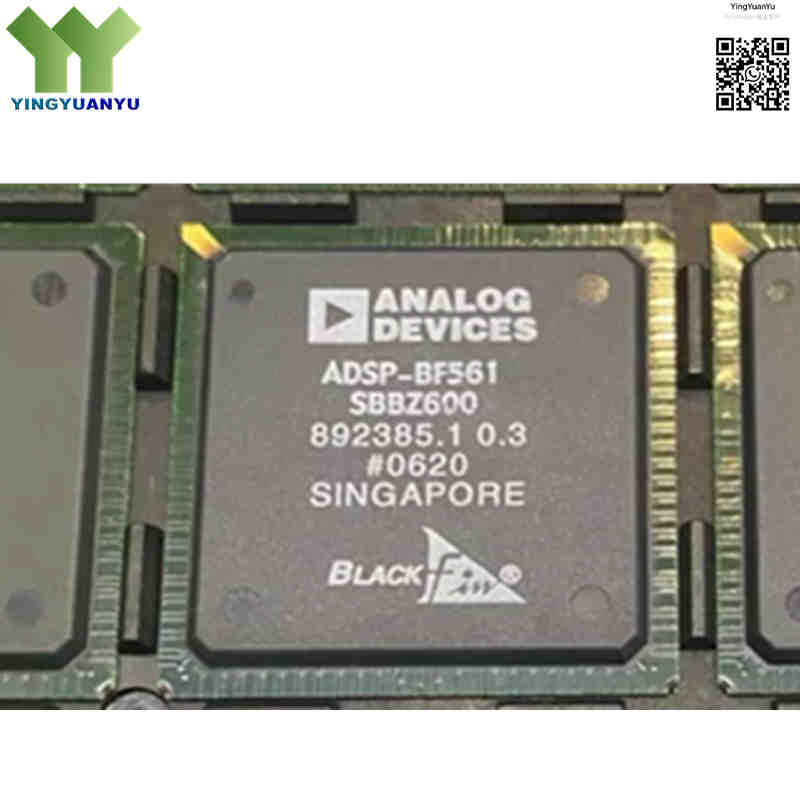

| Surface Marking / Silkscreen | ADSP-BF561SBBZ600 / ADI Logo |
| Core Architecture | Blackfin Dual‑Core |
| Clock Frequency | 600 MHz (Per Core) |
| Performance | Up to 2400 MMACS (Total Dual‑Core) |
| On‑Chip RAM | 328 KB (L1 + L2 SRAM) |
| Peripheral Interfaces | 2×PPI (Parallel Video), 2×SPORT (Audio), SPI, UART, 12‑Timers, 48×GPIO, Dual‑Watchdog, DMA Controllers |
| External Memory Interface | Asynchronous Memory, SDRAM Controller, 32‑bit External Data Bus |
| Core Voltage | 0.8 V ~ 1.2 V (Internal On‑Chip Regulator) |
| I/O Voltage | 2.5 V / 3.3 V |
| Number Of GPIO | 48 |
| DMA Controller | Dual 16‑Channel DMA Controller |
| Operating Temperature | -40°C to +85°C (Industrial Grade) |
| Lifecycle Status | EOL / Discontinued by Manufacturer |
Typical Applications
- Digital Video Compression and Processing (Security Cameras, Video Conferencing, DVRs)
- Industrial Inspection Systems, Machine Vision, and Optical Barcode Scanners
- Multi‑Channel Digital Audio Processing, Mixers, and Acoustic Signal Analysis
- Biomedical Patient Monitoring Equipment and Diagnostic Devices
- Automotive Infotainment, Vision Systems, and Broadband Communications
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix “Z” mean for ADSP‑BF561SBBZ600?
A: Suffix‑Z is nominally lead‑free marking, but ADSP‑BF561SBBZ600 is lead‑containing. Do not judge only by suffix letter, follow ADI official datasheet.
Q2: What is the difference between SBBZ600 and SKBZ600?
A: SBBZ600：297‑ball PBGA 27×27 mm；SKBZ600：different PBGA ball‑map. They are pin‑out incompatible, no drop‑in replacement, PCB needs redesign.
Q3: Can two cores of ADSP‑BF561 run independently?
A: Yes. Each core has independent L1 memory and interrupt controller, supports SMP symmetric multi‑processing for separate tasks.
Q4: Which IDE supports BF561 DSP?
A: Supported by CrossCore Embedded Studio(CCES) and legacy VisualDSP++5.0, including C/C++ compiler, debugger and DSP libraries.
Q5: Is ADSP‑BF561SBBZ600 still in production?
A: EOL discontinued by ADI. No new production, only surplus stock available. Confirm stock before large‑volume order.
Q6: Any pin‑to‑pin drop‑in replacement for BF561SBBZ600?
A: No direct pin‑compatible substitute. For function migration, evaluate ADSP‑BF548 / BF549, but requires PCB & software heavy redesign.
Q7: Why some sites list on‑chip RAM as 32KB?
A: It is incorrect data. BF561 total on‑chip SRAM is 328KB(L1+L2). Always refer to official datasheet.
Q8: How to get datasheet, footprint and bulk price?
A: Submit Quick Inquiry form, we provide datasheet link, stock status and volume quotation for ADSP‑BF561SBBZ600.
