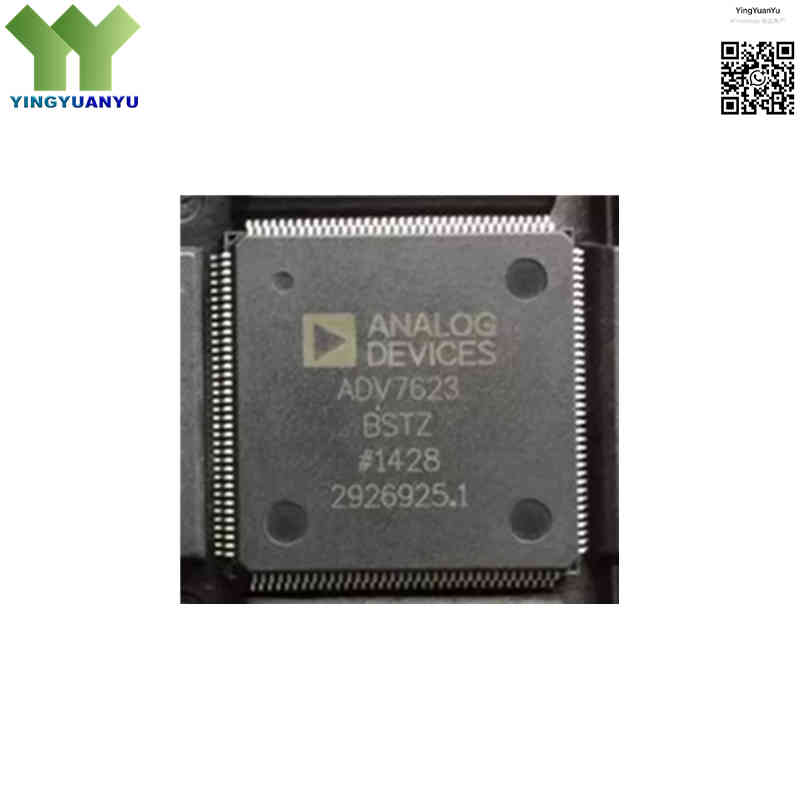

ADV7623BSTZ-RL
ADV7623BSTZ-RL
| Part Number | ADV7623BSTZ-RL |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Linear – Video Processing |
| Description | HDMI 1.4a Transceiver featuring a 4:1 multiplexed input receiver, an integrated transmitter with Audio Return Channel (ARC), OSD controller, and full 3D video support, housed in a 144-lead LQFP package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADV7623BSTZ-RL is a high-performance HDMI 1.4a transceiver from Analog Devices. It integrates 4-input HDMI receiver and 1-output HDMI transmitter, supporting 3D video, 1080p deep color, ARC audio and built-in OSD. Equipped with HDCP repeater function, I2S/SPDIF audio interface, it adopts compact 144-pin exposed pad LQFP for A/V equipment, media hubs and home theater signal processing.
Core Advantages
Four-Input Integrated Multiplexing Network
Houses a native 4:1 HDMI input multiplexer coupled with automatic adaptive equalization, enabling clean, low-jitter switching across lengthy HDMI cable installations up to 30 meters.
Hardware-Based Character OSD Generation
Features an on-board On-Screen Display engine capable of creating localized graphics, status displays, and system control menus without burdening the host processor or adding external frame memory components.
Advanced HDMI 1.4a Audio Routing Fabric
Integrates dedicated physical support for Audio Return Channel (ARC), High-Bit-Rate (HBR) compression audio schemes, and simultaneous I2S/SPDIF audio extraction and insertion configurations.
Robust HDCP 1.4 Content Protection
Equipped with internal nonvolatile memory keys that manage complete HDCP encryption and decryption layers, supporting highly complex upstream repeater chains with high network stability.
Key Specifications
| Brand | Analog Devices Inc. HDMI Interface Transceiver Family |
|---|---|
| Full Part Number | ADV7623BSTZ-RL |
| RoHS Status | RoHS Compliant / Lead-Free / Green Matte-Tin Terminations Verified (“Z” Suffix) |
| ECCN Classification | EAR99 |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, Pinout Footprint available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 144-LQFP (20mm × 20mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | ADV7623BSTZ Marking |
| Interface Protocol | HDMI 1.4a Specification Compliant, DVI 1.0 Backward Compatible |
| Secondary Control Interface | I2C, I2S, SPI, CEC 1.4, HPD Hot Plug Detect, EDID Read/Write |
| Max TMDS Clock Frequency | 225 MHz maximum pixel clock rate |
| Maximum Video Resolution | 1080p @ 60Hz 12-bit Deep Color, UXGA (1600 × 1200), all standard 3D frameworks |
| Input/Output Ports | 4x Multiplexed HDMI Inputs, 1x Repeater HDMI Output |
| Digital Audio Support | Up to 8-channel I2S, S/PDIF I/O, multi-channel HBR audio bypass, ARC Audio Return Channel |
| On-Screen Display (OSD) | Internal Character-Based OSD Generator with LUT & font RAM |
| Core Power Supply Input | 1.8 V Nominal Digital/Analog Core Supply |
| Interface Ring Supply Voltage | 3.3 V I/O & HDMI Driver Supply Voltage |
| Typical Operating Current (ADV7623BSTZ-RL) | 82uA |
| Max Static Current (ADV7623BSTZ bare die tray) | 481mA |
| Operating Temperature Range | 0°C to +70°C Commercial Grade (TA) |
| Tape & Reel Pack Spec | 500 pieces per original factory reel, MOQ 1 reel for bulk order |
Typical Applications
- Advanced Audio/Video Receivers (AVR) and Premium Home Theater Control Panels
- Multi-Source HDMI Switch Boxes, Video Distribution Splitters, and A/V Matrix Routers
- Professional Digital Signage Controllers, Presentation Switchers, and Video Wall Processors
- High-Definition Video Conferencing Codecs and Commercial Media Streaming Consoles
- Automotive Rear-Seat Entertainment Hubs and Central Informational Media Links
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheets, sample requests, stock check, bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your ADV7623BSTZ-RL stock 100% original genuine?
A1: All stock are 100% brand new original ADI parts sourced from factory directly. Chips are anti-static stored, packed with factory moisture barrier tape & reel; reel to avoid ESD damage during transit.
Q2: What do suffix “BSTZ” and “-RL” stand for?
A2: BST = 0℃~70℃ commercial temp, exposed thermal pad LQFP; Z = lead-free RoHS finish; -RL = tape & reel packing for SMT mass production.
Q3: Does this chip support HDCP keys and repeater function?
A3: Yes, pre-programmed HDCP 1.4 keys built-in. It acts as full HDCP repeater, decoding encrypted video, extracting digital audio and re-encrypting signal for downstream display devices.
Q4: Why must the exposed thermal pad (ePAD) be grounded?
A4: The chip runs up to 225MHz TMDS clock and generates heat. Soldering ePAD to PCB copper ground helps heat dissipation and stable RF ground for high-speed circuits.
Q5: What’s your minimum order quantity and package spec?
A5: Factory reel standard MOQ is 500pcs; small sample orders are available, shipped with separate anti-static packaging.
Q6: How fast can you deliver the ADV7623BSTZ-RL?
A6: In-stock items ship within 4 working hours; bulk large orders take 7-9 working days to arrange full reel stock.
Q7: Can you support BOM full list matching for my project?
A7: Yes, we provide one-stop BOM kitting service. Send your full BOM list via inquiry form, we will quote all required components together.
Q8: Is this transceiver compatible with 3D and 1080p deep color signals?
A8: Fully compatible with HDMI 1.4a standards, supports 1080p 12-bit deep color, all mainstream 3D video formats and ARC audio return channel.
