ADXL362BCCZ-RL7
ADXL362BCCZ-RL7
| Part Number | ADXL362BCCZ-RL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Sensors, Transducers > Accelerometers |
| Description | Ultra-low power, 3-axis MEMS accelerometer with digital SPI output, featuring less than 2 μA typical (1.8 μA @ 2.0V) current consumption at full 100 Hz ODR, integrated wake-up switch, and multi-mode 512-sample FIFO memory in a compact 16-TFLGA package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADXL362BCCZ-RL7 is an ultra-low-power 3-axis MEMS accelerometer from ADI for battery-powered IoT and wearables. It consumes only 1.8 μA @ 100Hz ODR (2.0V supply) and 270 nA in motion wake-up mode. It continuously samples all axes to avoid signal aliasing, with built-in 12-bit ADC, temperature sensor, motion detection engine and 512-sample FIFO. Packaged in compact 16-TFLGA and shipped on 7-inch tape & reel, it delivers high resolution with ultra-long battery life for portable tracking devices.
Core Advantages
Ultra-Low Power Consumption Profile
Typical 1.8 μA operating current at 100 Hz ODR (2.0V supply); motion wake-up mode drops to 270 nA, drastically extending battery runtime for portable sensor hardware.
Full Continuous Sampling Architecture
Constant full-bandwidth sampling on all three axes without duty cycling, avoids high-frequency vibration aliasing and delivers consistent accurate acceleration readings.
Autonomous Motion-Triggered Wake-Up Switch
Configurable acceleration threshold and timing registers detect impact or static inactivity independently, allowing host microcontroller to remain in full sleep until valid motion events occur.
Deep Embedded FIFO Memory Block
Built-in multi-mode 512-sample FIFO buffer stores historical sensor data automatically, reduces MCU wake-up frequency and cuts SPI communication overhead.
Key Specifications
| Brand | Analog Devices Micropower Digital MEMS Accelerometer Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Halogen-Free Materials Sourced (“Z” Suffix Certified) |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 16-TFLGA (3mm × 3.25mm × 1.06mm, 0.50mm pin pitch) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead-Free Reflow Solder) |

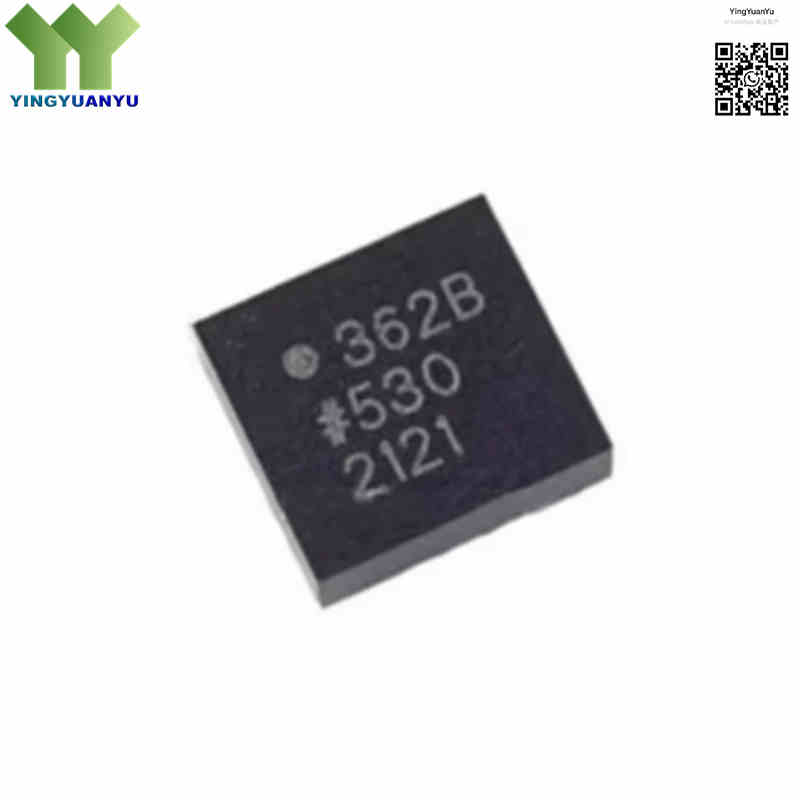

| Surface Marking / Silkscreen | 362B Marking |
| Measurement Axes | 3-Axis (X / Y / Z) Full Acceleration Sensing Channels |
| Noise Density | 55 µg/√Hz Low Noise Floor (100Hz ODR, ±2g Measurement Range) |
| FIFO Storage | 512 Sample Multi-Mode On-Chip Data FIFO Buffer |
| Self-Test Function | Built-In Digital Self-Test for Calibration & Hardware Fault Verification |
| Interrupt Pins | 2 Independent Configurable Hardware Interrupt Output Pins |
| Acceleration Range Modes | Software-Selectable Dynamic Ranges: ±2 g, ±4 g, and ±8 g Scales |
| Digital Output Resolution | 12-Bit High-Resolution Data Format (1 mg/LSB scale factor at ±2 g range) |
| Digital Interface Bus | Standard 3-Wire and 4-Wire SPI (Serial Peripheral Interface) up to 8 MHz Clock Rate |
| Output Data Rate (ODR) Range | Programmable from 6.25 Hz up to 400 Hz continuous update cycles |
| Supply Voltage Range (V_S) | 1.6V to 3.5V continuous operational voltage range matching low-power MCU logic rails |
| Integrated Special Modules | On-chip 12-Bit Temperature Sensor and Independent Self-Test Actuation pathways |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial and Commercial Reliability Certified) |
Typical Applications
- Wearable Healthcare Monitors, Remote Medical Diagnostic Patches, and Activity Fitness Trackers
- Industrial Internet of Things (IoT) Asset Monitors, Smart Cargo Tracking Nodes, and Container Loggers
- Energy Harvesting Wireless Sensor Grids, Structural Integrity Transmitters, and Smart Metering Controls
- Motion-Activated Battery Power Switches for Consumer Handsets, Smart Peripherals, and Electronic Keys
- Animal Tracking Collars, Wildlife Activity Loggers, and Multi-Axis Environmental Orientation Switches
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the ADXL362BCCZ-RL7 100% original and genuine?
A: Yes, we guarantee that all ADXL362BCCZ-RL7 sensors in our warehouse are 100% brand-new, factory-original products directly from Analog Devices Inc. (ADI). Every production lot undergoes strict incoming visual and orientation inspections, and is stored and shipped in original moisture-barrier electrostatic shielding bags to fully protect the LGA lands from transport abrasion or oxidation.
Q2: What do the trailing designations “Z” and “RL7” indicate within this ADI ordering code?
A: The character “Z” validates that the component features a 100% lead-free, RoHS-compliant matte tin finish. Suffix “RL7” stands for 7-inch diameter tape-and-reel packaging with standard 1500 pieces per reel, fully compatible with automated SMT pick-and-place assembly equipment.
Q3: How does the ADXL362 avoid signal aliasing while maintaining such a low power footprint?
A: Conventional low-power accelerometers rely on duty-cycled intermittent sampling, which causes high-frequency vibration signals to alias into low-frequency measurement bands. ADXL362 adopts ultra-low-current continuous full-band sampling across all axes with integrated anti-aliasing filters, capturing complete vibration data without extra power consumption.
Q4: How can our engineering group secure the full register mapping documentation or request a large volume price breakdown?
A: Please fill your project specifications and target purchase quantity into the Quick Inquiry form on this page. Our inertial sensor technical support team will send official datasheets, full register docs and customized tier bulk pricing within 24 hours.
