| Part Number | AH102A-G |
|---|---|
| Manufacturer | Qorvo (Formerly TriQuint / WJ Communications) |
| Category | RF / Microwave > Integrated Circuits (ICs) > RF Amplifiers / Gain Blocks |
| Description | GaAs MESFET RF Amplifier, 350‑3000 MHz, +27 dBm P1dB, 50Ω Internal Matched, SOT‑89(TO‑243C) Package, Only Stock Available. |
| Stock Status | In Stock (Discontinued component) |
| Origin | Original Factory |
Product Overview
AH102A‑G is a broadband medium‑power GaAs MESFET RF amplifier from Qorvo (former WJ / TriQuint). It covers 350‑3000 MHz with 50Ω fully internal matching, no external matching network required. Typical performance: +27 dBm P1dB, 14.5 dB gain, +46 dBm OIP3, single +9 V supply. Housed in SOT‑89‑3 (TO‑243C) package with thermal tab. This device is discontinued, only leftover stock available.
Core Advantages
50Ω Fully Internal Matched
Integrated input‑output matching, reduces peripheral components and simplifies PCB layout.
Wide Operating Bandwidth
350 MHz‑3000 MHz, supports multi‑band wireless transmit applications.
Excellent Linearity
+46 dBm high OIP3, fits digital multi‑carrier RF transmit circuits.
Compact Thermal‑enhanced Package
SOT‑89‑3 with thermal tab, easy soldering and reliable heat dissipation.
Key Specifications
| Brand | Qorvo (TriQuint / WJ Communications) |
|---|---|
| RoHS Status | RoHS Compliant / Green (-G Suffix) |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | SOT‑89‑3 |
| Mounting Type | Surface Mount Device (SMD/SMT) |

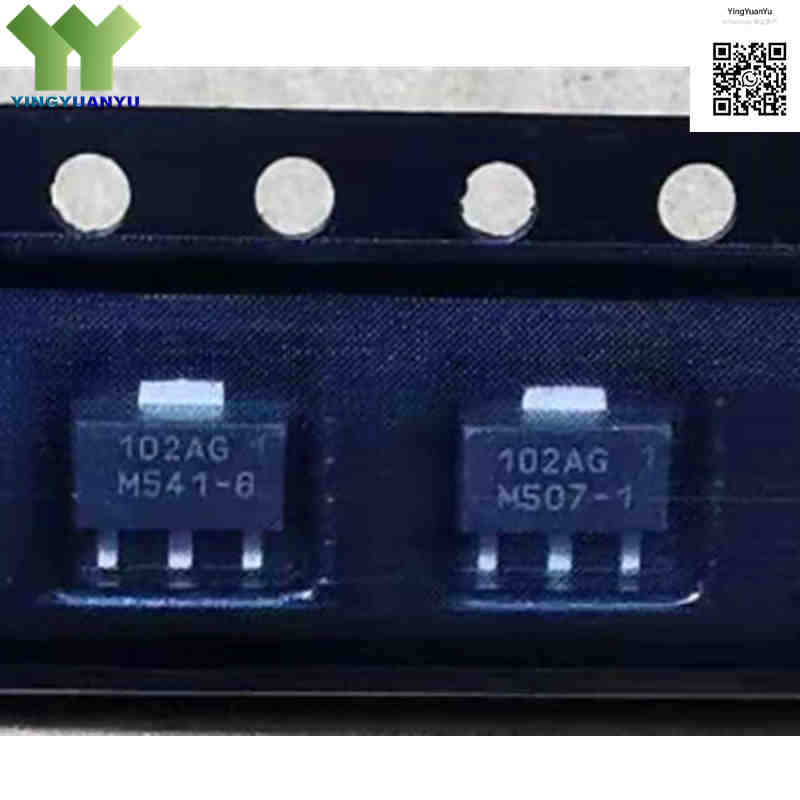

| Surface Marking / Silkscreen | 102AG Marking |
| Technology | GaAs MESFET |
| Frequency Range | 350 MHz to 3000 MHz |
| Output Power (P1dB) | +27 dBm (Typ.) |
| Output IP3 (OIP3) | +46 dBm (Typ.) |
| Power Gain | Typ. 14.5 dB |
| Noise Figure | Typ. 3 ~ 4 dB (varies with frequency) |
| Impedance | 50Ω Internal Matched, no external matching needed |
| Operating Voltage | +9.0 V DC Nominal (Recommended range 7‑9V) |
| MTTF | >1000 Years |
| Operating Temperature Range | -40°C to +85°C |
| Lifecycle Status | Discontinued, only leftover stock available |
| Packaging Format | Tape & Reel / Tube anti‑static packaging |
Typical Applications
- Mobile communication infrastructure driver amplifier stage
- W‑LAN, ISM band, WLL and RFID radio transmitters
- Broadband wireless equipment, pre‑distortion amplifier circuits
- RF repeater, laboratory test & measurement system
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days (subject to stock confirmation) |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, alternative device recommendation or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does “-G” suffix stand for on AH102A‑G?
A: “-G” is Green / RoHS lead‑free version. Electrical performance is identical to standard AH102A.
Q2: Is AH102A‑G still in mass production?
A: Officially discontinued by Qorvo. Only leftover stock is available, no new production runs.
Q3: Why is no external matching circuit needed?
A: 50‑ohm input / output matching is integrated inside chip. Direct connection to 50‑ohm system, saves PCB matching components.
Q4: What comparable cross‑brand gain‑block devices exist?
A: Reference candidates: ADL5606 (Analog Devices), ERA‑55A+ (Mini‑Circuits). Not pin‑to‑pin compatible. Re‑simulation and hardware test are required before replacement.
Q5: Can AH102A‑G directly swap other SOT‑89 RF amplifiers?
A: Direct drop‑in replacement is not recommended. Pinout, bias and internal matching differ even with same package. Verify hardware before use.
Q6: How to handle thermal tab on SOT‑89‑3 package?
A: Solder thermal tab firmly to PCB ground copper for heat dissipation. Add multiple thermal vias for continuous high‑power operation.
Q7: How can I get formal replacement suggestions?
A: Submit your requirements including frequency, output power, supply voltage and package constraints via inquiry form. Our RF engineer will recommend candidate parts.
