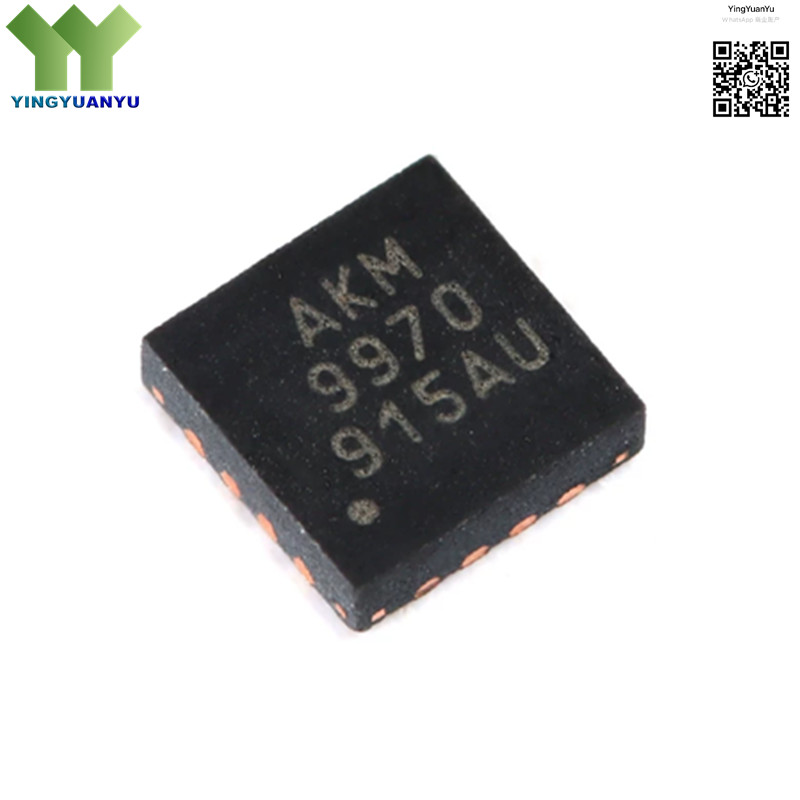

AK09970N
AK09970N
| Part Number | AK09970N |
|---|---|
| Manufacturer | AKM (Asahi Kasei Microdevices) |
| Category | Sensors; Magnetic Sensors; 3-Axis Magnetometer |
| Description | Tri-Axis Magnetic Sensor IC, Digital Output, I2C/SPI Interface, 16-QFN Package, Surface Mount |
Product Overview
The AK09970N is a high-sensitivity, low-power 3-axis magnetic sensor IC designed for precise magnetic field measurement in compact and battery-operated devices. It features a selectable high-resolution mode (±36 mT, 1.1 μT/LSB) and wide-range mode, 16-bit digital output per axis, and dual I2C/SPI communication interfaces for flexible system integration. The device integrates Hall elements, amplifier chains, ADCs, and interrupt logic, supporting programmable magnetic event thresholds and data-ready alerts. Housed in a tiny 16-QFN (3x3mm) surface-mount package, it delivers reliable performance for IoT, smart home, and industrial magnetic sensing applications.
| Key Specifications | |
|---|---|
| Brand | AKM (Asahi Kasei Microdevices) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | 16-QFN (3x3mm), Exposed Pad |
| Mounting Type | Surface Mount (SMD) |
| Axis Configuration | 3-Axis (X, Y, Z) |
| Measurement Range | ±36 mT (High Resolution Mode) |
| Sensitivity | 1.1 μT/LSB (Typical) |
| Resolution | 16-bit per axis |
| Interface | I2C, SPI |
| Supply Voltage | 1.7V ~ 3.6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- IoT Sensor Nodes & Smart Home Devices
- Door/Window Magnetic Contact Sensors
- Smart Meters & Magnetic Tamper Detection
- Portable & Battery-Powered Electronics
- Industrial Magnetic Field Monitoring
- Compass & Navigation Systems
- AR/VR Position Tracking
- Consumer Electronics & Wearable Devices
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
