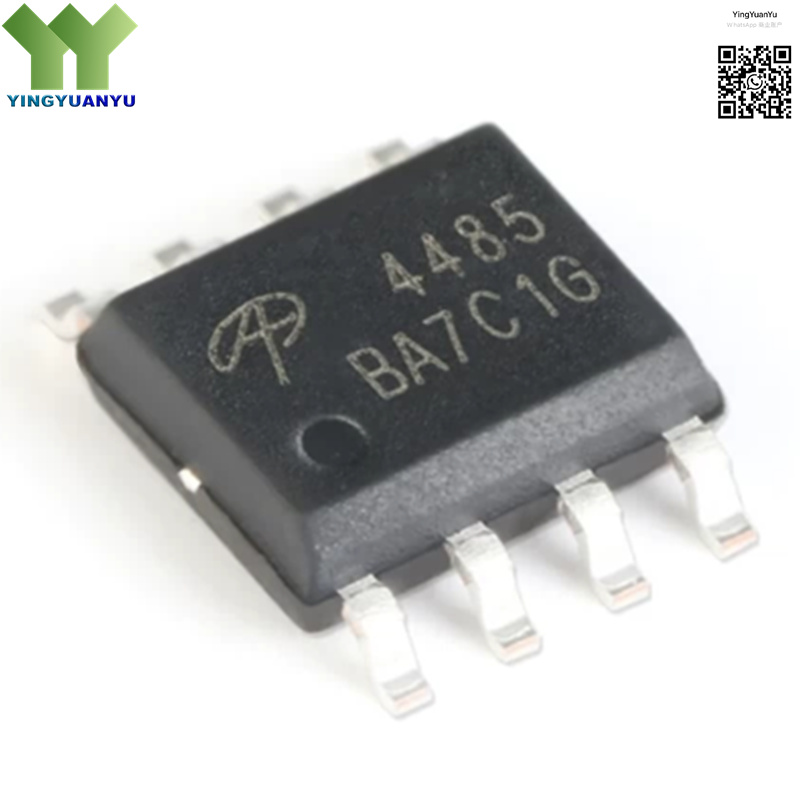

AO4485
AO4485
| Part Number | AO4485 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, 40V, 10A,15 mΩ, Low Rds(on), SOIC-8 Package |
Product Overview
The AO4485 is a high-efficiency P-channel enhancement mode power MOSFET designed by Alpha & Omega Semiconductors. It uses advanced trench MOSFET technology to provide low on-state resistance, fast switching speed, and excellent thermal performance. The device offers high reliability, low power loss, and stable operation in various power switching applications. Its compact SOIC-8 surface-mount package supports high-density PCB design, making it ideal for industrial, consumer, and communication power systems.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | 4485 |
| Drain-Source Voltage (Vdss) | 40 V |
| Continuous Drain Current (Id) | 10 A |
| On-State Resistance (Rds(on)) | 15 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- DC-DC Converters and Boost/Buck Regulators
- Load Switching and Power Distribution Modules
- Motor Drive and Control Circuits
- Battery Protection and Management Systems
- Switching Power Supplies and Adapters
- Industrial Control Equipment
- Consumer Electronic Power Devices
- LED Lighting Drivers
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
