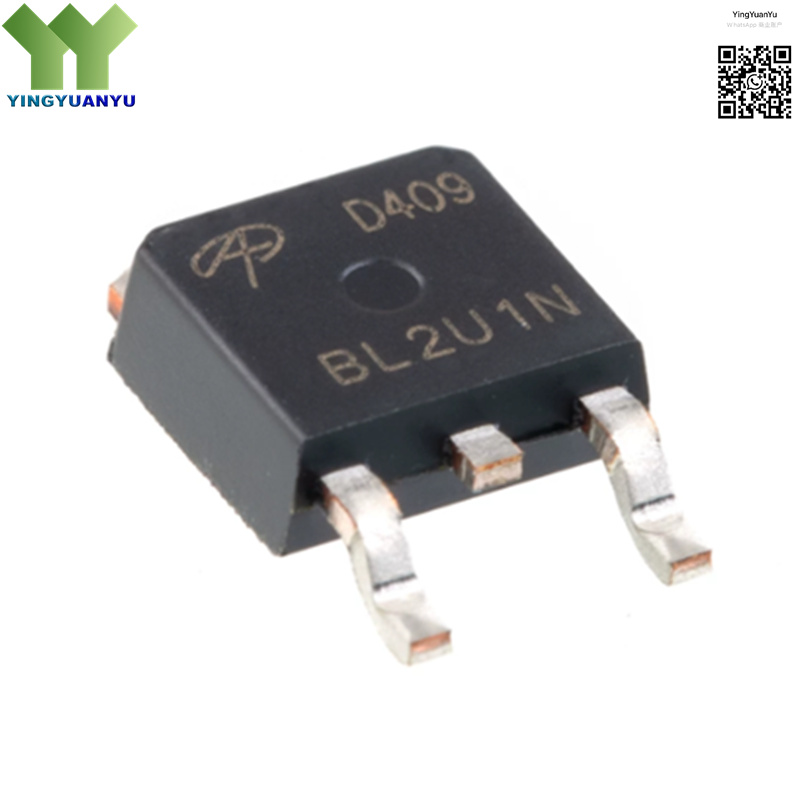

AOD409
AOD409
| Part Number | AOD409 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -60V, -26A,55 mΩ, Low Rds(on), TO-252-2 (DPAK) Surface Mount Package |
Product Overview
The AOD409 is a high-performance P-channel enhancement mode power MOSFET from Alpha & Omega Semiconductors, utilizing advanced trench technology to deliver ultra-low on-resistance, fast switching speed, and excellent thermal performance. It features high current capability, low power dissipation, and stable operation across a wide temperature range. The TO-252 surface-mount package ensures high power density and easy integration into power management, load switching, and motor control applications.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | D409 |
| Drain-Source Voltage (Vdss) | -60 V |
| Continuous Drain Current (Id) | -26 A |
| On-State Resistance (Rds(on)) | 55 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High-Efficiency Power Switching & Load Control
- Battery Management & Over-Current Protection
- DC-DC Converters & Voltage Regulators
- Motor Drive & Control Circuits
- Switching Power Supplies & Adapters
- Industrial Power Control Equipment
- LED Lighting Driver Systems
- Automotive & Consumer Electronic Power Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
