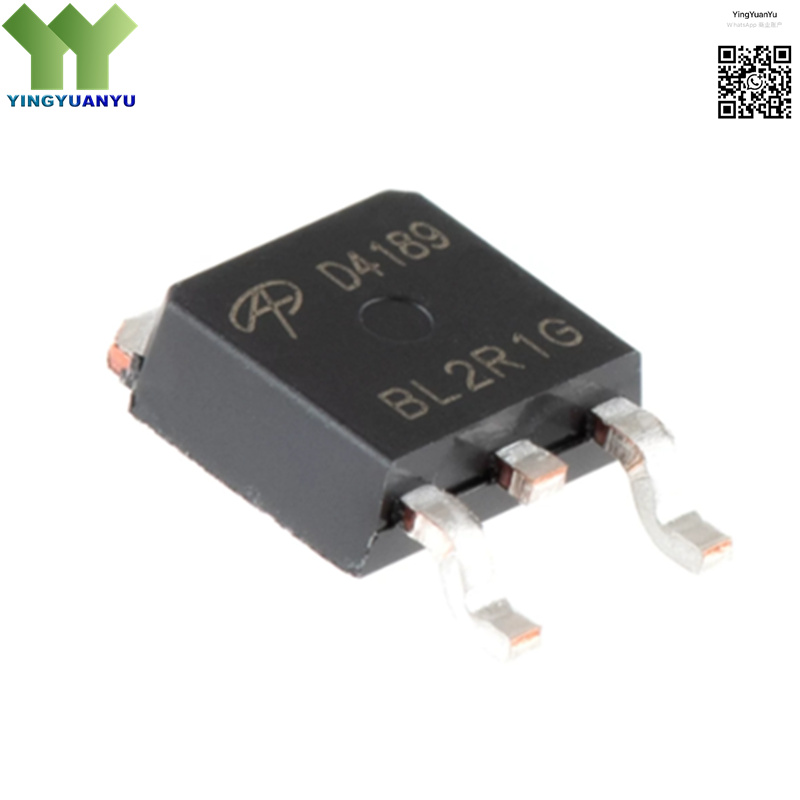

AOD4189
AOD4189
| Part Number | AOD4189 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, 40V, 40A,22 mΩ, Low Rds(on), TO-252-2 (DPAK) Surface Mount Package |
Product Overview
The AOD4189 is a high-current, high-efficiency P-channel enhancement mode power MOSFET manufactured by Alpha & Omega Semiconductors. Utilizing advanced trench MOSFET technology, it provides ultra-low on-state resistance, high current handling capability, fast switching speed, and superior thermal performance. The device offers robust reliability, low power dissipation, and stable operation in demanding power management applications, with a compact TO-252 surface-mount package for high-density PCB designs.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252-2 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | D4189 |
| Drain-Source Voltage (Vdss) | 40 V |
| Continuous Drain Current (Id) | 40 A |
| On-State Resistance (Rds(on)) | 22 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High-Current DC-DC Converters
- Power Switching & Load Management Systems
- Battery Protection & Management Modules
- Motor Drive & Control Circuits
- High-Efficiency Power Supply Units
- Industrial Power Control Equipment
- Portable Power Tools & Devices
- Automotive & Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
