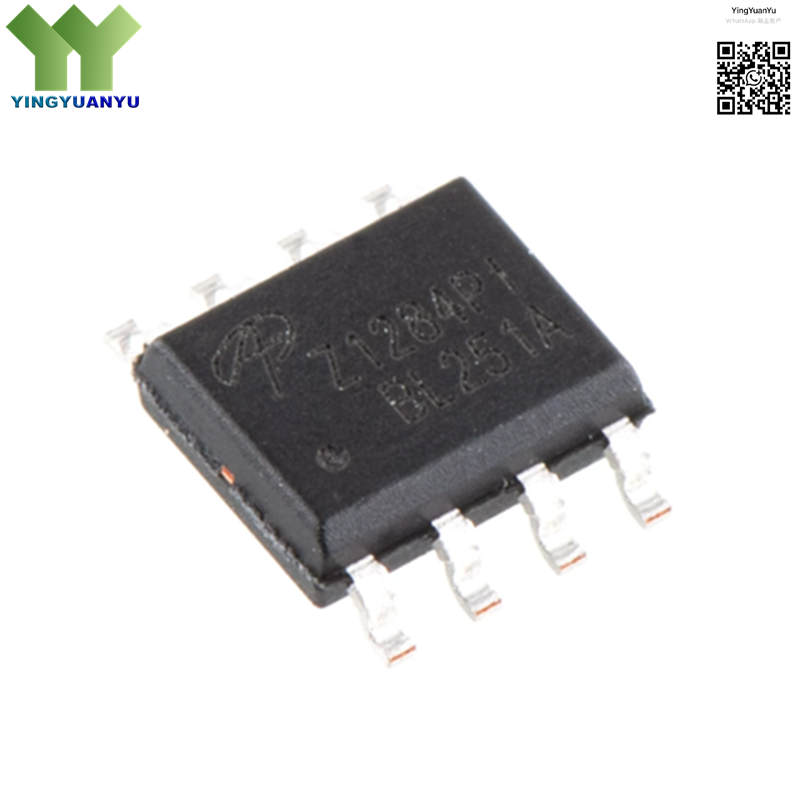

AOZ1284PI
AOZ1284PI
| Part Number | AOZ1284PI |
|---|---|
| Manufacturer | AOS (Alpha & Omega Semiconductor) |
| Category | Power Management ICs; Synchronous Buck Regulator |
| Description | High Efficiency Synchronous DC-DC Buck Converter, 4A Output, SOIC-8-EP Surface Mount Package |
Product Overview
The AOZ1284PI is a high-performance synchronous buck converter designed by Alpha & Omega Semiconductor. It integrates internal power MOSFETs, featuring high conversion efficiency, wide input voltage range and excellent load regulation. With built-in over-current, over-temperature and short-circuit protection circuits, this device ensures stable and safe operation. The compact package is suitable for various low-voltage DC power supply and step-down conversion applications.
| Key Specifications | |
|---|---|
| Brand | AOS (Alpha & Omega Semiconductor) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | Z1284PI Marking |
| Input Voltage Range | 3V~36V |
| Output Current | 4A Continuous |
| Switching Frequency | 500 kHz |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Industrial DC Power Supplies
- Server and Telecom Equipment
- Consumer Electronic Devices
- Portable Instrument Power Modules
- Automotive Auxiliary Power Circuits
- FPGA and Microcontroller Power Rails
- Low Voltage Step-Down Conversion
- Embedded System Power Management
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
