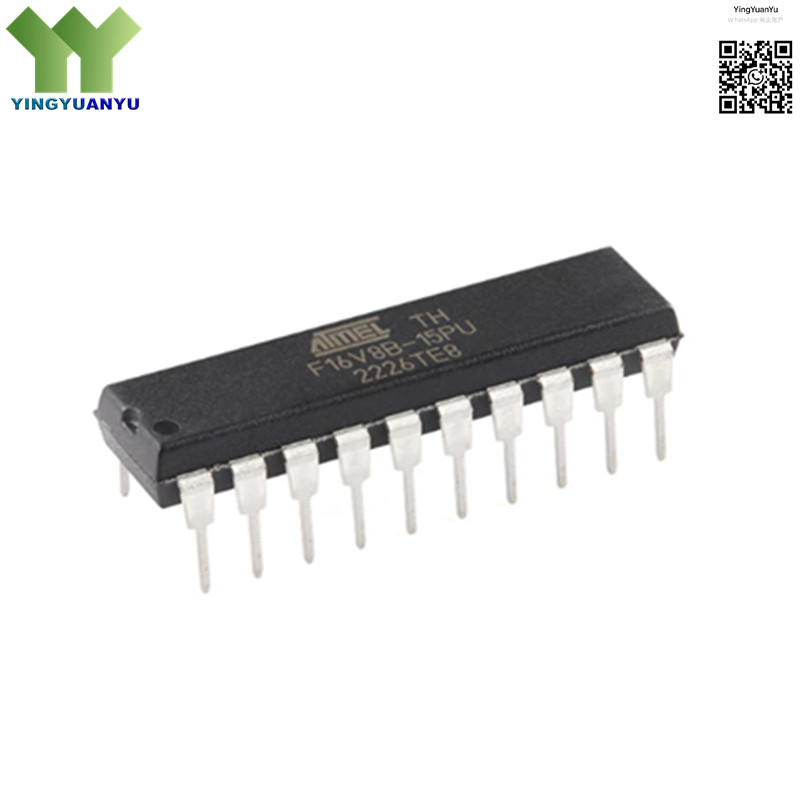

ATF16V8B-15PU
ATF16V8B-15PU
| Part Number | ATF16V8B-15PU |
|---|---|
| Manufacturer | Microchip Technology |
| Category | Programmable Logic ICs; Simple Programmable Logic Device (SPLD) |
| Description | High-Performance EE CMOS Generic Array Logic Device, 15ns Speed, DIP-20 Package, Through Hole |
Product Overview
The ATF16V8B-15PU is a versatile, high-performance electrically erasable CMOS generic array logic (GAL) device designed for flexible digital logic implementation. It combines the advantages of reprogrammable non-volatile memory, fast operating speed, and low power consumption, supporting 100% compatibility with standard 16V8 fuse maps. The device features 15ns maximum propagation delay, wide operating voltage range, and robust reliability for industrial and commercial digital circuits. Housed in a DIP-20 through-hole package, it offers easy prototyping, replacement, and integration into legacy and new digital system designs.
| Key Specifications | |
|---|---|
| Brand | Microchip Technology |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DIP-20 |
| Mounting Type | Through Hole |
| Propagation Delay | 15 ns (Max) |
| Operating Voltage | 4.5V ~ 5.5V |
| Macro Cells | 8 Macro Cells |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Digital Logic Circuit Design & Prototyping
- Industrial Control Systems
- Legacy Equipment Replacement & Repair
- Consumer Electronic Control Modules
- Automotive Digital Interface Circuits
- Test & Measurement Equipment
- Embedded System Logic Functions
- Custom Combinational & Sequential Logic
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
