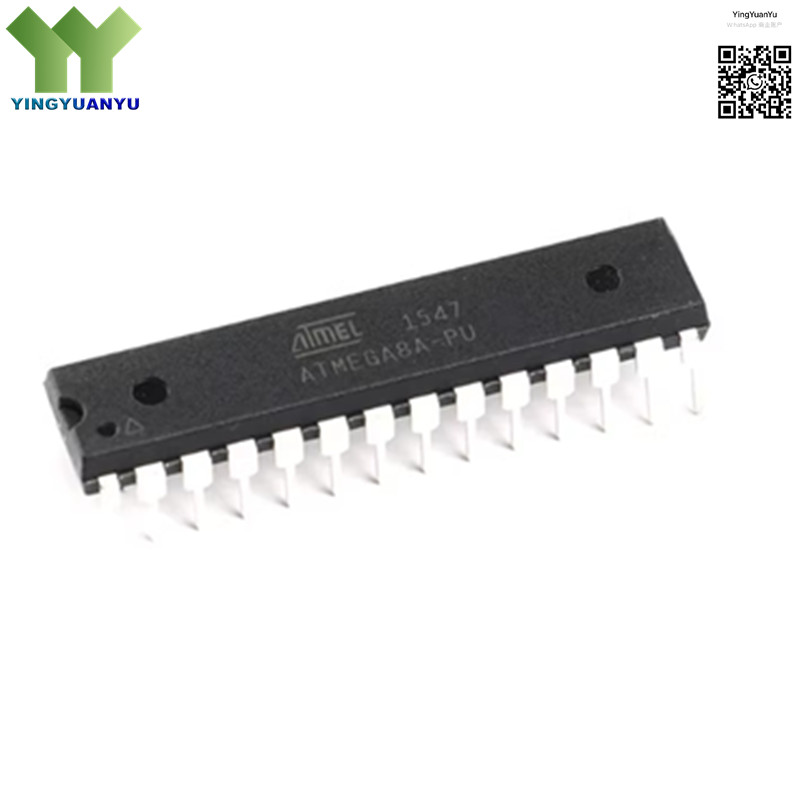

ATMEGA8A-PU
ATMEGA8A-PU
| Part Number | ATMEGA8A-PU |
|---|---|
| Manufacturer | Microchip Technology |
| Category | 8-bit Microcontrollers; AVR RISC MCU |
| Description | 8-bit AVR Microcontroller, 8KB Flash, 1KB SRAM, 512B EEPROM, 16MHz, DIP-28 Through-Hole Package |
Product Overview
The ATMEGA8A-PU is a high-performance, low-power 8-bit AVR RISC-based microcontroller designed for embedded control, prototyping, and educational applications. It operates at up to 16MHz with a wide voltage range of 2.7V to 5.5V, featuring 8KB in-system programmable flash memory, 1KB SRAM, 512B EEPROM, and integrated peripherals including 10-bit ADC, PWM, UART, SPI, and I2C. The device offers robust performance, high reliability, and easy through-hole mounting for breadboard prototyping and small-scale embedded systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Microchip Technology |
| Core Architecture | 8-bit AVR RISC |
| Clock Speed | Up to 16 MHz |
| Memory | 8KB Flash / 1KB SRAM / 512B EEPROM |
| Package Type | DIP-28 (Through-Hole) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Arduino & Educational Prototyping
- Breadboard Embedded Projects
- Low-Power Sensor & Control Systems
- Consumer Electronics & Home Appliances
- Industrial Automation Modules
- LED Lighting & Motor Control
- Portable Battery-Powered Devices
- DIY Electronics & Hobby Projects
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
