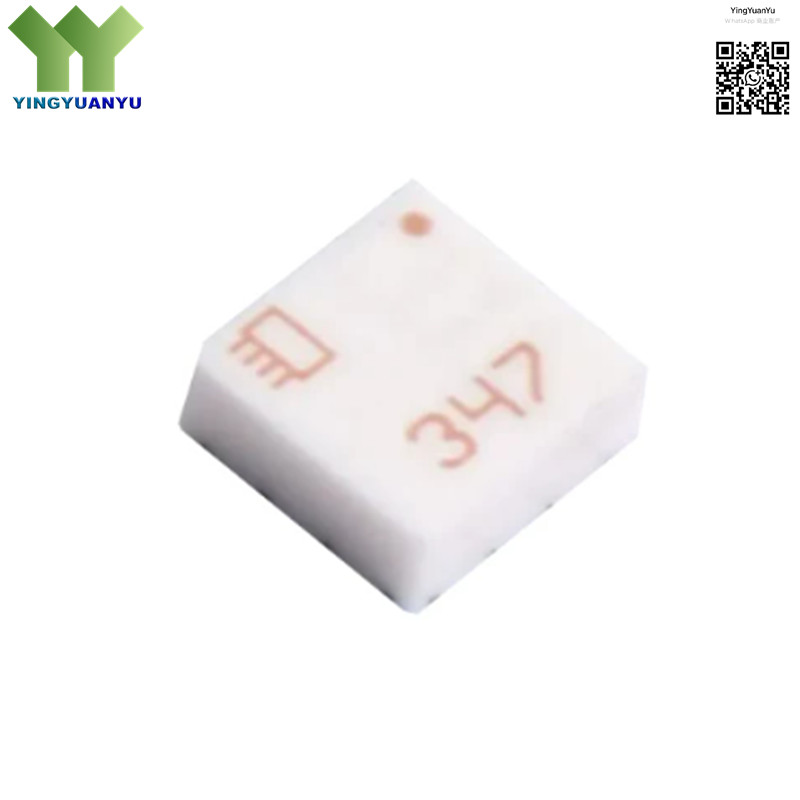

BFTC-415+
BFTC-415+
Basic Information
| Part Number | BFTC-415+ |
| Manufacturer | Mini-Circuits |
| Category | RF Filters, Balun Transformers |
| Description | RF Balun Transformer, 330 to 500 MHz, 25 dB,4W of RF input power, LTCC multi-layer structure,SMD-6P,3.8×3.8mm |
Product Overview
The BFTC-415+ is a high-performance RF balun transformer designed for wideband applications operating from 400 MHz to 1500 MHz. Manufactured by Mini-Circuits, this component features a compact, robust design with 50-ohm impedance matching, delivering excellent insertion loss, return loss, and amplitude balance across the entire operating frequency range. It is ideal for wireless communication systems, test equipment, and RF circuits requiring reliable signal conversion between balanced and unbalanced lines, with stable performance in commercial and industrial operating conditions.
Key Specifications
| RoHS | Lead Free / RoHS Compliant |
| EDA / CAD Models | Available (Schematic, PCB Footprint, 3D Model) |
| Warranty | Standard Manufacturer Warranty |
| Brand | Mini-Circuits |
| Product Type | Balun Transformer |
| Frequency Range | 400 MHz – 1500 MHz |
| Impedance | 50 Ohms |
| Package Type | Surface Mount (SMD) |
Typical Applications
- Wireless Communication Systems
- RF Transceiver Modules
- Broadband Signal Processing
- Test and Measurement Equipment
- Balanced-Unbalanced Signal Conversion
- Mobile Radio and Base Station Circuits
- Industrial RF Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
