BLF6G38LS-50,112

Add to quote

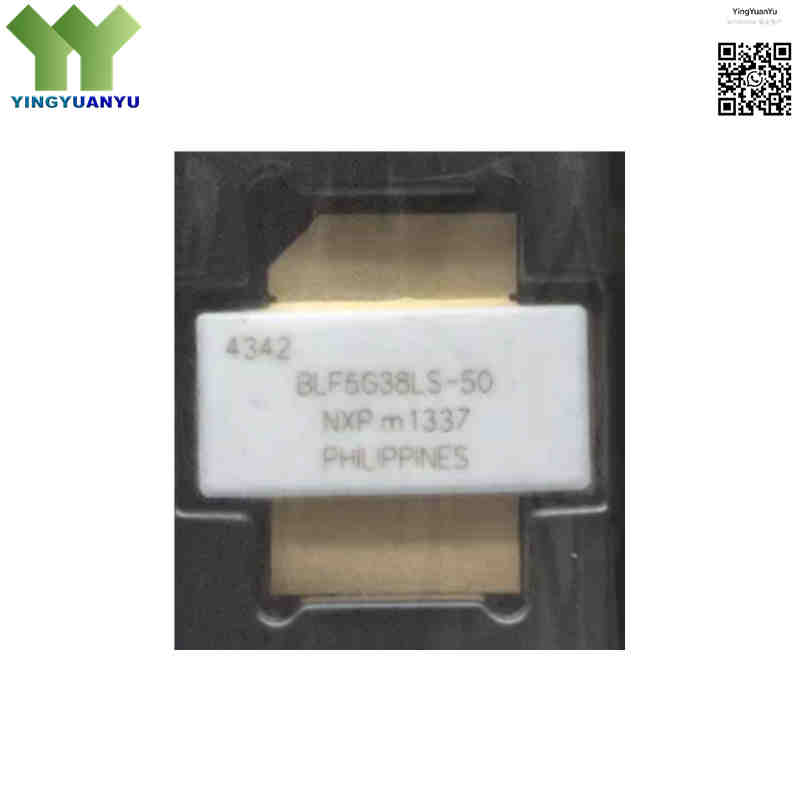

BLF6G38LS-50,112

Part NumberBLF6G38LS-50,112
ManufacturerAmpleon / NXP Semiconductors
CategoryDiscrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFETs
Description50W LDMOS RF Power Transistor, 3400MHz to 3800MHz Frequency Range, 28V Drain Operation, SOT502B Flangeless Ceramic Metal Seal Package.
Stock StatusIn Stock
OriginOriginal Factory

Product Overview

The BLF6G38LS-50,112 is a 50W LDMOS RF power transistor from Ampleon (formerly NXP RF division). Optimized for 3.4GHz–3.8GHz mid-band wireless infrastructure such as WiMAX and 4G LTE broadband devices. Adopting 6th-generation LDMOS technology for stable Class-AB linear performance. Integrated input & output matching circuits simplify PCB layout. The SOT502B flangeless ceramic metal seal package features excellent heat dissipation, and can withstand VSWR up to 10:1 all-phase mismatch under 28V operating voltage.

Core Advantages

50W Saturated Power for 3.4–3.8GHz Band

50W P1dB saturated output power, peak envelope power up to 70W, perfectly matched for 3.5GHz communication infrastructure.

On-Chip Input & Output Matching

Built-in impedance matching network, eliminates complex external matching circuits and reduces PCB layout difficulty.

Good Linearity & Efficiency for Digital Modulation

Optimized for N-CDMA / LTE modulation; typical power gain 14dB, drain efficiency 23%, low adjacent channel leakage.

High Ruggedness & Reliable Ceramic Package

Flangeless ceramic SOT502B air-cavity package, thermal resistance Rth(j-case)=0.7℃/W, withstand VSWR=10:1 full phase mismatch.

Key Specifications

BrandAmpleon / NXP Semiconductors
RoHS StatusRoHS Compliant / Lead-Free / Green
EDA/CADSymbol, Footprint & 3D Model Available
Warranty1-Year Standard Quality Warranty
Package / CaseSOT502B (Flangeless Ceramic Metal Seal FLATPACK, R-CDFP-F2)
Mounting TypeChassis Mount / Heatsink Mount
Surface Marking / SilkscreenBLF6G38LS-50 Marking
Transistor TechnologyLDMOS (Lateral Diffused Metal Oxide Semiconductor)
Frequency Band3400 MHz to 3800 MHz (3.4GHz – 3.8GHz)
Operating Drain Voltage (VDS)28 V (Nominal Test Condition)
Drain-source Breakdown Voltage V(BR)DSS65 V
Continuous Drain Current ID16.5 A
Quiescent Drain Current IDq450 mA (Typical)
Saturated Output Power (P1dB)50 W (Typ @ 28V)
Peak Envelope Power70 W
Linear Average Power(N-CDMA)9 W
Power Gain (Gp)14 dB (Typical @3400MHz, Class-AB)
Drain Efficiency23% (Typical under N-CDMA test)
ACPR-49 dBc (885kHz offset), -64 dBc (1980kHz offset)
Load Mismatch RuggednessVSWR = 10:1 through all phases (Vds=28V, f=3600MHz)
Thermal Resistance Rth(j-case)0.7 ℃/W (PL≤50W)
Temperature ParametersMax Junction Temperature: 225°C, Storage Temperature: -65°C ~ +150°C
Internal MatchingIntegrated Input & Output Matching
ESD ProtectionBuilt-in internal ESD protection structure
Case ConnectionSource (Source terminal grounded)
Packaging FormatTube Pack (112 packing code suffix)

Typical Applications

  • WiMAX base station and subscriber unit power amplifiers operating at 3.5GHz
  • 3.4GHz ~ 3.8GHz LTE cellular infrastructure transmitters, repeaters and micro base stations
  • Point-to-multipoint broadband wireless access (BWA) systems
  • Driver & output amplifier stages for wireless communication RF power modules
  • Industrial broadband RF power amplification within 3.4–3.8GHz spectrum

Order & Shipping Info

Minimum Order Quantity (MOQ)1 Piece
Shipping TimeShipped within 1-2 business days
Delivery Time3-7 working days worldwide
Shipping MethodsDHL, UPS, FedEx, EMS
Payment MethodsT/T (Bank Transfer), PayPal, Credit Card, Western Union

Technical Support

For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.

Frequently Asked Questions

Q1: What is the difference between BLF6G38LS-50,112 and BLF6G38LS-50,118?

A: Die and all electrical specifications are identical. Suffix ,112 stands for Tube packaging; ,118 represents Tape & Reel packaging. Two versions can be mutually replaced.

Q2: What frequency band is BLF6G38LS-50,112 suitable for?

A: Optimized for frequency range 3400MHz ~ 3800MHz, widely used for 3.5GHz WiMAX, LTE broadband wireless communication equipment.

Q3: Does this RF transistor have built-in impedance matching?

A: Yes, both input and output matching circuits are integrated inside the chip, which greatly simplifies 50-ohm circuit design.

Q4: What alternative / compatible models can replace BLF6G38LS-50,112?

A: Recommended alternative: BLF6G38-50 (same power level & frequency band, verify matching circuit before replacement). For higher power upgrade, refer to BLF6G38LS-100 (100W version). Pinout and package need reconfirmation before replacement.

Q5: What is the maximum load mismatch this transistor can withstand?

A: It can survive VSWR=10:1 all-phase load mismatch under nominal 28V supply voltage, which improves field equipment stability.

Q6: What is the difference between BLF6G38LS-50 and BLF6G38LS-100?

A: BLF6G38LS-50:50W saturated power; BLF6G38LS-100:100W saturated power. Same SOT502B package and frequency band, different output power level for different amplifier power grade design.

Q7: How to install the SOT502B package to guarantee thermal performance?

A: Mount the flat base closely on precision processed heatsink, apply high-performance thermal interface material to reduce thermal resistance, ensure reliable contact for heat dissipation.

Q8: Can I operate this device outside the 3400~3800MHz frequency range?

A: Internal matching network is tuned for 3.4–3.8GHz. Operating outside this band will lead to reduced gain, lower efficiency and unstable performance, not recommended.
