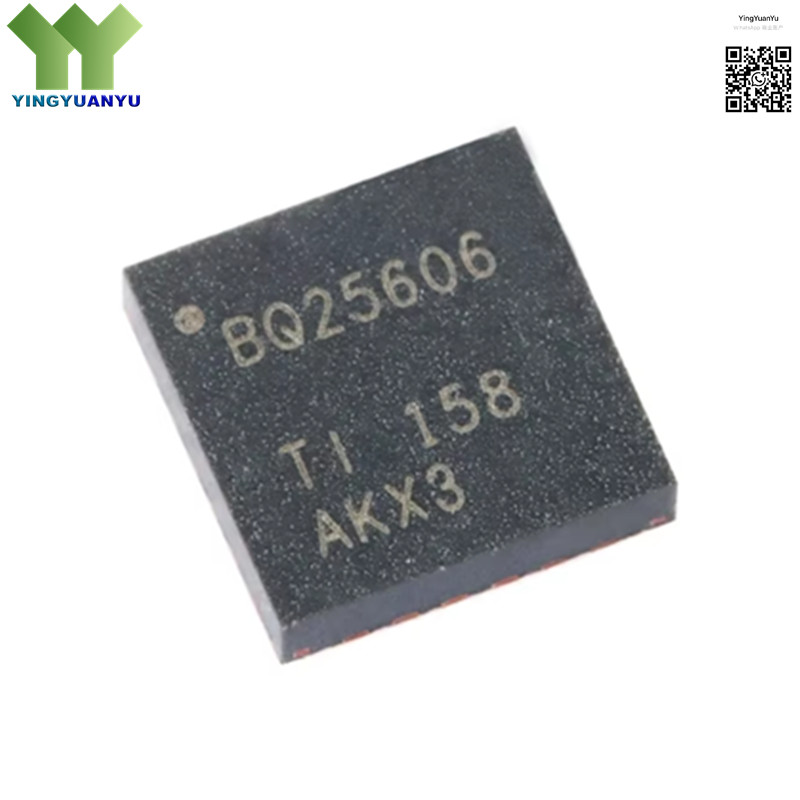

BQ25606RGER
BQ25606RGER
| Part Number | BQ25606RGER |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Power Management ICs; Battery Charger ICs |
| Description | 3A Switch-Mode Battery Charger, Power Path Management, I2C, Single-Cell Li-Ion/Li-Polymer, VQFN-24 Package |
Product Overview
The BQ25606RGER is a highly integrated, 3A synchronous switch-mode battery charger and power path management IC designed for single-cell Li-Ion and Li-Polymer batteries. It combines high-efficiency charging, USB BC1.2 compatibility, NTC thermal monitoring, and comprehensive safety protections in a compact form factor. The device supports seamless power path operation, allowing the system to power up immediately from an external supply while charging the battery. With I2C programmability for charge current, voltage, and safety settings, it offers flexible configuration for portable electronics. Built-in overvoltage, overcurrent, thermal shutdown, and reverse-current protection ensure reliable and safe operation in consumer and industrial applications.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Charge Current | Up to 3A |
| Battery Type | Single-Cell Li-Ion / Li-Polymer |
| Interface | I2C Programmable |
| Package Type | VQFN-24 |
| Key Features | Power Path, USB BC1.2, High Efficiency |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Smartphones, Tablets and Handheld Devices
- Portable Power Banks
- Wearable Electronics
- Portable Medical Devices
- IoT and Wireless Modules
- Bluetooth Speakers and Headphones
- Industrial Portable Equipment
- Consumer Electronics Chargers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
