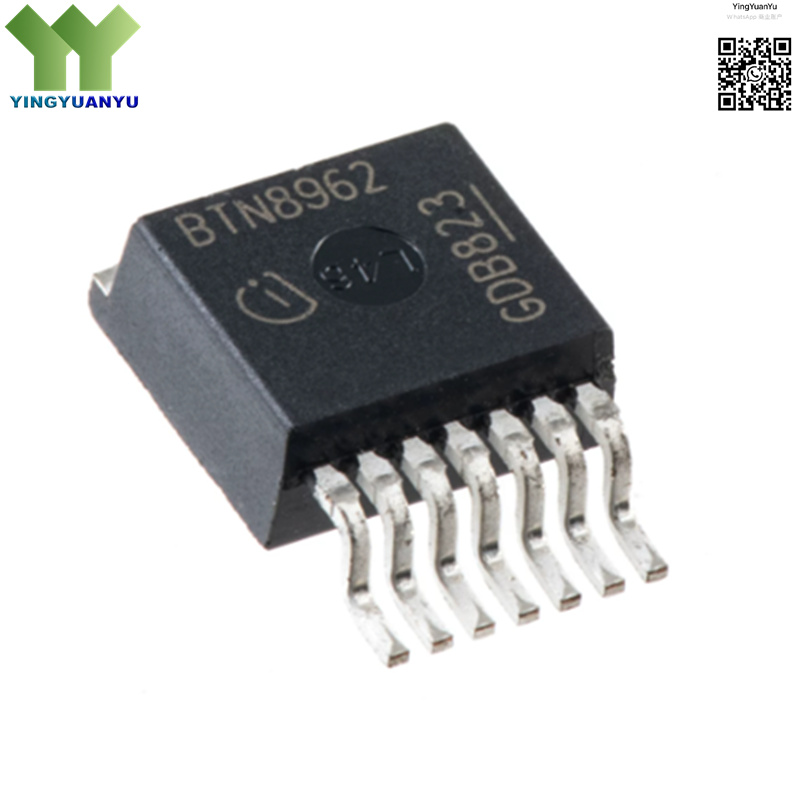

BTN8962TAAUMA1
BTN8962TAAUMA1
| Part Number | BTN8962TAAUMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Power Management ICs; H-Bridge Motor Driver |
| Description | Single-Channel H-Bridge DC Motor Driver, 40V, 23A, PROFET™ Power Driver, TO-263-7 Package |
Product Overview
The BTN8962TAAUMA1 is a high-performance single-channel H-bridge motor driver from Infineon Technologies, featuring integrated PROFET™ power technology for reliable DC motor control. It supports high voltage and high current operation with comprehensive protection features including over-temperature, over-current, under-voltage, and short-circuit protection. The device offers low on-resistance, high efficiency, and easy PWM control, ideal for automotive, industrial, and consumer motor drive applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-263-7 (D2PAK-7) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | BTN8962 Series Marking |
| Output Type | Single H-Bridge |
| Supply Voltage | 5V to 40V |
| Output Current | 23A (Continuous) |
| Control Interface | PWM / Analog Input |
| Operating Temperature | -40°C to +150°C |
Typical Applications
- DC Motor Drive & Control Systems
- Automotive Actuators & Pumps
- Industrial Machinery & Robotics
- Home Appliance Motor Control
- Power Tools & Garden Equipment
- High-Current PWM Motor Drivers
- Portable & Battery-Powered Motor Systems
Valve & Pump Control Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
