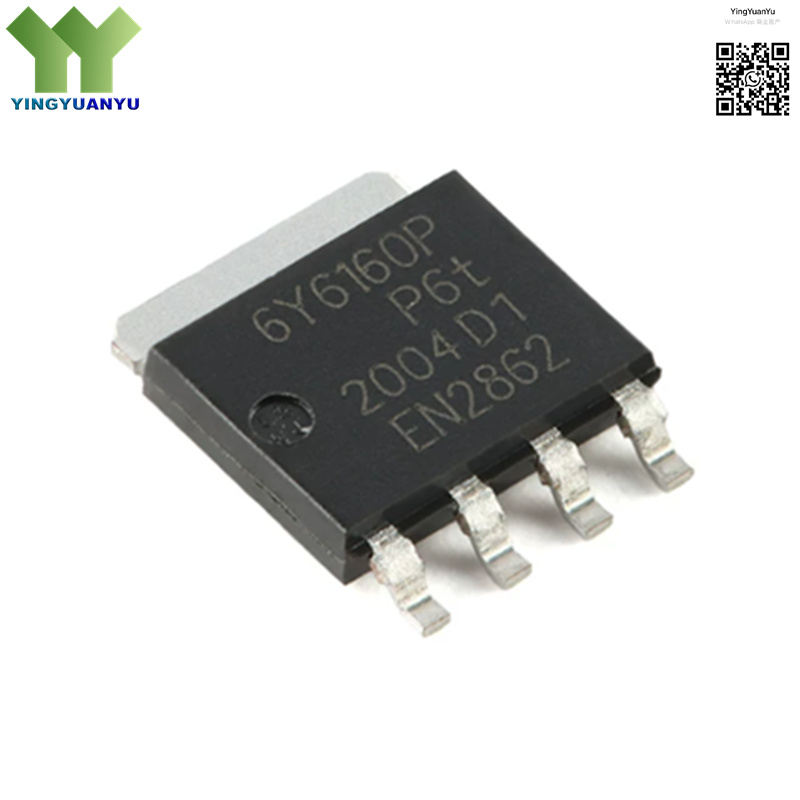

BUK6Y61-60PX
BUK6Y61-60PX
| Part Number | BUK6Y61-60PX |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, 60V, 25A, Low Rds(on),61 mΩ, LFPAK56(PowerSO-8) Package |
Product Overview
The BUK6Y61-60PX is a high-performance P-channel enhancement mode MOSFET from NXP Semiconductors, designed for high-efficiency power switching applications. Utilizing advanced LFPAK packaging technology, it offers ultra-low on-resistance, high current capability, fast switching speed, and excellent thermal performance. This RoHS-compliant device provides reliable operation, high power density, and robust ruggedness, making it ideal for automotive, industrial, and consumer electronics power management systems.
| Key Specifications | |
|---|---|
| Brand | NXP Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LFPAK56(PowerSO-8) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | 6Y6160P |
| Drain-Source Voltage (Vdss) | 60 V |
| Continuous Drain Current (Id) | 25 A |
| On-State Resistance (Rds(on)) | 61 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Automotive Power Management Systems
- High-Current DC-DC Converters
- Switching Power Supplies & Load Switches
- Battery Protection & Management Modules
- Motor Drive & Control Circuits
- Industrial Power Control Equipment
- High-Efficiency Power Switching
- Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
