CR2032HR
CR2032HR MAXELL
| Part Number | CR2032HR |
|---|---|
| Manufacturer | Maxell |
| Category | Batteries & Power Products > Primary Batteries (Non-Rechargeable) – Coin / Button Cell |
| Description | High-Heat Resistant Lithium Manganese Dioxide Coin Cell Battery, 3.0V Nominal Voltage, 200~210mAh Capacity, 2032 Package, Extended Operating Temperature Range (-40℃ to +125℃). |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

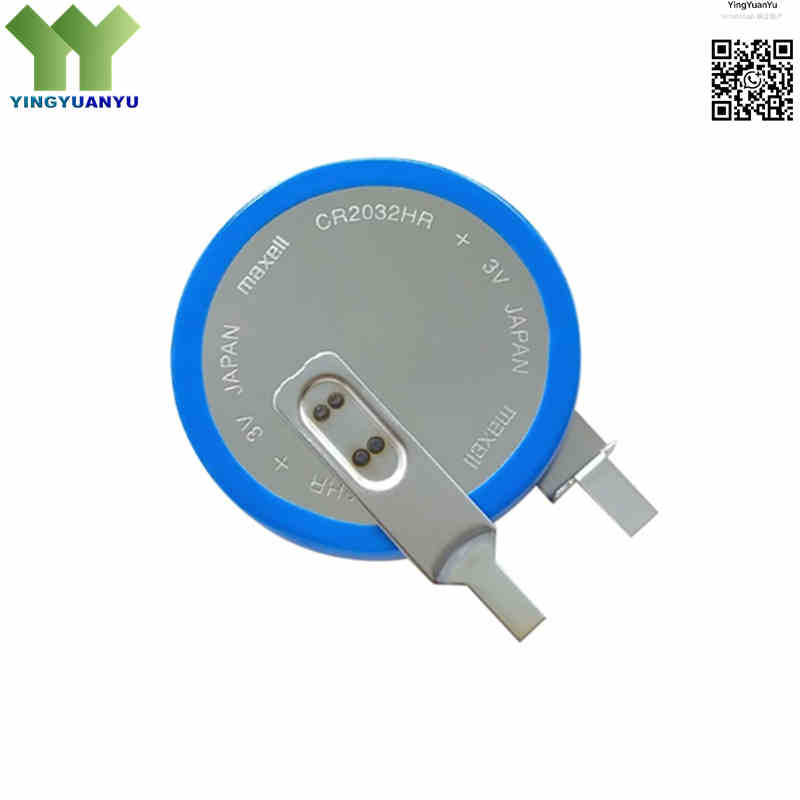

The CR2032HR is a heat-resistant primary Li/MnO₂ coin cell battery from Maxell. Designed for high-reliability automotive and industrial harsh thermal environments, this 3.0V non-rechargeable battery adopts special heat-resistant sealing technology. The “HR” version supports wide temperature range of -40°C ~ +125°C. In standard 2032 form factor (20.0 mm × 3.2 mm) with 200~210mAh capacity, it delivers stable output and excellent leakage resistance. Ideal for TPMS, smart meters, tracking beacons and high-temperature industrial sensors.
Core Advantages
Extreme Operating Temperature Range (-40°C to +125°C)
Equipped with heat-resistant sealing structure and high-temperature electrolyte, stable operation up to +125°C without leakage or serious capacity attenuation.
Standard 2032 Form Factor & High Stability
200~210mAh capacity within compact 20.0 mm × 3.2 mm size, providing long-term stable power supply for mini industrial electronic equipment.
Excellent Anti-Leakage & Shock Resistance
Precision crimping process, withstand severe vibration, thermal shock and high centrifugal load for automotive and industrial scenarios.
Ultra-Low Self-Discharge Rate
Annual self-discharge rate below 1% under room temperature, ensuring long shelf life and reliable standby performance.
Key Specifications
| Brand | Maxell |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Mercury-Free |
| Warranty | 1-Year Standard Quality Warranty |

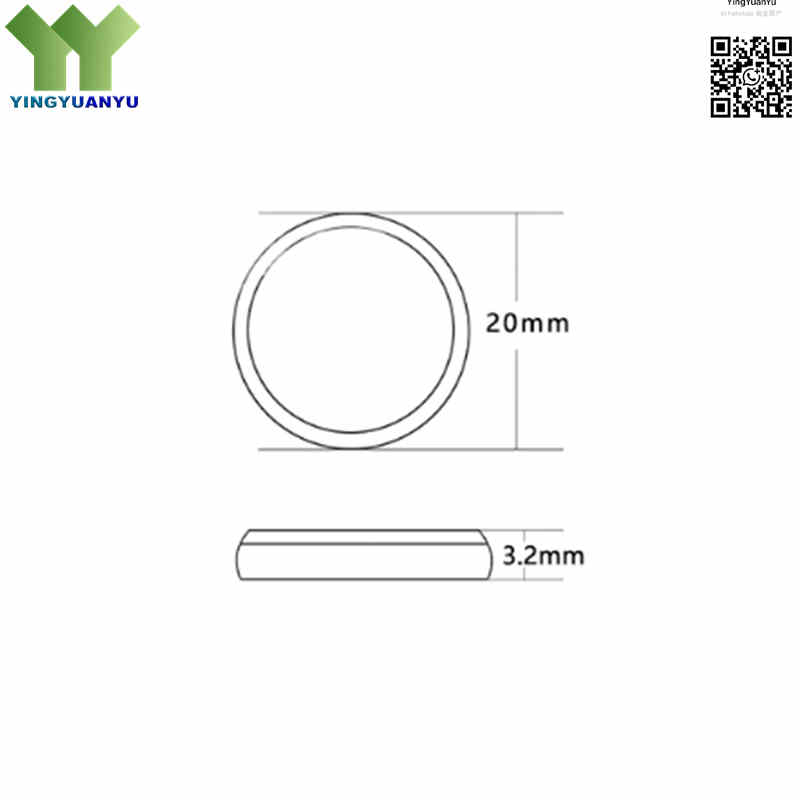

| Package / Case | Coin Cell 2032 (20.0 mm Diameter × 3.2 mm Height) |
| Mounting Type | Coin Cell Holder / PCB Tab Pin Solder Mount |
| Surface Marking / Silkscreen | Maxell CR2032HR / 3V Marking |
| Battery Chemistry | Primary Lithium Manganese Dioxide (Li/MnO₂) – Heat Resistant |
| Nominal Voltage | 3.0 V |
| Nominal Capacity | 200 ~ 210 mAh |
| Standard Discharge Current | 0.2 mA |
| Max Continuous Discharge Current | ≤5 mA |
| Max Pulse Discharge Current | ≤10 mA |
| Operating Temperature Range | -40°C to +125°C (High-Heat Grade) |
| Weight | Approx. 3.0 ~ 3.1 g |
| Anti-Vibration / Shock Resistance | Withstand maximum acceleration up to 2000G |
| Self-Discharge Rate | Less than 1% per year at room temperature |

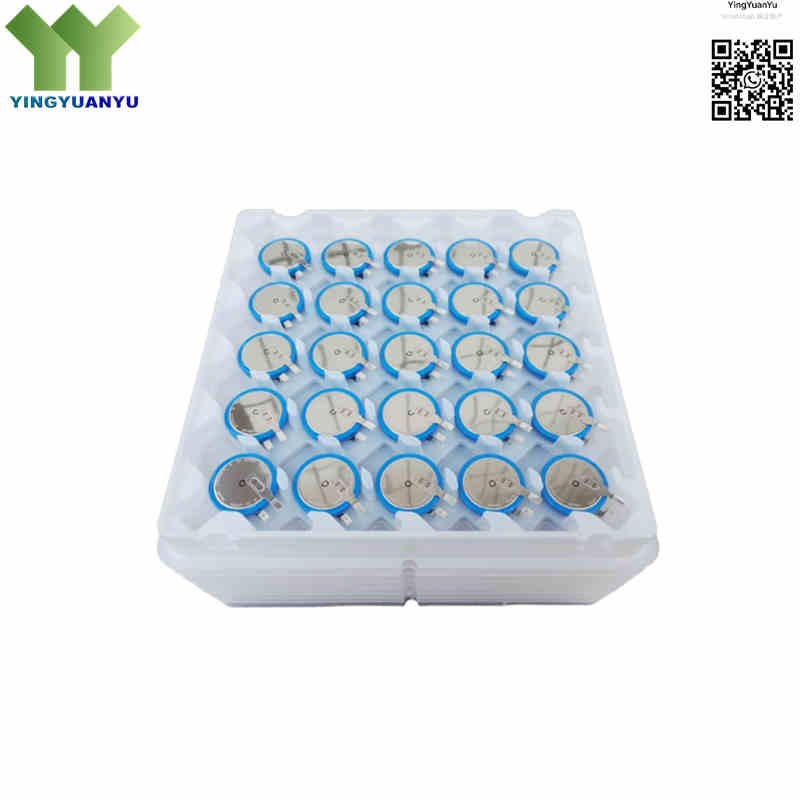

| Packaging Format | Tray / Blister Pack / Bulk |
Precautions
- Do Not Recharge: The CR2032HR is a non-rechargeable primary lithium battery. Recharging may cause gas generation, leakage, overheating or explosion.
- Avoid Direct Soldering On Cell Body: High temperature will damage internal sealing structure. Please adopt pre-welded tab batteries or battery holders.
- Do Not Short-Circuit: Direct connection of positive and negative poles will trigger high current, resulting in extreme temperature rise.
- Correct Polarity Installation: Confirm positive and negative alignment during assembly to prevent equipment malfunction.
- Safe Disposal: Do not crush, disassemble or heat the cell above 125°C. Dispose according to local lithium battery regulations.
Typical Applications
- Automotive Tire Pressure Monitoring Systems (TPMS) and wheel-mounted sensor modules
- Engine compartment telemetry, electronic toll collection (ETC), and OBD tracking units
- Industrial automated meters, high-temperature boiler instrumentation, and environmental data loggers
- Outdoor smart utility gas/water meters, remote pipeline monitoring, and oil/gas sensors
- Medical equipment requiring steam or heat sterilization procedures
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS, YFH Standard |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, bulk pricing and custom versions with solder tabs, pins and wire assemblies, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the main difference between standard Maxell CR2032 and CR2032HR?
A: Standard CR2032 operates at -20℃ ~ +70℃. CR2032HR uses special heat-resistant materials and sealing structure, supporting -40℃ ~ +125℃, designed for high-temperature automotive and industrial environments.
Q2: Is the Maxell CR2032HR rechargeable?
A: No, CR2032HR is primary non-rechargeable Li/MnO₂ battery. For rechargeable coin cells in same form factor, you can select ML2032 series.
Q3: Why is CR2032HR widely used for Automotive TPMS and industrial sensors?
A: Automobiles and industrial machinery generate extreme heat, vibration and mechanical shock. CR2032HR can withstand high temperature and centrifugal force while maintaining stable long-term output.
Q4: Can custom solder tab pins or wire leads be supplied for CR2032HR?
A: Yes. We offer factory-processed CR2032HR with vertical/horizontal solder tabs, insulated lead wires and micro connectors according to requirements.
Q5: Can I directly replace ordinary CR2032 with CR2032HR?
A: Same dimension and voltage, mechanically interchangeable. If your equipment works under high temperature or strong vibration, upgrading to CR2032HR will improve reliability; no modification needed for hardware.
Q6: What are the risks of soldering directly on the battery casing?
A: Direct high-temperature soldering will damage internal sealing, cause leakage or early failure. Please choose pre-tabbed batteries or use plastic battery holders.
Q7: How long is the shelf life of CR2032HR?
A: With ultra-low self-discharge rate below 1% per year, the typical shelf life can reach 8–10 years when stored under normal room temperature.
Q8: What is the difference between Maxell CR2032HR and Panasonic BR2032?
A: Both adapt to high-temperature scenarios. Maxell CR2032HR nominal voltage 3.0V, capacity 200~210mAh; Panasonic BR2032 can withstand higher peak temperature but has lower capacity. CR2032HR is more cost-effective for most TPMS and industrial sensor projects.
