DAC8413FPCZ
DAC8413FPCZ
| Part Number | DAC8413FPCZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Digital to Analog Converters (DAC) |
| Description | Quad, 12-Bit, Parallel Input, Voltage-Output Digital-to-Analog Converter (DAC) with integrated readback capability and programmable output unipolar/bipolar configurations. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The DAC8413FPCZ is a high-performance, high-density quad 12-bit voltage-output digital-to-analog converter (DAC) from Analog Devices Inc. Built on an advanced precision BiCMOS process, this monolithic IC integrates four independent channels with dedicated on-chip output amplifiers, capable of driving large capacitive loads with exceptional stability. Its high-speed parallel digital interface incorporates double-buffered latches, enabling simultaneous updates across all four converter channels for perfectly synchronized analog outputs. A defining feature of the DAC8413 series is its comprehensive register readback capability, allowing host microprocessors to directly verify internal configuration data for enhanced system integrity. Supporting both unipolar and true bipolar output modes without external operational amplifiers, the is an ideal choice for multi-channel automatic test equipment, high-precision industrial calibration systems, precision positioning mechanisms, and critical medical instrumentation.
Core Advantages
Simultaneous Quad-Channel Conversion
Incorporates an elegant double-buffered digital logic pipeline that holds individual channel updates until a centralized strobe signal fires, enabling simultaneous raw analog voltage modifications across all channels.
Integrated Register Readback Capability
Features an intelligent internal bidirectional digital data bus that enables host controllers to interrogate register contents directly, allowing real-time software diagnostics and fail-safe hardware validation loops.
Flexible Bipolar Voltage Configurations
Features integrated laser-trimmed application resistors that natively support configurable 0V to 5V unipolar, or symmetric -5V to +5V / -10V to +10V bipolar analog outputs without relying on external op-amps.
Outstanding Thermal Stability and Linearity
Leverages ADI’s signature laser-trimmed resistor network matched with high-stability bandgap bias paths to achieve rigid differential non-linearity (DNL) and minimum temperature-induced operational drift over life.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Suffix Packaging) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |

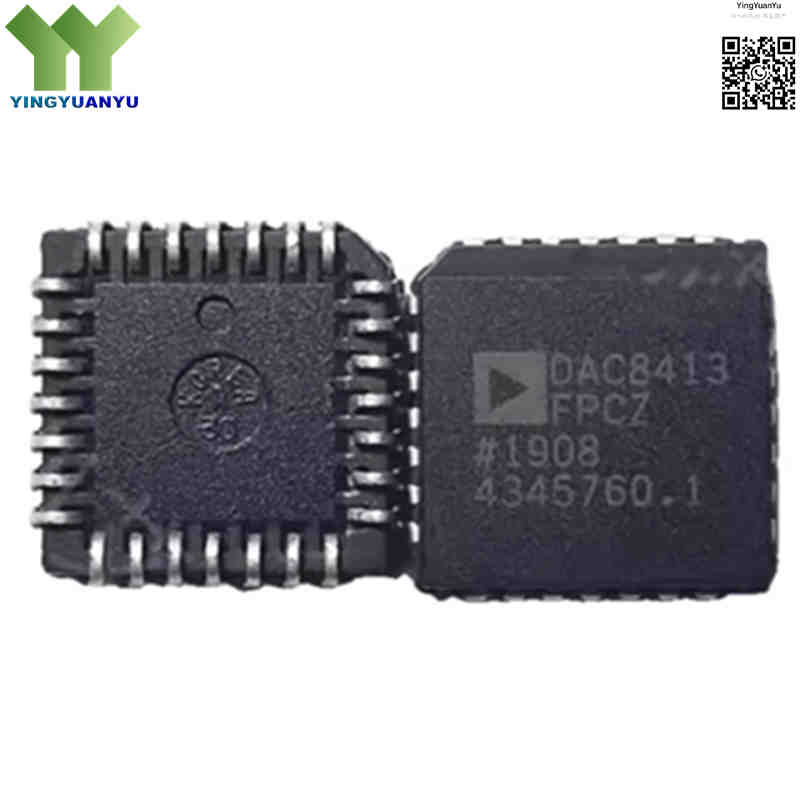

| Package / Case | PLCC-28(11.5×11.5mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) or Socketable Mounting |
| Surface Marking / Silkscreen | DAC8413FPCZ Marking |
| DAC Core Architecture | Quad, 12-Bit Monolithic Voltage-Output R-2R Array |
| Digital Communication Interface | Fast Parallel Interface Port with dedicated Read/Write control links |
| Differential Non-Linearity (DNL) | ±0.5 LSB Max (Guaranteed monotonic over entire operating range) |
| Integral Non-Linearity (INL) | ±1 LSB Max (Precision Industrial Speed Grade performance) |
| Analog Output Settling Time | 5 μs Typical to ±0.01% resolution scale |
| Operating Voltage Rails | Dual Supplies: VDD = +4.5V to +15V, VSS = -4.5V to -15V Range |
| Power Dissipation Performance | Highly optimized low active power profile |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Thermal Specification Window) |
Typical Applications
- Automated Test Equipment (ATE), Multi-Channel Pin Electronics, and Component Testers
- Industrial Process Control Loops, Programmable Logic Controller (PLC) Analog Output Modules
- Precision Digital Voltage Sources, Calibration References, and Lab Instrumentation Panels
- Closed-Loop Servo Motor Controls, CNC Axis Positioners, and Piezoelectric Drivers
- Medical Imaging Calibration, Patient Telemetry Receivers, and Multi-Channel Diagnostic Arrays
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock inventory of the DAC8413FPCZ fully original and factory-new?
A: Yes, we guarantee that all DAC8413FPCZ components in our inventory are 100% brand-new, factory-original products from Analog Devices Inc., strictly stored and handled in compliance with global anti-static ESD shielding and moisture-controlled packaging guidelines.
Q2: What is the main design value of the PLCC-28(11.5×11.5mm) package used by the DAC8413FPCZ?
A: The PLCC-28 (Plastic Leaded Chip Carrier) format provides exceptionally resilient, J-lead compliant stress reliefs against extreme PCB thermal cycling expansions. Additionally, it offers designers the flexibility to solder the chip directly or place it into premium PLCC sockets for convenient hardware field updates.
Q3: How does the integrated readback feature help protect safety-critical industrial applications?
A: In critical automated process systems, electrical trace noise or memory disruptions could potentially corrupt digital control lines. The readback architecture enables the host processor to constantly read the DAC’s internal register data to confirm it matches the intended output value, preventing unsafe analog output excursions.
Q4: How can our engineering division obtain evaluation module layouts, hardware calibration parameters, or volume price tiers?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
