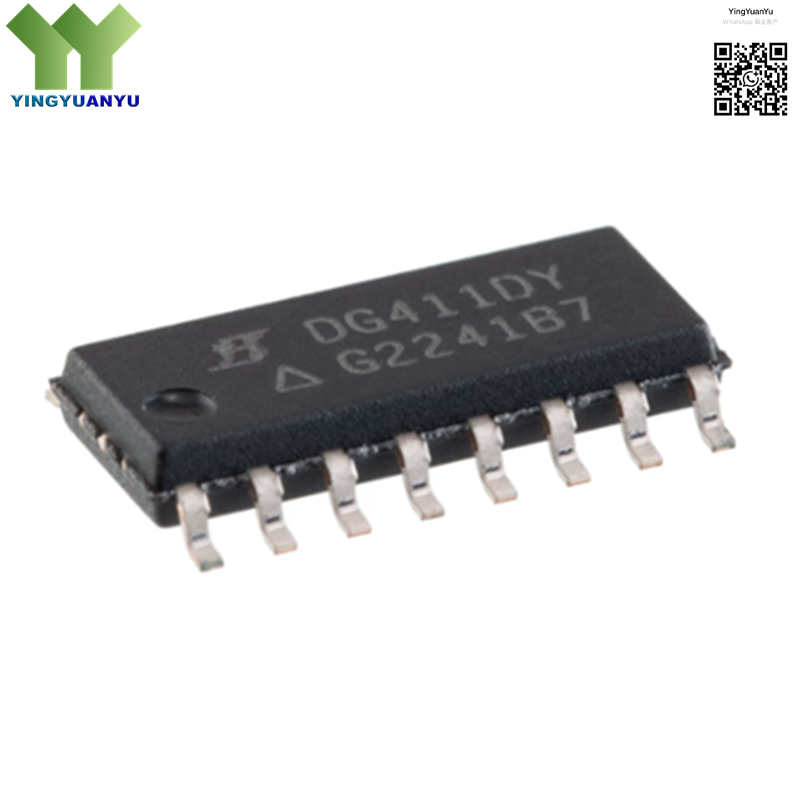

DG411DY-T1-E3
DG411DY-T1-E3
| Part Number | DG411DY-T1-E3 |
| Manufacturer | Vishay |
| Category | Integrated Circuits > Analog Switches > Quad SPST Analog Switch |
| Description | Quad Independent SPST CMOS Analog Switch IC, Low On-Resistance,SOIC-16 Package |
Product Overview
The DG411DY-T1-E3 is a quad single-pole single-throw analog switch developed by Vishay using high-performance CMOS fabrication process. It contains four fully independent SPST switching channels with separate digital control pins, featuring low channel on-resistance, ultra-low leakage current and fast switching speed to preserve analog signal integrity. The device supports single and dual supply voltage configurations with rail-to-rail signal handling capability. Compact surface mount package fits automatic SMT assembly, widely used for signal gating, multiplex routing and precision analog switching in test instruments, industrial control and consumer electronic systems.
Key Specifications
| Brand | Vishay |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SOIC-16 |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | DG411DY Marking |
| Channel Configuration | 4 × Independent SPST |
| Supply Voltage Range | 5V~44V Single / ±5V~±20V Dual |
| Typical On Resistance | 25 Ω |
| Switching Transition Time | 110ns Turn-On / 100ns Turn-Off Max |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- Multichannel Data Acquisition Signal Gating
- Precision Test & Measurement Equipment
- Industrial PLC Analog Input Switch Modules
- Audio Equipment Channel Selection Circuits
- Battery-Powered Portable Measuring Instruments
- IoT Multi-Sensor Signal Selection Boards
- Automotive Electronic Signal Routing Circuits
- Medical Instrument Low-Signal Switching Units
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is DG411DY-T1-E3 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SOIC-16 package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
