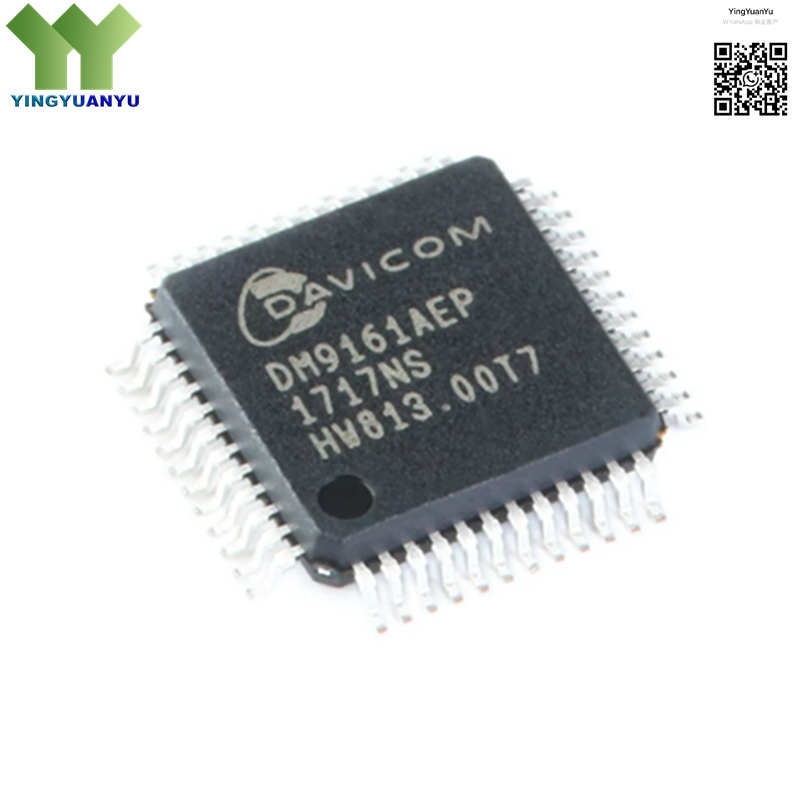

DM9161AEP
DM9161AEP
| Part Number | DM9161AEP |
| Manufacturer | DAVICOM |
| Category | Integrated Circuits > Interface IC > 10/100Mbps Ethernet PHY Transceiver |
| Description | Single Port Fast Ethernet PHY Chip, 10/100M Auto Negotiation, MII/RMII Interface,LQFP-48(7×7) Package |
Product Overview
The DM9161AEP is a mature single-port fast Ethernet physical layer transceiver developed by Davicom, fully compliant with IEEE802.3 10BASE-T and 100BASE-TX standard. It integrates built-in CODEC, clock recovery circuit and line driver, supporting auto MDI/MDIX crossover, auto speed and duplex negotiation to simplify network layout design. The chip provides flexible MII and RMII host interface for connection with MCU or Ethernet MAC controller. LQFP surface-mount package is suitable for automated SMT production, widely applied in industrial control equipment, embedded network modules, smart gateway and consumer wired network devices.
Key Specifications
| Brand | DAVICOM |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | LQFP-48(7×7) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | DM9161AEP |
| Network Rate | 10Mbps / 100Mbps Auto Select |
| Host Interface | MII, RMII |
| Function Feature | Auto MDI/MDIX, Auto Duplex Negotiation |
| Supply Voltage | 3.3V |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- Industrial PLC & Field Control Network Module
- Embedded Single-chip Wired Ethernet Communication Board
- Smart Home Gateway & Network Transceiver Equipment
- POS Terminal & Payment Device Network Unit
- IP Camera Wired Network Interface Circuit
- Instrument & Measuring Equipment Ethernet Module
- IoT Wired Data Acquisition Transmission Node
- Small Router & Ethernet Switch Auxiliary PHY Board
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is DM9161AEP RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts LQFP-48(7×7) package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
