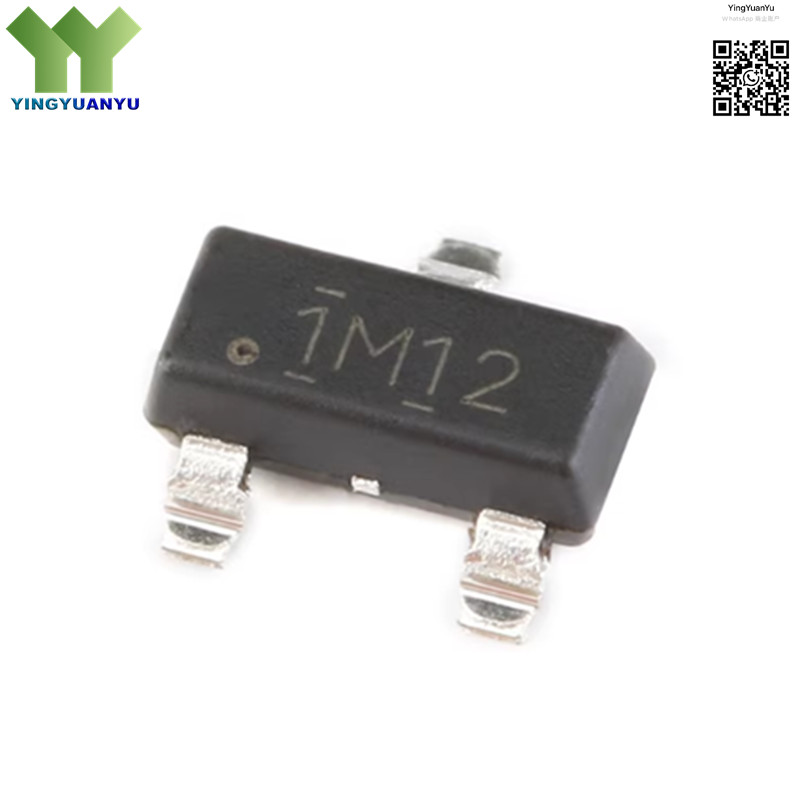

DRV5053OAQDBZR
DRV5053OAQDBZR
| Part Number | DRV5053OAQDBZR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Magnetic Sensors; High-Precision Linear Hall Effect Sensors |
| Description | High-Precision Linear Hall Effect Sensor, Analog Output, 3.3V/5V, AEC-Q100, SOT-23-3 Package |
Product Overview
The DRV5053OAQDBZR is a high-precision, ratiometric linear Hall effect sensor designed for accurate magnetic field measurement in automotive, industrial, and consumer applications. It provides a linear analog output voltage proportional to the applied magnetic field strength, featuring ultra-low noise, high sensitivity, and excellent temperature stability. The device supports 3.3V and 5V single-supply operation, offers wide magnetic field range, and is AEC-Q100 qualified for automotive-grade reliability. With robust ESD protection and reverse polarity protection, it ensures stable performance in harsh environments. Housed in a tiny SOT-23-3 surface-mount package, it enables easy integration into space-constrained position and current sensing designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Sensor Type | Linear Hall Effect Sensor |
| Output Type | Analog Ratiometric |
| Qualification | AEC-Q100 Automotive Grade |
| Package Type | SOT-23-3 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Automotive Position & Angle Sensing
- Current Sensing & Power Management
- Industrial Linear Position Detection
- Joystick & Throttle Position Sensors
- Brushless DC Motor Commutation
- Consumer Electronics Magnetic Sensing
- Proximity & Level Detection Systems
- Agricultural & Industrial Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
