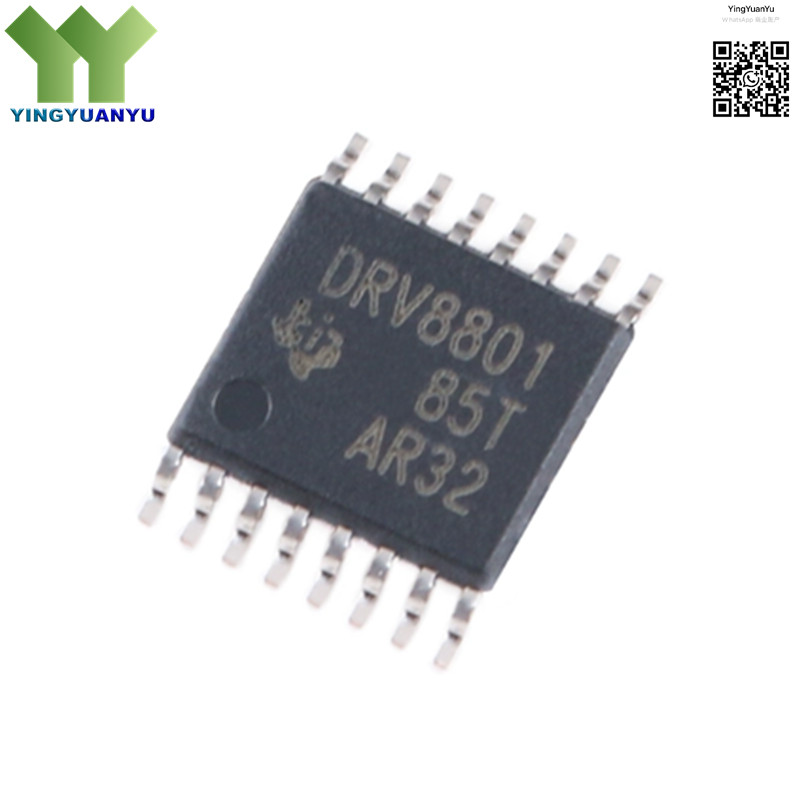

DRV8801PWPR
DRV8801PWPR
| Part Number | DRV8801PWPR |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Motor Drivers; Brushed DC Motor Drivers |
| Description | 2.8A H-Bridge Motor Driver, 8V-32V, PWM Control, Thermal Protection, HTSSOP-16 Package |
Product Overview
The DRV8801PWPR is an integrated H-bridge motor driver designed for driving brushed DC motors, solenoids, and other inductive loads. It supports a wide voltage range from 8V to 32V and delivers up to 2.8A continuous output current, making it suitable for industrial, consumer, and automotive motion control applications. The device includes built-in thermal shutdown, overcurrent protection, and undervoltage lockout to ensure safe operation. With PWM control interface and compact HTSSOP-16 surface-mount packaging, it offers high efficiency and easy integration into space-constrained motion control designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments (TI) |
| Output Current | 2.8A Continuous |
| Supply Voltage | 8V ~ 32V |
| Control Interface | PWM Control |
| Package Type | HTSSOP-16 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Brushed DC Motor Control Systems
- Industrial Automation and Robotics
- Valve and Solenoid Control
- Automotive Actuator Drivers
- Consumer Electronic Motion Controls
- Office Automation Equipment
- Test and Measurement Instrumentation
Portable Motion Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
