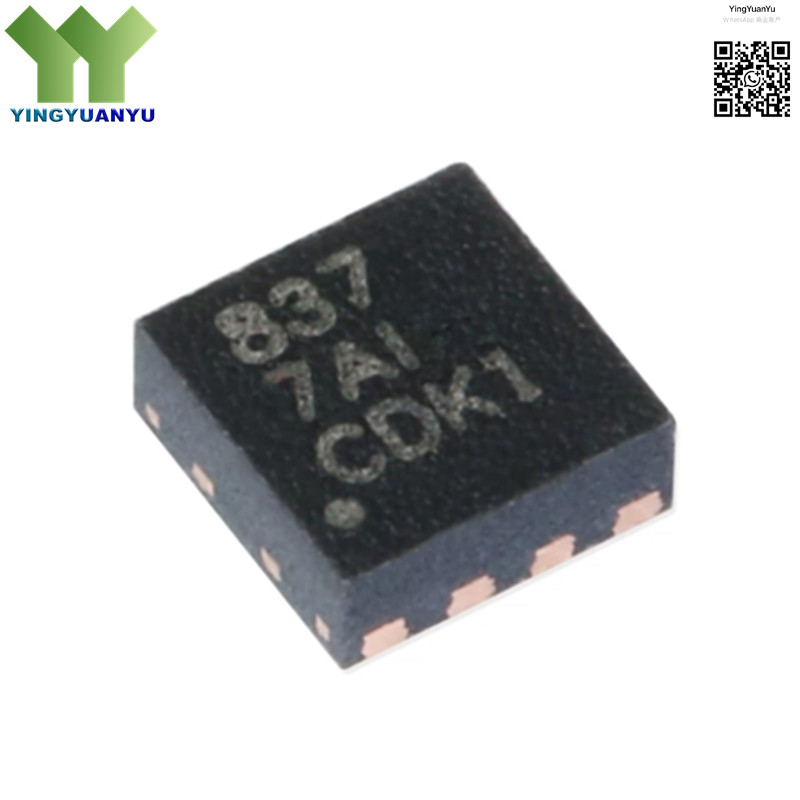

DRV8837DSGR
DRV8837DSGR
| Part Number | DRV8837DSGR |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Motor Drivers; H-Bridge Brushed DC Motor Drivers |
| Description | Low-Voltage H-Bridge Motor Driver, 1.8A, 1.8V-11V, WSON-8 Package |
Product Overview
The DRV8837DSGR is an ultra-compact, low-voltage H-bridge motor driver optimized for small brushed DC motors and portable low-power applications. It operates from 1.8V to 11V supply voltage, delivers up to 1.8A peak output current, and features low on-resistance MOSFETs for high efficiency. The device integrates comprehensive protection including overcurrent, overtemperature, and undervoltage lockout to ensure safe and reliable operation. Housed in a tiny WSON-8 surface-mount package, it is ideal for space-constrained, battery-powered designs such as wearables, toys, and small robotics.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments (TI) |
| Output Current | 1.8A Peak |
| Supply Voltage | 1.8V ~ 11V |
| Control Interface | Phase / Enable, PWM |
| Package Type | WSON-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Small Brushed DC Motor Drivers
- Wearable Electronic Devices
- Portable Robotics & Toys
- Camera & Lens Actuators
- Low-Power IoT Motion Controls
- Consumer Electronic Modules
- Battery-Powered Miniature Actuators
- High-Density Compact Motor Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
