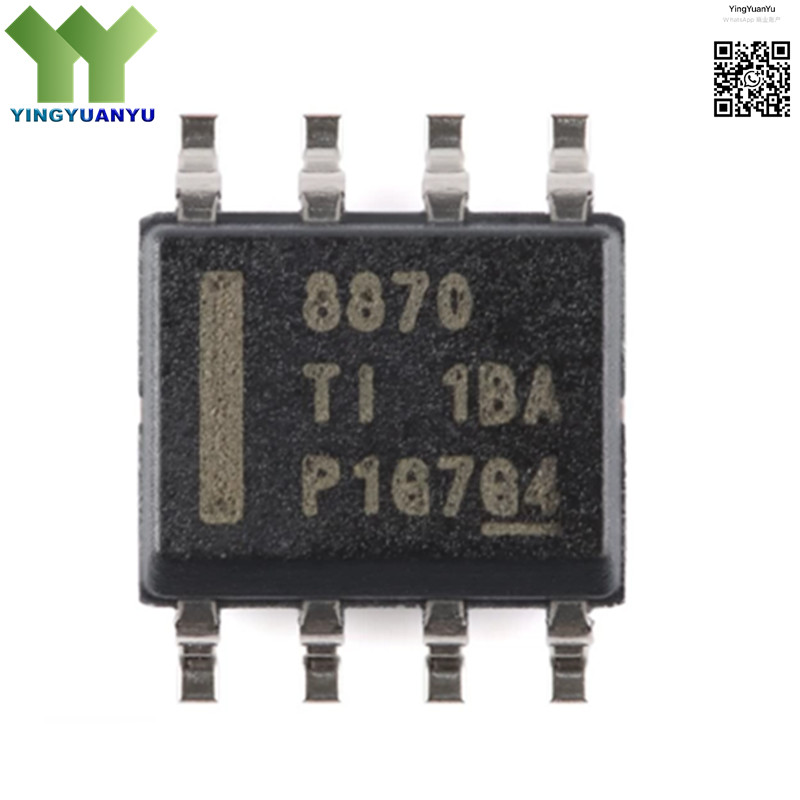

DRV8870DDAR
DRV8870DDAR
| Part Number | DRV8870DDAR |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Motor Drivers; Brushed DC Motor Drivers |
| Description | 3.6A H-Bridge Motor Driver, 6.5V-45V, PWM Control, Overcurrent Protection, HSOP-8-EP Package |
Product Overview
The DRV8870DDAR is an integrated H-bridge motor driver designed for driving brushed DC motors, solenoids, and other inductive loads in industrial, automotive, and consumer applications. It supports a wide input voltage range from 6.5V to 45V and delivers up to 3.6A peak output current with low RDS(ON) for high efficiency. The device includes integrated overcurrent protection, overtemperature shutdown, undervoltage lockout, and cross-current protection to ensure reliable and safe operation. Housed in a standard HSOP-8-EP surface-mount package, it provides easy PCB integration and robust performance for various motion control systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments (TI) |
| Peak Output Current | 3.6A |
| Supply Voltage | 6.5V ~ 45V |
| Control Interface | PWM, Phase & Enable |
| Package Type | HSOP-8-EP |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Brushed DC Motor Control Systems
- Industrial Automation & Robotics
- Automotive Actuators & Valves
- Solenoid Drive & Control
- Consumer Electronic Motion Controls
- Factory Automation Equipment
- HVAC Systems & Pumps
- Portable Power Tools & Machinery
