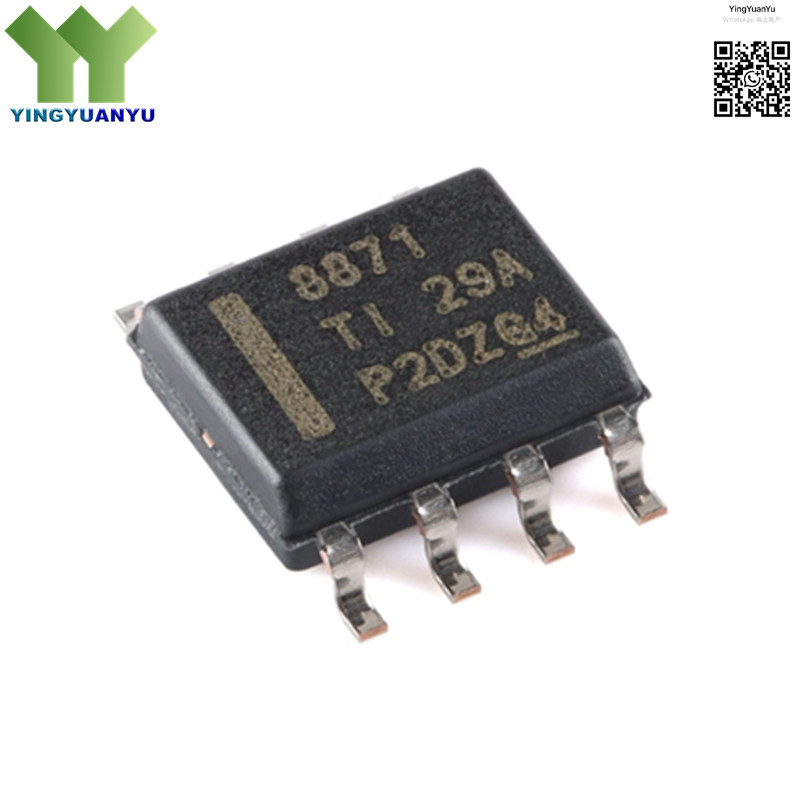

DRV8871DDAR
DRV8871DDAR
| Part Number | DRV8871DDAR |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Motor Drivers; Brushed DC Motor Drivers |
| Description | 3.6A H-Bridge Motor Driver, 6.5V-45V, PWM Control, Integrated Protection, SO-8-EP Package |
Product Overview
The DRV8871DDAR is a robust integrated H-bridge motor driver designed for driving brushed DC motors, solenoids, relays, and other inductive loads. It supports a wide operating voltage range from 6.5V to 45V and delivers up to 3.0A peak output current with low on-resistance MOSFETs for high efficiency. The device features integrated overcurrent protection, thermal shutdown, undervoltage lockout, and shoot-through protection to ensure safe and reliable operation in industrial, automotive, and consumer applications. Housed in a standard SO-8-EP surface-mount package, it offers easy PCB mounting and compact integration for motion control systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments (TI) |
| Peak Output Current | 3.0A |
| Supply Voltage | 6.5V ~ 45V |
| Control Interface | PWM, Phase & Enable Control |
| Package Type | SO-8-EP |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Brushed DC Motor Drive Systems
- Industrial Automation & Robotics
- Automotive Actuators and Valves
- Solenoid and Relay Control
- HVAC Systems and Pumps
- Consumer Electronic Motion Controls
- Factory Automation Equipment
- Portable Power Tools and Appliances
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
