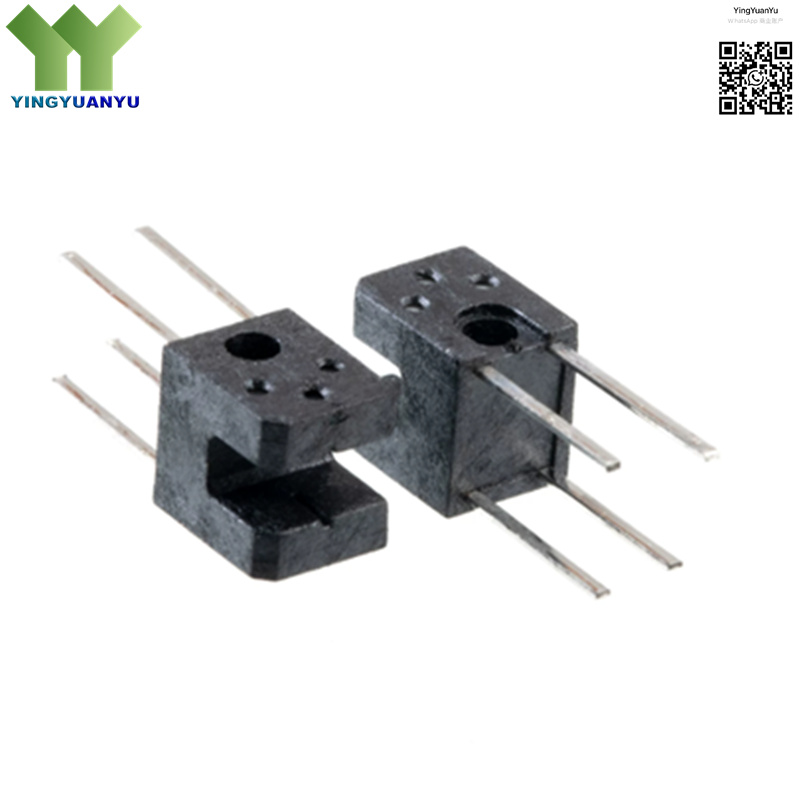

EE-SX1103
EE-SX1103
| Part Number | EE-SX1103 |
|---|---|
| Manufacturer | Omron Electronics |
| Category | Optical Sensors; Transmissive Photointerrupter |
| Description | Ultra-Small Transmissive Optical Slot Sensor, High Sensitivity, DIP-4 Package |
Product Overview
The EE-SX1103 is a high-performance transmissive photointerrupter (slotted optical sensor) from Omron, featuring a compact surface-mount design and high-sensitivity optical detection. It integrates an infrared LED and a phototransistor in a narrow slot package, delivering stable non-contact object detection, position sensing, and pulse counting capabilities. The device offers fast response, low power consumption, and reliable operation in various environmental conditions, ideal for high-precision detection in compact electronic equipment.
| Key Specifications | |
|---|---|
| Brand | Omron Electronics |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DIP-4 Package |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | EE-SX1103 |
| Sensor Type | Transmissive Photointerrupter |
| Wavelength | 940 nm (Infrared) |
| Operating Temperature | -25°C to +85°C |
Typical Applications
- Paper/Medium Detection in Printers & Copiers
- Rotation & Position Detection in Motors
- Drop/Pulse Counting Systems
- Compact Portable Device Detection
- Office Automation Equipment
- Consumer Electronic Position Sensors
- Precision Mechanical Limit Detection
- Small Home Appliance Control
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
