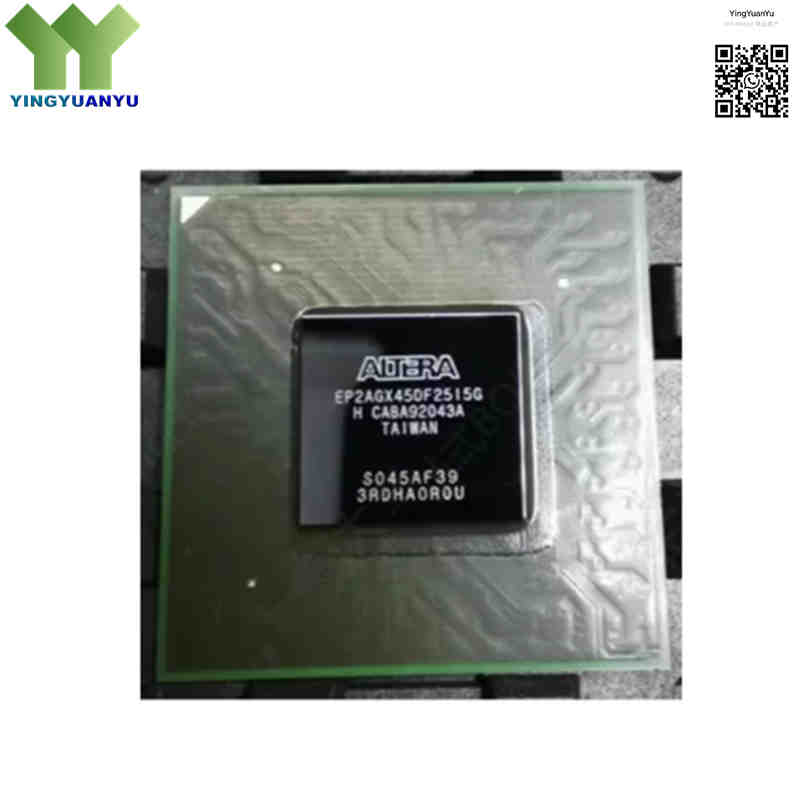

EP2AGX45DF25I5G
EP2AGX45DF25I5G
| Part Number | EP2AGX45DF25I5G |
|---|---|
| Manufacturer | Intel / Altera |
| Category | Integrated Circuits (ICs) > Embedded – FPGAs (Field Programmable Gate Array) |
| Description | Arria II GX FPGA, 42,959 Logic Elements, 8 Transceivers (up to 3.75 Gbps), 572‑FBGA Package, Industrial Grade. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The EP2AGX45DF25I5G is low‑power 40‑nm Arria II GX FPGA from Intel (Altera), for cost‑sensitive high‑speed transceiver applications. It provides 42,959 logic elements,18,050 ALMs, 3.4Mbit embedded RAM, 8 transceivers up to 3.75Gbps, integrated PCIe Gen1 hard‑IP and memory controllers. Packaged in 572‑FBGA 25×25mm, industrial junction temperature ‑40℃ ~ +100℃, balances performance, power consumption and BOM cost.
Core Advantages
Cost & Power‑Optimized 40‑nm Process
40‑nm low‑power process cuts static and dynamic power consumption, supports fanless and thermally‑limited system designs.
Integrated High‑Speed Transceivers
8 full‑duplex transceivers up to 3.75Gbps, supports PCIe Gen1, Serial RapidIO, CPRI, Gigabit Ethernet without external PHY chip.
Embedded Hard IP Cores
Built‑in hardened PCIe and memory controller IP, saves programmable logic resources and ensures stable timing performance.
Robust Industrial Temperature Operation
Industrial junction temperature ‑40℃ ~ +100℃, reliable for industrial and harsh‑condition equipment.
Key Specifications
| Brand | Intel / Altera |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free (-G suffix) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 572‑FBGA (25mm x 25mm, 1.0mm ball pitch) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | EP2AGX45DF25I5G Marking |
| FPGA Family | Arria II GX |
| Logic Elements (LEs) | 42,959 |
| Adaptive Logic Modules (ALMs) | 18,050 |
| Total Embedded RAM (M9K / M144K) | ~3.4 Mbits (3,522,560 bits) |
| Number of Transceivers | 8 Transceiver Channels (up to 3.75 Gbps) |
| Number of User I/Os | 252 I/O Pins |
| Operating Core Voltage (Vcc) | 0.9 V Nominal |
| Speed Grade | 5 (Industrial) |
| Technology Process | 40 nm CMOS |
| Operating Junction Temperature | -40°C to +100°C (TJ) |
Typical Applications
- Wireless & Wireline Telecommunications (CPRI, Remote Radio Heads, Baseband Units)
- Industrial Automation, Motion Control, and Machine Vision Systems
- Video Processing, Broadcast Equipment, and Surveillance Capture Cards
- Medical Imaging, Diagnostic Systems, and Test & Measurement Instruments
- PCI Express Add‑In Cards and High‑Speed Interface Bridging Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix “I5G” mean for EP2AGX45DF25I5G?
A: I=Industrial grade(-40℃~+100℃ junction temp); 5=speed grade(3 is fastest); G=RoHS lead‑free package.
Q2: Difference between EP2AGX45DF25I5G and EP2AGX45DF25C5G?
A: Identical resource, package and speed. I=Industrial wide temperature; C=Commercial (0℃~+85℃ junction temperature).
Q3: What is the transceiver max speed of EP2AGX45DF25I5G?
A: 8 transceiver channels, max 3.75Gbps. It cannot reach 6.375Gbps (that belongs to EP2AGX65 series).
Q4: What is the package dimension of EP2AGX45DF25I5G?
A: 572‑FBGA, size 25mm×25mm, ball pitch 1.0mm.
Q5: Are there pin‑to‑pin compatible alternative models?
A: No direct drop‑in replacement. EP2AGX65DF25 shares same footprint with larger resources. Quartus project & timing must be re‑validated before replacement.
Q6: Can EP2AGX45DF25I3G substitute EP2AGX45DF25I5G?
A: Pin‑compatible, same package & temperature grade. I3G is faster speed grade. Re‑check timing constraints in Quartus.
Q7: Which Quartus II version supports this FPGA?
A: Quartus II 11.0 and above official releases.
Q8: Where to get datasheet, pinout and quotation?
A: Request datasheet, pinout table, stock and volume price via Quick Inquiry form.
