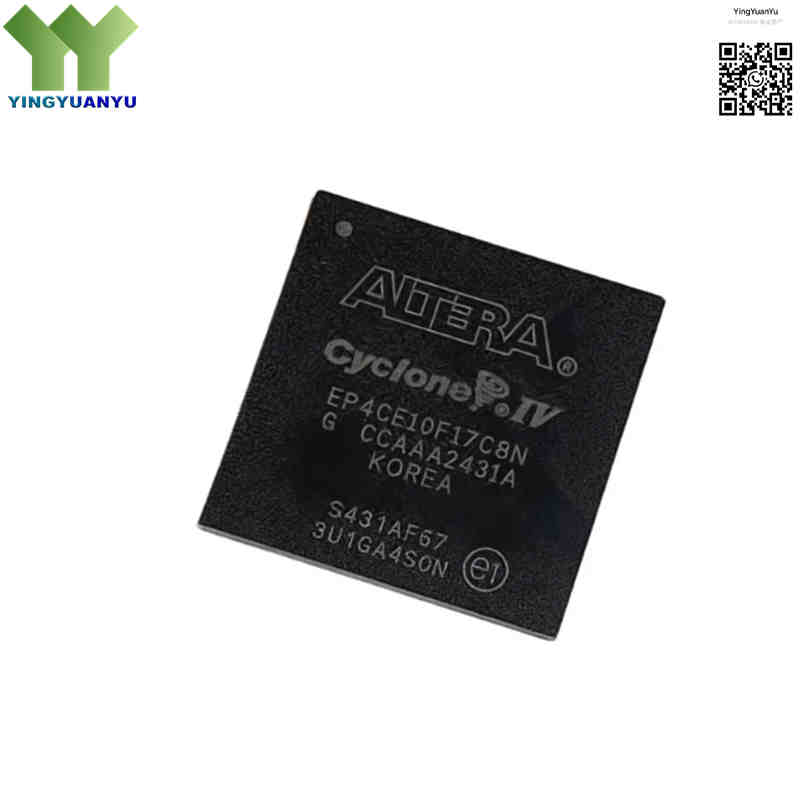

EP4CE10F17C8N
EP4CE10F17C8N
| Part Number | EP4CE10F17C8N |
|---|---|
| Manufacturer | Intel (Formerly Altera) |
| Category | Integrated Circuits (ICs) > FPGAs (Field Programmable Gate Array) |
| Description | Cyclone IV E Low-Power FPGA, 10,320 Logic Elements, 414 Kbits RAM, 23 Multipliers, 179 User I/Os, 256-FBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The EP4CE10F17C8N is a low-cost, power-efficient FPGA from Intel (formerly Altera) Cyclone IV E family, fabricated on a 60nm low-power process. Equipped with 10,320 LEs, 414 Kbits embedded M9K memory and 23 dedicated 18×18 hardware multipliers, it delivers strong parallel computing performance for DSP, system bridging and custom logic control. Supporting up to 179 multi-voltage I/Os with LVDS/LVCMOS signaling, this 256-ball FBGA device fits industrial automation, display controllers, communication interfaces and consumer electronics.
Core Advantages
Optimized Power-to-Cost Architecture
Built on advanced 60nm low-power technology to reduce dynamic and static power, offering cost-effective programmable logic for embedded systems.
Embedded DSP Multipliers & RAM
Integrates 23 dedicated 18×18 multiplier blocks and 414 Kbits M9K memory, supporting on-chip real-time filtering, data buffering and high-speed mathematical algorithms.
Flexible Multi-Standard I/O Connectivity
Up to 179 user I/Os separated into independent voltage banks, compatible with single-ended LVCMOS/LVTTL and differential LVDS, RSDS interfaces.
Comprehensive Development Tool Support
Fully supported by Intel Quartus Prime software, including logic synthesis, auto placement & routing, timing analysis and abundant free IP cores to accelerate hardware development.
Key Specifications
| Brand | Intel / Altera Cyclone IV E Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Package (N Suffix) |
| EDA/CAD Model | Schematic symbol models, 3D CAD step profiles, and 256-FBGA footprint land patterns are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 256-FBGA (17.00 mm × 17.00 mm, 1.00 mm Pitch) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Surface Marking / Silkscreen | EP4CE10F17C8N Marking |
| Logic Elements (LEs) | 10,320 Logic Elements |
| Total RAM Bits | 423,936 Bits (414 Kbits, 46 M9K Blocks) |
| Embedded Multipliers (18×18) | 23 Dedicated 18×18 Multipliers |
| Phase-Locked Loops (PLLs) | 2 On-Chip General-Purpose PLLs |
| Number of User I/Os | Up to 179 Programmable I/O Pins |
| Core Voltage (VCCINT) | 1.15V ~ 1.25V Core Logic Range (Typical 1.2V) |
| Operating Temperature Range | 0°C to +85°C (Commercial Grade Specification) |
| Logic Array Blocks (LABs) | 645 Logic Array Blocks |
| Speed Grade | Grade 8 |
| High-Speed Transceivers | No built-in high-speed serial transceivers, does not support PCIe, SATA |
| Supported Design Software | Intel Quartus Prime, Supports Verilog HDL & VHDL |
Typical Applications
- Industrial automation controllers, motor drive interfaces, and programmable logic controllers (PLCs)
- Video display driving matrices, LED display controllers, and image format bridging modules
- Communication protocol conversion, UART/SPI/I2C expansion hubs, and serial bus bridges
- Medical diagnostics devices, patient monitoring tools, and portable instrument controllers
- Smart energy metering gateways, building automation hubs, and IoT edge nodes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: How to apply samples, datasheets and bulk price quotation?
A: Submit your requirements via our quick inquiry form, including quantity and expected lead time. Our sales team will send quotation and supporting documents quickly.
Q2: What do the individual suffix codes in “EP4CE10F17C8N” designate?
A: “EP4CE” identifies the Cyclone IV E low-power family, “10” indicates ~10K logic elements, “F17” specifies the 256-ball FBGA package (17 × 17 grid), “C8” represents commercial temperature range (0°C to +85°C) with speed grade 8, and “N” confirms lead-free RoHS-compliant construction.
Q3: What software tools are used to design and program the EP4CE10F17C8N?
A: The EP4CE10F17C8N is fully supported by Intel Quartus Prime (Lite Edition, Standard Edition, or Pro Edition). Designers can synthesize hardware using Verilog HDL or VHDL code and generate bitstream configuration files.
Q4: How does the EP4CE10F17C8N load its bitstream configuration file upon startup?
A: As an SRAM-based volatile FPGA, it automatically loads its configuration data upon power-up from an external non-volatile Serial Flash memory IC (such as EPCS16, EPCS64, or EPCQ series) via Active Serial (AS) mode, or from an external controller via JTAG or Passive Serial (PS) mode.
Q5: What power supply rails are required on the PCB to operate the device?
A: The device requires a core supply rail (VCCINT) of 1.2V, a phase-locked loop supply (VCCA) of 2.5V, and VCCIO rails (1.2V to 3.3V) configurable per bank according to system interface requirements.
Q6: Does EP4CE10F17C8N integrate high-speed serial transceivers?
A: It has no built-in high-speed serial transceivers. This chip cannot support PCIe and SATA interfaces, and is suitable for parallel signals and low-speed differential communication.
Q7: What are typical application scenarios of EP4CE10F17C8N?
A: It is widely used in industrial automation, display controllers, multi-channel communication interfaces, digital signal processing hardware and consumer embedded electronic equipment.
