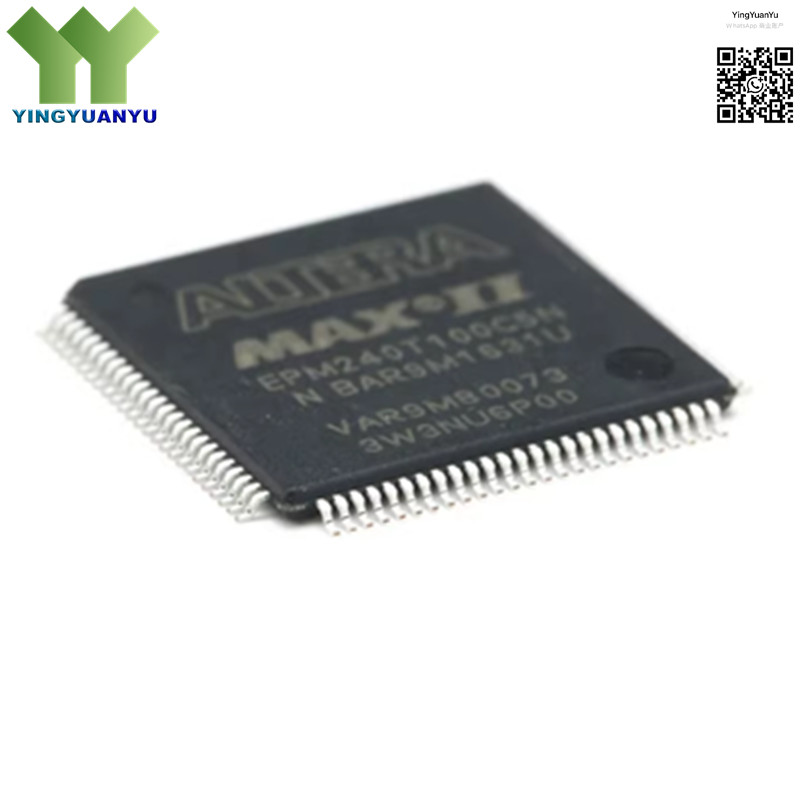

EPM240T100C5N
EPM240T100C5N
| Part Number | EPM240T100C5N |
|---|---|
| Manufacturer | Intel (Altera) |
| Category | CPLD; Complex Programmable Logic Devices |
| Description | MAX II CPLD, 240 Macrocells, 100-Pin TQFP, 3.3V, Commercial Temperature, TQFP-100 Package |
Product Overview
The EPM240T100C5N is a high-performance, low-power Complex Programmable Logic Device (CPLD) from the Intel (Altera) MAX II family. It offers 240 macrocells, 240 user I/O pins, and advanced flash-based architecture for instant-on operation, flexible logic integration, and reliable performance in digital control and interface applications. The device operates at 3.3V core voltage, features fast propagation delay, low power consumption, and in-system programmability (ISP) for easy design updates and configuration. With a compact TQFP-100 surface-mount package, it delivers high logic density and cost-effective integration for embedded systems, industrial controls, and consumer electronics requiring custom logic implementation.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Intel (Altera) |
| Macrocells | 240 |
| User I/O Pins | 240 |
| Core Voltage | 3.3V |
| Package Type | TQFP-100 |
| Speed Grade | 5 |
| Operating Temperature | 0°C to +85°C (Commercial) |
Typical Applications
- Custom Digital Logic Implementation
- Embedded System Control Interfaces
- Industrial Automation & Control
- Consumer Electronics
- Communication Equipment
- Test & Measurement Instruments
- Glue Logic Replacement
- High-Speed Signal Processing
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
